TBUP334-1A20-AB00 SCHNEIDER

TBUP334-1A20-AB00 SCHNEIDER Power module

Product  Description：

The TBUP334-1A20-AB00 is a self-contained, battery-powered field device. It integrates a pressure sensor, a wireless radio, and a long-life battery into a single unit. It operates on the 900 MHz or 2.4 GHz unlicensed frequency bands (depending on the specific region and configuration) and utilizes a proprietary protocol designed for low power consumption and high reliability in obstructed environments. The "TBU" designation typically refers to the Universal Pressure Transmitter series, which provides precise measurements for liquids, gases, and vapors.

Product Parameters

• Measurement Range: This specific model is typically configured for a range of 0 to 5 psi up to 15,000 psi, depending on the internal sensor sub-type (1A20 signifies a specific pressure range and sensor material, often stainless steel or specialized alloys).

• Power Supply: Integrated 3.6 V Lithium battery, designed to last up to 10 years depending on the data transmission frequency.

• Accuracy: Typically ±0.1% of the full-scale range at reference temperature.

• Wireless Frequency: 900 MHz (FHSS) or 2.4 GHz (IEEE 802.15.4), allowing for communication ranges up to 1000 meters (3200 feet) with a clear line of sight.

• Update Rate: User-configurable from 1 second to 1 hour.

• Operating Temperature: Process temperature ranges from -40°C to +85°C (-40°F to +185°F).

• Ingress Protection: IP66/IP67 rated, ensuring the unit is dust-tight and protected against powerful water jets or temporary immersion.

• Certification: Often carries CSA, ATEX, or IECEx certifications for Class I, Div 1 or Zone 0 hazardous locations.

Product Advantages

• Wireless Cost Savings: Eliminates the need for expensive cabling, trenching, conduit, and labor-intensive installation, making it ideal for large-scale industrial sites.

• Long Battery Life: Advanced power management technology ensures the device can operate for a decade without maintenance, reducing the total cost of ownership.

• Rapid Deployment: The integrated design allows for the transmitter to be mounted and commissioned in minutes rather than days.

• Robust Communication: The Accutech radio technology is highly resistant to interference and is capable of penetrating steel structures and industrial obstacles effectively.

• Remote Management: Configuration and diagnostics can be performed remotely via the Accutech Manager software, minimizing the need for technicians to enter hazardous areas.

Important Considerations and Precautions

• Battery Safety: Only use the manufacturer-approved replacement battery kits. Lithium batteries must be handled and disposed of according to local environmental regulations.

• Signal Obstruction: While the wireless signal is robust, large metal tanks or thick concrete walls between the transmitter and the base station can reduce signal strength. Conduct a site survey if signal reliability is a concern.

• Hazardous Area Entry: When installing in explosive atmospheres, ensure that the device's certification (e.g., ATEX/IECEx) matches the specific zone classification of the site.

• Calibration: While the device is factory calibrated, it is recommended to verify the zero point during installation if the orientation of the device changes significantly.

• Antenna Handling: Do not paint or cover the antenna, as this will significantly degrade the wireless transmission range and reliability.

Product Applications

The TBUP334-1A20-AB00 is widely used in industries requiring high-reliability data from remote or difficult-to-access locations.

• Oil and Gas Upstream: Monitoring wellhead pressure, casing pressure, and separator levels in remote oil fields.

• Water and Wastewater: Pressure monitoring in lift stations, pipeline pressure checks, and tank level monitoring.

• Refining and Petrochemical: Monitoring auxiliary systems where adding new wiring to an existing infrastructure would be too expensive or hazardous.

• Mining and Minerals: Tracking pressures in remote slurry lines or monitoring water levels in tailing ponds.

• Power Generation: Monitoring steam pressures or cooling water loops in expansive power plant facilities.

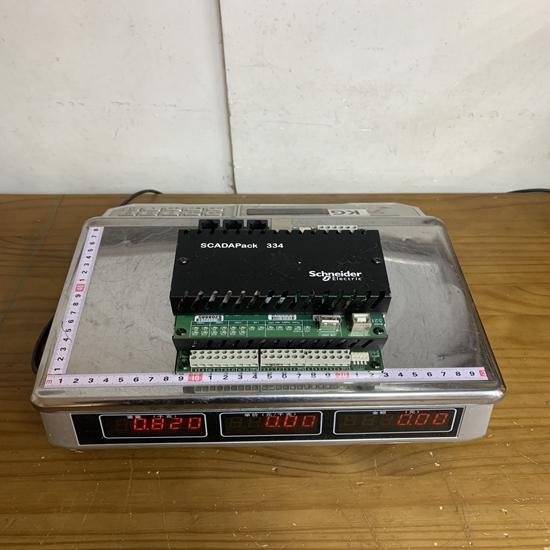

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
