SGMGV-13ADA61 YASKAWA

SGMGV-13ADA61 YASKAWA programmable controller module

Product  Description：

Yaskawa Programmable Controller Modules, part of the distinguished MP (Machine Controller) series, represent a high-performance evolution of the traditional PLC. These modules are specifically engineered for machine automation where high-speed logic and precision motion must coexist. Unlike standard logic controllers, Yaskawa’s programmable modules are built on a "motion-first" architecture, ensuring that ladder logic execution never compromises the synchronization of servo axes. These modules serve as the core intelligence for complex machinery, providing a scalable and modular solution for modern industrial demands.

Product Parameters

The technical profile of Yaskawa Programmable Controller Modules highlights their suitability for high-density, high-speed applications:

• CPU Performance: Features high-speed 32-bit or 64-bit RISC processors capable of executing basic instructions in the nanosecond range.

• Program Memory: Offers expansive internal flash memory for logic programs (typically measured in steps, ranging from 10k to several hundred k) and high-speed RAM for variable data.

• Scan Time: Configurable high-speed scan cycles that can be synchronized with the motion control loop, often reaching sub-millisecond speeds.

• I/O Capacity: Expandable architecture supporting thousands of local and remote digital and analog I/O points through high-speed expansion racks.

• Communication Protocols: Native support for MECHATROLINK (for motion), EtherNet/IP, Modbus TCP, and MEMOBUS/RTU for wide-ranging connectivity.

• Environmental Resilience: Designed to operate in temperatures ranging from 0 to 55 degrees Celsius and humidity up to 95 percent non-condensing.

Product Advantages

Yaskawa programmable modules offer distinct benefits that differentiate them from general-purpose controllers:

• Seamless Motion Integration: Because the programmable module is part of the MP series, it handles motion function blocks and ladder logic within the same memory space, eliminating communication lags between separate PLC and motion cards.

• Deterministic Execution: The system architecture ensures that high-priority tasks, such as safety interrupts and motion synchronization, are executed with zero jitter, regardless of the size of the background logic program.

• Modular Scalability: Users can customize their controller by adding specific modules for temperature control, high-speed counters, or advanced communication, allowing the system to grow with the machine's requirements.

• Global Standard Compliance: Fully compliant with international standards such as CE, UL, and cUL, and programmable using IEC 61131-3 compliant languages including Ladder Diagram and Structured Text.

• Maintenance-Friendly Design: Features hot-swappable I/O capabilities in specific series and integrated self-diagnostics that report errors directly to the HMI or engineering software.

Product Applications

These modules are utilized in sectors where high-speed logic and motion must be perfectly orchestrated:

• Robotic Workcells: Managing the logic for safety interlocks, tool changers, and peripheral sensors while coordinating multi-axis robot movements.

• Semiconductor Processing: Controlling the complex vacuum, chemical delivery, and wafer handling sequences that require absolute precision and timing.

• Packaging Systems: Running high-speed horizontal form-fill-seal machines, cartoning systems, and complex palletizing robots.

• Textile and Fiber Industry: Governing the synchronized winding and tensioning processes where variable speeds must be adjusted instantaneously based on sensor feedback.

• Metalworking and CNC: Acting as the master controller for customized metal bending, laser cutting, and specialized spring-forming machinery.

Important Precautions

To ensure optimal reliability and avoid hardware damage, the following precautions should be strictly followed:

• Backplane Installation: Always ensure that the module is correctly aligned with the backplane connectors. Applying force during insertion can bend pins and cause permanent damage to the base unit or the module.

• Grounding and Noise: Implement a single-point ground system. Programmable modules are sensitive to high-frequency noise from nearby variable frequency drives (VFDs); use noise filters and shielded cables for all sensitive signal lines.

• Power Sequencing: Verify that the power supply module on the rack is correctly rated for the total current draw of all installed modules. Inadequate power can lead to intermittent CPU resets or data corruption.

• Static Electricity: Always handle modules by their plastic edges and wear an anti-static wrist strap during installation. Static discharge can cause latent failures in the high-speed microprocessor.

• Backup Procedures: Regularly back up the program and parameters to an external SD card or PC. While these modules feature non-volatile memory, unexpected electrical surges can occasionally affect stored data.

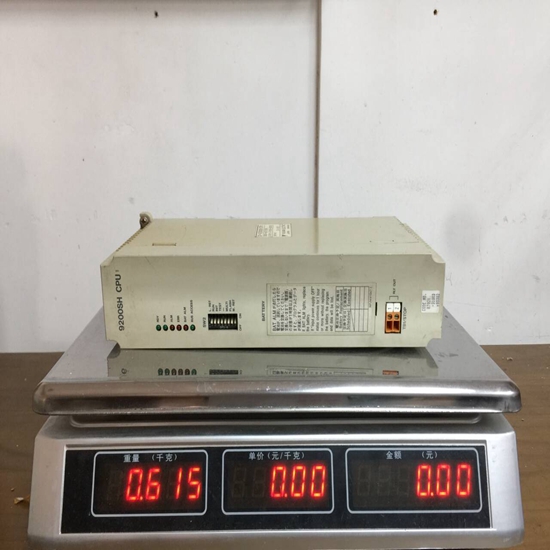

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
