SE4303T03 Emerson

SE4303T03 Emerson Basis unit

Product  Description：

Emerson Base Units, primarily recognized within the DeltaV and Ovation distributed control systems (DCS), serve as the foundational structural and electrical backplane for the entire I/O subsystem. These units provide the physical mounting space for power supplies, controllers, and I/O modules while facilitating the high-speed communication bus and power distribution required for industrial automation. They act as the central nervous system of the cabinet, ensuring that data flows seamlessly between field devices and the process processor.

Product Parameters

The technical characteristics of Emerson Base Units are centered on connectivity density and electrical integrity:

• Slot Capacity: Available in various sizes, commonly featuring 2-slot, 4-slot, or 8-slot horizontal and vertical configurations to fit different cabinet dimensions.

• Backplane Communication: Integrated redundant Ethernet or proprietary high-speed serial buses (such as the DeltaV local bus) for real-time data synchronization.

• Power Distribution: Dual-power input terminals to support redundant 24V DC power feeds, ensuring the system remains operational if one power source fails.

• Addressing Logic: Built-in electronic ID systems that allow the controller to automatically recognize the type and position of any module inserted into a slot.

• Mounting Options: Designed for standard DIN rail mounting or direct panel bolting, with integrated grounding lugs for noise suppression.

• Environmental Rating: Often rated for Class 1 Division 2 or ATEX Zone 2 hazardous areas, with G3 conformal coating as a standard or optional feature.

Product Advantages

Emerson Base Units are engineered to reduce installation complexity and increase system availability:

• Modular Flexibility: The "plug-and-play" nature of the base unit allows for easy system expansion; new modules can be added to empty slots without re-wiring the entire backplane.

• Redundancy by Design: Most base units support redundant controllers and power supplies, providing a "bumpless" transfer of control in the event of a hardware fault.

• Simplified Field Wiring: Features a separate terminal block architecture (Mass Termination) that allows field wiring to be completed and tested before the electronic modules are even installed.

• Robust Mechanical Locking: Includes secure latching mechanisms that prevent modules from vibrating loose in high-impact industrial environments.

• Integrated Diagnostics: The base unit monitors the health of the internal bus and power rails, reporting any bus contention or voltage drops directly to the system software.

Product Applications

These units are the essential building blocks for large-scale control architectures:

• Process Plant Cabinets: Serving as the main housing for I/O modules in refineries, chemical plants, and pharmaceutical facilities.

• Remote I/O Stations: Deployed in field-mounted junction boxes to collect signals from distant sensors and transmit them back to the central control room via fiber optics.

• Turbine Control Systems: Providing the high-speed backplane necessary for critical governor and overspeed protection modules in power plants.

• Subsea and Offshore Platforms: Utilized in compact, ruggedized enclosures where space is limited but high reliability is mandatory.

• Boiler and Furnace Control: Managing the integration of flame scanners, fuel valves, and air dampers in combustion management systems.

Important Precautions

To ensure the safety of the control system and the longevity of the hardware, observe these guidelines:

• Slot Keying: Ensure that the mechanical keys or software addressing for each slot are correctly configured. Inserting a high-voltage module into a low-voltage slot can cause permanent damage to the base unit.

• Grounding Continuity: The base unit must be connected to a high-quality instrument ground. Poor grounding can lead to intermittent communication errors and "ghost" signals in analog modules.

• Current Limits: Do not exceed the total backplane current rating. While each module draws small amounts of power, a fully populated base unit with high-draw modules may require supplementary power injection.

• Dust and Contaminants: During installation, ensure the slot connectors remain covered and clean. Dust or metallic particles inside a connector can cause short circuits or signal degradation.

• Termination Torque: When connecting power leads to the base unit, use a calibrated torque screwdriver. Over-tightening can crack the internal bus bar, while under-tightening leads to resistive heating and potential fire hazards.

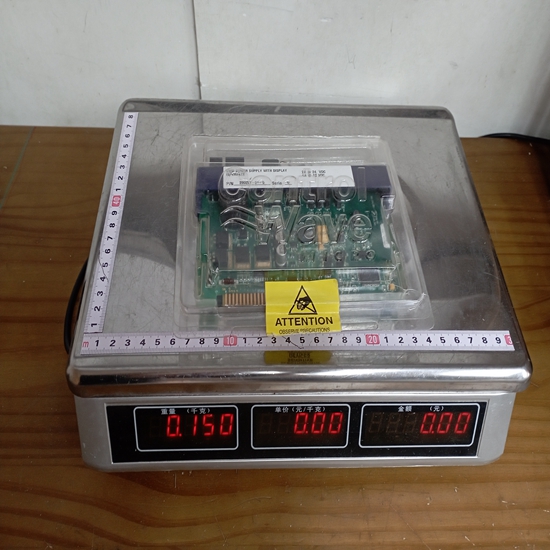

The structure and details of the product：
