Q64PN MITSUBISHI

Q64PN MITSUBISHI analog module

Product  Description：

Mitsubishi Electric offers a comprehensive range of analog modules designed for their various PLC series, including the MELSEC iQ-R, iQ-F (FX5), Q, and L series. These modules bridge the gap between the digital world of the programmable logic controller and the continuous signals of the physical world. They are primarily categorized into Analog-to-Digital (A/D) converters for input, Digital-to-Analog (D/A) converters for output, and specialized temperature control modules.

Product Specifications

While specific values depend on the series (e.g., FX5-4AD vs. Q64AD), the general technical parameters across the product line include:

• Resolution: Typically ranging from 12-bit to 16-bit, with high-accuracy models providing 1 part in 32,000 or even higher.

• Channel Density: Available in 2, 4, 8, or 16-channel configurations per module.

• Input/Output Ranges: Supports standard voltage ranges (0–10V, 1–5V, -10 to 10V) and current ranges (0–20mA, 4–20mA).

• Conversion Speed: High-speed modules can achieve conversion times as fast as 80 microseconds per channel or less.

• Accuracy: Generally maintains a precision of ±0.1% to ±0.3% at ambient temperature.

• Isolation: Many modules feature channel-to-channel or channel-to-bus isolation using photocouplers to prevent noise interference.

Product Advantages

• High Performance: Fast conversion rates and high resolution ensure precise control for demanding applications like high-speed motion or delicate chemical mixing.

• Enhanced Reliability: Built-in features such as digital filtering, scaling, and peak value holding reduce the programming load on the CPU and improve signal stability.

• Ease of Integration: Seamlessly compatible with GX Works2 or GX Works3 software, allowing for easy parameter configuration without the need for complex "From/To" instructions in many modern series.

• Cost Efficiency: Specialized modules (like the channel-isolated versions) eliminate the need for external isolation amplifiers, reducing both hardware costs and cabinet space.

• Versatility: A single module often supports multiple signal types (voltage or current), allowing for flexible inventory management and system design.

Precautions for Use

• Wiring Safety: Always shut off the external power supply before installation or wiring to prevent electric shock or module damage.

• Noise Mitigation: Keep analog signal cables at least 100mm away from main circuit lines or high-voltage power cables to avoid electromagnetic interference.

• Grounding: Ensure proper grounding of the FG (Frame Ground) and AG (Analog Ground) terminals. Use a dedicated Class-D ground (100 ohms or less) for the best results.

• Terminal Torque: Tighten terminal screws within the manufacturer’s specified torque range. Overtightening can damage the module, while undertightening can lead to short circuits or fire.

• Static Protection: Always touch a grounded metal object to discharge static electricity from your body before handling the module to prevent damage to sensitive electronic components.

• Environment: Avoid installing modules in areas with excessive dust, oily smoke, or corrosive gases, as these can lead to premature failure.

Product Applications

• Process Control: Monitoring and regulating flow rates, pressure levels, and liquid levels in water treatment or chemical processing plants.

• Motion and Speed Control: Providing reference signals to Variable Frequency Drives (VFDs) or servo amplifiers to control motor speed and acceleration.

• Temperature Regulation: Interfacing with thermocouples or RTDs to manage heaters or cooling systems in plastic injection molding and food processing.

• Environmental Monitoring: Recording data from humidity, CO2, or light sensors in building automation and HVAC systems.

• Feedback Systems: Using position sensors or load cells to provide real-time feedback for tension control in paper mills or textile manufacturing.

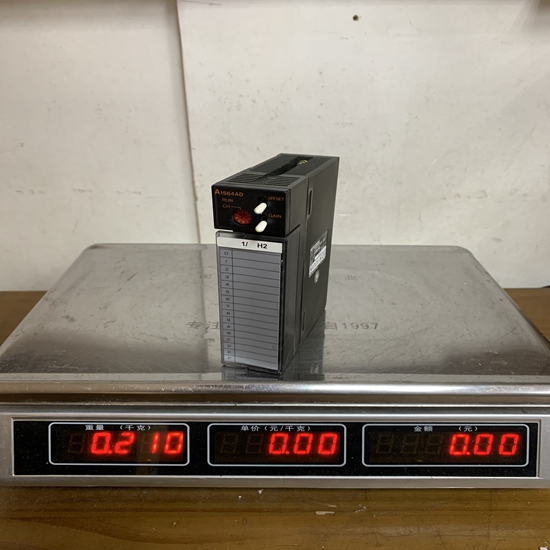

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
