PTQ-PDPMV1 PROSOFT programmable controller module
Product Description：
PROSOFT programmable controller modules provide advanced communication and application-specific functionalities within a PLC chassis. Unlike standard I/O modules, PROSOFT modules are often equipped with their own processors and memory, allowing them to handle complex protocol conversions, data manipulation, and even run user-defined applications (like BASIC or 'C' programs for specific tasks). This offloads communication overhead from the main PLC processor, enhancing overall system performance and flexibility.
Key Functions
- Protocol Conversion and Interoperability: The primary function is to allow PLCs to communicate with devices using different industrial protocols (e.g., Modbus, PROFIBUS, PROFINET, EtherNet/IP, OPC UA, BACnet, DF1, DNP3, IEC 60870-5-101/104).
- Data Concentration and Management: They can gather data from multiple field devices, process it, and then present it to the host PLC in a consolidated format.
- Application-Specific Processing: Some modules are programmable (e.g., Application Development Modules) allowing users to write custom code for specialized tasks like bar code scanner interfacing, weigh scale integration, or complex mathematical calculations.
- Remote Connectivity: Facilitate secure remote access and data transfer over various mediums, including industrial cellular gateways for remote sites.
- Legacy System Migration: Provide solutions for integrating older, legacy systems with modern control architectures.
Product Parameters (Typical)
Parameters vary significantly based on the module's specific function and target PLC platform.
- Supported PLC Platforms: ControlLogix, CompactLogix, SLC 500, PLC-5, MicroLogix.
- Communication Protocols: Ethernet/IP, Modbus TCP/IP, Modbus Serial (RTU/ASCII), PROFIBUS DP Master/Slave, PROFINET Controller/Device, OPC UA, DNP3, IEC 60870-5-101/104, DF1, etc.
- Number of Ports: Typically 1 to 4 communication ports (e.g., RJ45 Ethernet, DB9/RJ45 Serial for RS-232/485/422).
- Data Transfer Capacity: Up to thousands of words/registers of input/output data (e.g., 4096 bytes of I/O data for PROFINET, 10,000 words for Modbus TCP/IP).
- Data Update Rates: Often high-speed, meeting demanding real-time application requirements.
- Power Consumption: Varies, typically in the range of 5-15 Watts.
- Operating Temperature: Wide industrial range (e.g., 0°C to 60°C or -30°C to +70°C).
- Isolation: Often include electrical isolation for ports to protect against ground loops and noise.
- Configuration Software: Typically configured using ProSoft Configuration Builder (PCB) software, which offers a graphical interface for setting up parameters and monitoring status.
- Memory: For programmable modules, RAM memory up to tens of kilobytes (e.g., 24064 bytes for BASIC modules).
- Dimensions/Form Factor: Single-slot or multi-slot modules designed to fit into standard PLC chassis.
Product Advantages
- Enhanced Connectivity: Unlocks extensive connectivity options for PLCs, allowing them to communicate with a vast array of devices and networks from different vendors.
- Improved Performance: Offloads communication processing from the main PLC CPU, freeing up resources for critical control tasks and improving overall system responsiveness.
- Cost-Effective Integration: Provides a simpler and often more cost-effective solution for integrating disparate systems compared to standalone gateways or custom development.
- Reduced Development Time: Comes with pre-built profiles, Add-On Instructions (AOIs), and user-defined data types (UDTs) for quick and easy integration into common PLC programming environments.
- Flexibility and Scalability: Supports various protocols and allows for easy expansion or modification of communication networks as system requirements evolve.
- Reliability and Support: Designed for rugged industrial environments with robust hardware and backed by ProSoft's dedicated technical support.
- Migration Path: Offers solutions for transitioning legacy serial devices or protocols to modern Ethernet-based networks.
Precautions
- Compatibility: Always verify that the specific PROSOFT module is compatible with your PLC's series, firmware version, and the I/O rack.
- Configuration Software: Ensure you use the correct version of ProSoft Configuration Builder (PCB) and any required add-on profiles for your module and PLC programming environment.
- Power Requirements: Confirm the PLC chassis and power supply can adequately meet the module's power consumption.
- Wiring and Cabling: Follow all wiring diagrams and best practices to prevent electrical noise, signal degradation, and potential damage. Use appropriate shielded cables where recommended.
- Environmental Conditions: Install the module within the specified operating temperature and humidity ranges to ensure optimal performance and longevity.
- Firmware Updates: Regularly check for and apply necessary firmware updates to the module to ensure optimal performance, bug fixes, and security enhancements.
- ESD Protection: Always observe proper Electrostatic Discharge (ESD) handling procedures when installing or removing modules to prevent damage to sensitive electronic components.
- Hazardous Locations: If operating in hazardous environments, ensure the module carries the necessary certifications (e.g., Class I, Division 2) and follow all associated installation guidelines.
Product Applications
PROSOFT programmable controller modules are widely used across various industrial sectors where complex communication and integration are critical.
- Oil & Gas: Connecting PLCs to flow computers, remote terminal units (RTUs), and SCADA systems over serial or Ethernet protocols.
- Water & Wastewater: Integrating pump stations, sensors, and control valves with central control systems.
- Manufacturing & Automotive: Enabling communication between various robotics, vision systems, barcode scanners, and different brands of PLCs on production lines.
- Power Generation: Interfacing with protective relays, intelligent electronic devices (IEDs), and plant-wide control systems using protocols like Modbus or IEC 60870-5.
- Building Automation: Bridging industrial control systems with building management systems (BMS) using protocols like BACnet.
- Material Handling: Coordinating data flow between conveyors, sortation systems, and warehouse management systems.
- Food & Beverage: Connecting processing equipment to central control systems for recipe management and data logging.

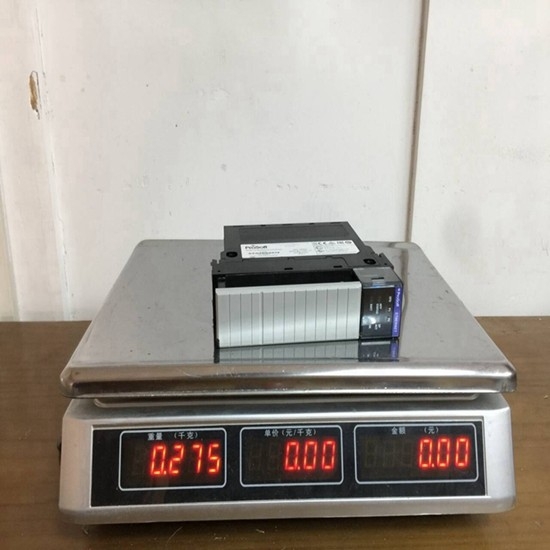

The structure and details of the product：
Our services：
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Warranty: one year
Please make an inquiry for more models：
