Phoenix QUINT-PS-100-240 AC/24DC/10

Phoenix QUINT-PS-100-240 AC/24DC/10 Relay Input Module

Product  Description：

Phoenix Contact Relay Input Modules are high-quality industrial interfacing components designed to isolate, match, and condition discrete signals before they enter a Programmable Logic Controller (PLC) or other supervisory control systems. These modules act as an electromechanical buffer, utilizing physical relay contacts to convert varying external field voltages into clean, unified logic signals. They are particularly vital for protecting sensitive control systems from harsh field conditions and electrical noise.

Product Parameters

The technical configuration of a Phoenix Contact Relay Input Module focuses on electrical isolation, contact durability, and input-to-output signal adaptation:

• Input Signal Voltages: Available in wide-ranging nominal variations including 24V DC, 110V AC, and 230V AC to match diverse field instrument standards.

• Contact Configuration: Features standard industrial contact options such as Single-Pole Double-Throw (SPDT/1 PDT) or Double-Pole Double-Throw (DPDT/2 PDT).

• Minimum Switching Current: Optimized with specialized contact materials, such as gold-plated silver alloys, capable of reliably switching currents as low as 1mA at 100mV.

• Maximum Switching Capacity: Engineered to handle up to 6A or 10A of continuous load on the output side, depending on the specific module shell width.

• Galvanic Isolation Rating: Provides high electrical isolation, typically up to 4kV AC for 1 minute between the input coil and the output contact circuits.

• Response and Release Time: Features fast mechanical action, with typical turn-on response times under 7 milliseconds and release times under 15 milliseconds.

Product Advantages

Phoenix Contact Relay Input Modules offer substantial benefits regarding system safety, spatial efficiency, and longevity:

• Complete Electrical Isolation: By separating the field-side circuit from the controller-side circuit via a physical air gap and magnetic induction, it prevents high-voltage surges from damaging expensive PLC CPU racks.

• Ultra-Slim Spatial Design: Utilizing the highly compact PLC-INTERFACE housing design, these modules can be as slim as 6.2mm wide, saving up to 80 percent of the space on the DIN rail compared to traditional industrial relays.

• Gold-Plated Double Contacts: The optional gold plating layer prevents contact oxidation over time, ensuring flawless low-power signaling and high-frequency switching reliability.

• Bridgeable System Connections: Employs plug-in bridges and system cabling adapters that eliminate the need for manual point-to-point loop wiring for common potential distributions.

• Clear Visual Diagnostics: Integrated high-visibility status LEDs display the exact actuation state of the relay input coil instantly, allowing for rapid loop checks and troubleshooting.

Product Applications

These relay modules are widely deployed across infrastructure and manufacturing environments to safeguard control signals:

• Factory Automation: Interfacing field-mounted proximity sensors, mechanical safety switches, and emergency pushbuttons with centralized control cabinets.

• Process Engineering: Isolating discrete signals coming from explosive or high-temperature hazardous areas, such as chemical processing plants and oil pipelines.

• Renewable Energy Installations: Linking wind turbine pitch monitors and solar tracker limit sensors to central wind/solar farm monitoring stations.

• Building Automation: Managing input signals from fire alarm panels, security access doors, and HVAC occupancy sensors into building management systems (BMS).

• Water Utility Infrastructure: Transmitting discrete pump statuses, valve positions, and high/low level switch alarms across wastewater treatment networks.

Important Precautions

To preserve mechanical integrity and guarantee operator safety, the following operational guidelines must be strictly observed:

• Contact Material Preservation: If a module features gold-plated contacts and is inadvertently used to switch a high-power load, the gold layer will destroy itself. After this occurs, the relay can no longer be reliably used for low-power or micro-current signal inputs.

• Inductive Load Protection: When using the relay outputs to drive inductive field loads such as small solenoids or magnetic contactors, external spark suppression or varistors must be installed to prevent contact arcing and premature welding.

• DIN Rail Grounding: Ensure that the DIN rail upon which the modules are mounted is properly connected to a low-impedance protective earth ground to maintain the efficacy of the shielding system.

• Continuous Current Limits: Do not exceed the cumulative maximum current rating specified for adjacent modules when utilizing plug-in terminal bridges. Exceeding these limits can cause local overheating of the bridge bar.

• Correct Wire Insertion: When using push-in termination models, ensure the wire conductor is stripped to the exact length specified by the manufacturer and fully inserted into the terminal cage to prevent high-resistance connection faults.

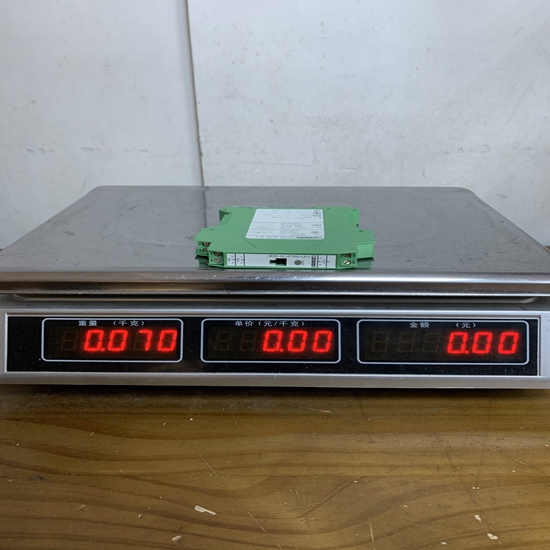

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
