Phoenix 2903228 ST-OV3-24DC

Phoenix 2903228 ST-OV3-24DC Control Unit

Product  Description：

Phoenix Contact Control Units, principally represented by the PLCnext Control series and Inline controllers, are high-performance computing platforms engineered for modern industrial automation and Edge computing. These units combine the robust, deterministic performance of a traditional programmable logic controller (PLC) with the openness and flexibility of Linux-based smart devices. This architecture allows developers to use traditional IEC 61131-3 programming languages alongside high-level languages like C++, Python, and C#, facilitating seamless integration into the Industrial Internet of Things (IIoT).

Product Parameters

The technical configuration of a Phoenix Contact Control Unit highlights its processing capabilities, memory, and advanced network compatibility:

• Processor Architecture: Equipped with high-efficiency Arm Cortex or Intel processors capable of handling simultaneous real-time control tasks and high-level applications.

• Operating System: Built on a real-time Linux kernel (Yocto-based) that isolates deterministic control tasks from background software operations.

• Memory Capacity: Features substantial onboard eMMC flash memory (up to 4GB or more) for data logging, alongside high-speed DDR RAM for program execution.

• Communication Interfaces: Integrated with dual or triple independent Ethernet ports supporting PROFINET, Modbus TCP, OPC UA, and MQTT protocols.

• Local I/O Expansion: Supports direct backplane connection to specialized Axioline F or Inline I/O modules via a high-speed local bus.

• Power Supply: Operates on a standard industrial 24V DC input voltage with built-in surge and reverse polarity protection.

Product Advantages

Phoenix Contact Control Units provide distinct operational advantages for digitalization and adaptive manufacturing:

• Ultimate Programming Freedom: Supports standard PLC programming while allowing IT developers to deploy open-source software, Docker containers, and custom applications simultaneously.

• Native Cloud Integration: Built-in support for major cloud platforms such as Proficloud, AWS, and Microsoft Azure simplifies the secure transmission of factory data.

• High-Speed Local Bus: The underlying backplane communication features extremely low latency, enabling the synchronized updating of hundreds of I/O points within microseconds.

• Enhanced Cybersecurity: Engineered in accordance with the IEC 62443 security standard, featuring an integrated trusted platform module (TPM), secure boot capabilities, and user authentication.

• Future-Proof Scalability: The open Linux environment permits easy installation of software updates, patches, and functional applications via the PLCnext Store ecosystem.

Product Applications

These control units serve as the central processing engine across various modern infrastructural and manufacturing networks:

• Smart Grid and Renewable Energy: Managing data aggregation, grid synchronization, and remote monitoring in solar farms and wind power substations.

• Infrastructure and Maritime: Controlling complex automation systems in traffic tunnels, wastewater treatment facilities, and onboard commercial vessels.

• Digital Machine Building: Providing the core logic for specialized packaging machinery, conveying equipment, and automated assembly systems requiring IT-OT convergence.

• Building Automation: Functioning as an intelligent IoT gateway that coordinates HVAC, lighting, and security systems within large commercial facilities.

• Process Data Analytics: Operating as an Edge controller that collects raw sensor data, filters it locally using custom algorithms, and forwards key metrics to enterprise ERP systems.

Important Precautions

To preserve the operational safety and reliability of the control unit, technicians must adhere to these directives:

• Firmware Alignment: Always ensure that the project configuration software version matches the firmware version installed on the control unit to prevent compilation errors or deployment failures.

• Linux Security Practices: Because the unit runs an open Linux operating system, change the default administrator passwords immediately upon commissioning to protect against unauthorized network entry.

• Backplane Connection Security: Turn off all power sources before mounting the control unit onto a DIN rail or connecting lateral I/O modules. Plugging components into a live local bus can permanently damage the electronic contacts.

• Functional Earthing: Connect the DIN rail and the unit’s grounding terminal to a low-impedance protective earth ground to effectively dissipate ambient electromagnetic noise.

• Heat Dissipation Clearance: Mount the unit vertically according to the official manual instructions. Maintain the recommended clearance distances at the top and bottom of the unit to ensure adequate air convection and prevent thermal shutdown.

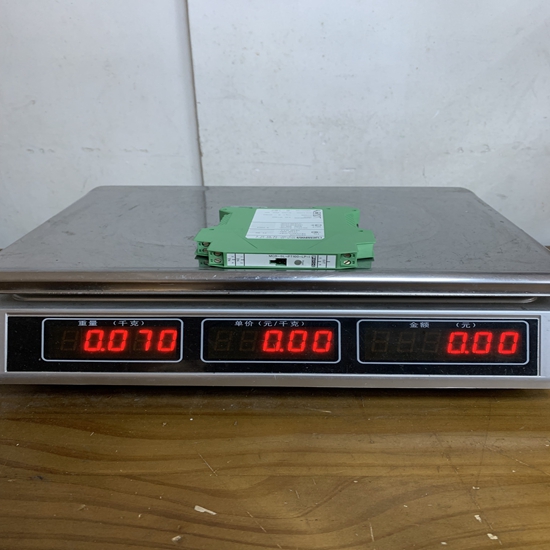

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
