Phoenix 2866750

Phoenix 2866750 analog module

Product  Description：

Phoenix Contact analog modules, primarily within the Inline and Axioline F I/O systems, are high-performance industrial automation components engineered to handle precise variable signals. These modules serve as the interface between analog field devices—such as temperature sensors, flow meters, and pressure transducers—and the central control network. They convert continuous electrical signals into digital values for the PLC, or conversely, transform digital controller commands into precise analog outputs to regulate actuators.

Product Parameters

The technical parameters of Phoenix Contact analog modules are designed to support high-accuracy measurements across diverse signal types:

• Input and Output Channels: Available in various densities, typically offering 2, 4, or 8 channels per module to accommodate different system layouts.

• Signal Type Flexibility: Supports standard current signals such as 0-20 mA and 4-20 mA, as well as voltage signals including 0-10 V and -10 V to +10 V.

• Dedicated Sensor Support: Specialized variants provide direct connection for Resistance Temperature Detectors (RTDs like Pt100) and Thermocouples (Types J, K, T, etc.) with integrated cold-junction compensation.

• Digital Resolution: High-precision Analog-to-Digital (A/D) and Digital-to-Analog (D/A) conversion, generally featuring 16-bit resolution for superior granularity.

• Update and Transmission Speed: Fast bus update times, often under 1 millisecond for the entire module, ensuring real-time responsive control.

• Electrical Isolation: Robust galvanic isolation between the individual channels, the internal logic bus, and the auxiliary power supply, typically rated up to 500 V AC.

Product Advantages

Phoenix Contact analog modules stand out in industrial networks due to their innovative design and reliability:

• Tool-Free Installation: Utilizing Push-In technology, field wiring can be connected quickly and securely without tools, drastically reducing installation time and eliminating the risk of loose screw terminals.

• High Measurement Accuracy: Exceptional linearity and minimal temperature drift ensure that measured values remain highly stable and accurate across the entire operating temperature range.

• Advanced Diagnostic Functions: Integrated monitoring systems detect open circuits (wire-break), short circuits, and out-of-range values, immediately reporting faults via the bus system to minimize downtime.

• Space-Saving Form Factor: The ultra-slim housing design reduces the required width on the DIN rail, allowing for highly dense control cabinet layouts.

• Network Independence: Designed to integrate seamlessly with various open bus systems and industrial Ethernet networks, including Profinet, EtherCAT, Modbus TCP, and Ethernet/IP via appropriate bus couplers.

Product Applications

These modules are used globally in processes where continuous monitoring and precision regulation are essential:

• Chemical and Process Automation: Monitoring pressure, level, and flow transmitters in chemical dosing and liquid mixing systems.

• Thermal Processing: Regulating temperatures in industrial furnaces, kilns, and environmental test chambers using RTD and thermocouple inputs.

• Machinery and Machine Tools: Tracking hydraulic pressure and valve positions in heavy stamping presses and injection molding machines.

• Water and Energy Management: Measuring water quality variables, flow rates, and valve positions in municipal treatment plants and pumping stations.

• Factory Automation and Packaging: Interfacing with distance-measuring laser sensors and load cells to control tension and product alignment on fast-moving conveyor lines.

Important Precautions

To preserve signal integrity and shield the hardware from damage, the following operational precautions are mandatory:

• Shielding and Noise Mitigation: Always use shielded twisted-pair cables for analog signal lines. Connect the cable shield directly to the designated shield termination points on the module to prevent electromagnetic interference from corrupting data.

• Signal Cable Routing: Separate analog signal cables from high-voltage AC lines, motor power cords, and variable frequency drive (VFD) outputs by a minimum physical distance to prevent inductive noise coupling.

• Ground Loop Prevention: Pay close attention to the grounding concept of the sensor and the module. Avoid connecting the cable shield at both ends if a potential difference exists between the field grounds, as this creates ground loops that distort measurements.

• Proper Terminal Removal: When performing maintenance, use the integrated release latches to remove the connector blocks rather than pulling directly on the field wires, preventing physical damage to the module housing.

• Environmental Limitations: Ensure the control cabinet provides adequate protection against conductive dust, moisture, and corrosive atmospheres, as contamination can degrade the high-impedance inputs of the analog circuits.

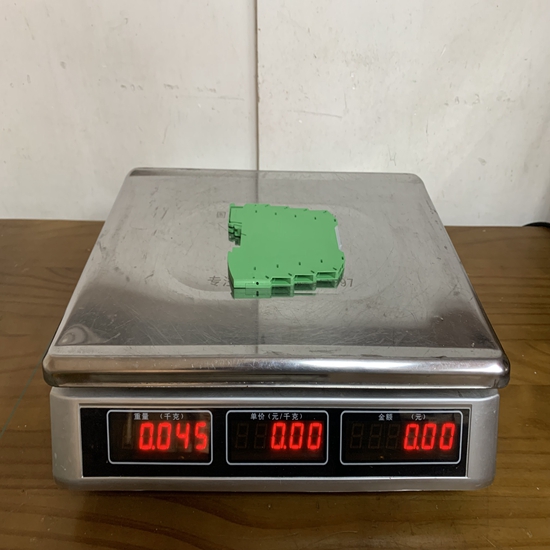

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
