Phoenix 1683455

Phoenix 1683455 controller module

Product  Description：

Phoenix Contact Controller Modules, primarily represented by the PLCnext Control and Inline Controller series, are highly advanced automation devices designed to serve as the core processor for modern machine building and industrial internet of things (IIoT) applications. These modules combine the rugged reliability of a traditional Programmable Logic Controller (PLC) with the flexibility and open ecosystem of Linux-based smart gateways, allowing engineers to program using standard IEC 61131-3 languages alongside high-level languages like C++, C#, and Python.

Product Parameters

The technical composition of a Phoenix Contact Controller Module is defined by high-performance data processing and diverse networking interfaces:

• Processor Architecture: Features industrial-grade ARM Cortex or Intel processors capable of handling intense logic calculations and real-time execution.

• Operating System: Built on a real-time Linux kernel (Yocto-based) that isolates deterministic control tasks from non-real-time communication processes.

• Memory Capacity: Equipped with substantial internal flash memory (often up to 1GB or more) and high-speed RAM for data logging, recipe management, and local web servers, expandable via SD cards.

• Communication Protocols: Integrated native support for PROFINET, Modbus TCP, OPC UA, EtherCAT, and cloud connectivity protocols such as MQTT and AMQP.

• Input/Output Capacity: Expandable local backplane supporting the direct connection of dozens of digital, analog, and functional I/O modules, with extensive remote I/O management via industrial networks.

• Power Requirements: Standard industrial 24V DC input with built-in protection against reverse polarity and transient voltage surges.

Product Advantages

Phoenix Contact Controller Modules offer distinct competitive advantages by bridging the gap between operational technology (OT) and information technology (IT):

• Open Programming Freedom: Supports simultaneous execution of traditional ladder logic and modern high-level code, enabling developers from different backgrounds to work on the same controller.

• Native Cloud and IIoT Integration: Features built-in software tools that allow direct, secure connection to cloud platforms like Proficloud, AWS, or Azure without requiring additional hardware gateways.

• Cyber Security by Design: Developed in compliance with the IEC 62443 standard, featuring integrated user authentication, certificate management, and a built-in firewall to protect factory assets.

• Open Source App Store Compatibility: Access to the PLCnext Store allows users to download pre-configured software apps, runtime extensions, and function blocks to quickly expand machine capabilities.

• Robust Mechanical Design: Designed for tool-free DIN rail mounting with vibration-resistant push-in connection technology for reliable wiring in harsh industrial conditions.

Product Applications

These controller modules are deployed in forward-thinking automation scenarios that require both logic control and high-level data processing:

• Smart Infrastructure and Microgrids: Managing renewable energy distribution, monitoring solar inverters, and regulating power flow in smart grid applications.

• Water and Wastewater Management: Coordinating distributed pumping stations, flow measurement devices, and chemical treatment sequences via secure remote communication.

• Automotive and Assembly Lines: Acting as the central processor for intelligent transport systems, automated guided vehicles (AGVs), and multi-axis assembly workstations.

• Building Automation and HVAC: Controlling large-scale climate control, lighting systems, and energy management metrics across commercial complexes through OPC UA networks.

• Marine and Wind Energy: Operating reliably on wind turbine pitch control systems and shipboard automation where extreme temperature swings and high vibrations are common.

Important Precautions

To maintain operational safety and prevent system corruption, the following guidelines must be observed:

• SD Card Utilization: Only use official Phoenix Contact industrial-grade SD cards for program storage and memory expansion. Commercial-grade cards lack the necessary write-endurance and can lead to boot failures or data corruption.

• Proper Separation of Networks: When utilizing multiple Ethernet ports, keep the deterministic fieldbus network (e.g., PROFINET) physically or logically isolated from the public IT/Internet network to ensure optimal timing and security.

• Power Off Before Expansion: Always turn off the main 24V DC power supply before attaching or removing expansion I/O modules from the controller’s local bus to avoid electrical arcing or damage to the backplane ASIC.

• Security Configuration: Do not leave the controller operating with factory-default passwords. Change all administrative passwords during initial commissioning to prevent unauthorized access via the web-based management interface.

• Shielding and Earthing: Ensure the DIN rail is properly bonded to the functional earth ground of the control enclosure. All communication cables must feature shielded connectors securely grounded to prevent electromagnetic noise from causing CPU resets.

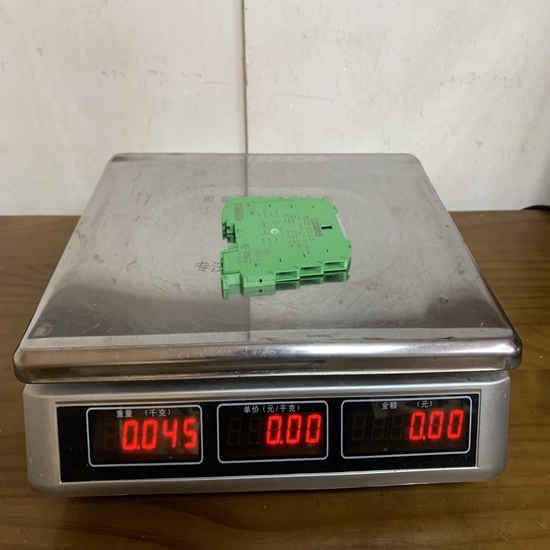

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
