MRY01B-2 JANCD-MRY01B-2 YASKAWA

MRY01B-2 JANCD-MRY01B-2 YASKAWA Communication Processor

Product  Description：

Yaskawa Communication Processors are specialized interface modules designed to bridge Yaskawa’s machine controllers, such as the MP series, with a vast array of industrial networks. These processors act as dedicated gateways that handle the heavy lifting of network protocol management, ensuring that the main CPU can focus entirely on high-speed motion control and logic execution. They are essential for integrating Yaskawa systems into multi-vendor environments, allowing for seamless data exchange between robots, PLCs, HMIs, and enterprise-level management systems.

Product Parameters

The technical profile of a Yaskawa Communication Processor is defined by its throughput, protocol versatility, and hardware connectivity:

• Network Compatibility: Supports a wide range of open and proprietary standards including EtherNet/IP, Modbus TCP/RTU, PROFINET, DeviceNet, PROFIBUS-DP, and EtherCAT.

• Communication Speed: High-performance Ethernet modules support 10/100 Mbps or 1 Gbps, while fieldbus modules operate at the specific baud rates defined by their respective standards (e.g., up to 12 Mbps for PROFIBUS).

• Port Configuration: Typically features one or two RJ45 ports for Ethernet-based modules or specialized connectors like D-sub 9-pin for serial-based fieldbus communication.

• Maximum Data Size: Capable of handling large data registers, often supporting up to 4096 words per message depending on the protocol and module model.

• Power Consumption: Highly efficient design, usually drawing between 200mA and 500mA from the controller's internal power supply.

• Connection Capacity: Ethernet-based units often support multiple simultaneous connections (sockets), allowing for concurrent communication with several external devices.

Product Advantages

Yaskawa Communication Processors offer several strategic benefits for modern industrial automation:

• Reduced CPU Loading: By managing the protocol stack, error checking, and packet framing internally, these processors prevent network traffic from slowing down the controller's motion cycles.

• True Plug-and-Play Integration: Yaskawa’s engineering software, MPE720, provides pre-configured communication settings and function blocks, making it easy to establish links without deep knowledge of network protocols.

• High Reliability: Designed to withstand the electrical noise and physical vibrations of a factory floor, ensuring consistent data flow even in high-interference environments.

• Scalability and Versatility: Multiple communication processors can often be installed on a single rack, allowing one machine controller to act as a hub for several different network types simultaneously.

• Enhanced Diagnostic Capabilities: Built-in status LEDs and software-accessible diagnostic registers provide real-time information on network health, link status, and data collisions.

Product Applications

These processors are vital in any application where the Yaskawa controller must interact with a broader ecosystem:

• Enterprise Integration: Connecting machine controllers to SCADA or Manufacturing Execution Systems (MES) for real-time production monitoring and data logging.

• Robotic Cell Coordination: Interfacing Yaskawa MP-series controllers with third-party robot controllers or vision systems to synchronize complex assembly tasks.

• Multi-Vendor Production Lines: Bridging the gap between Yaskawa motion systems and other PLCs (such as those from Siemens, Rockwell, or Mitsubishi) in a unified assembly line.

• Remote Monitoring and Maintenance: Enabling secure remote access to the controller via Ethernet for program updates, parameter tuning, and troubleshooting from a central office.

• Smart Building Management: Using Modbus or BACnet modules to integrate industrial-grade HVAC or elevator control systems into a building's central management platform.

Important Precautions

To ensure long-term stability and network integrity, the following guidelines must be adhered to:

• Network Security: When connecting to an Ethernet network that has internet access, always use a secure router or firewall. Do not connect the communication processor directly to a public network.

• Cable Specifications: Use only the cable types specified for the particular protocol (e.g., Category 5e shielded for Ethernet, or specific impedance cables for PROFIBUS). Substandard cabling is the leading cause of intermittent communication failure.

• Address Management: Carefully document and assign unique station numbers or IP addresses. Duplicate addresses on a network will cause significant communication conflicts and system downtime.

• Electrical Isolation: Ensure that the communication cable shields are properly grounded. In environments with significant ground potential differences between machines, consider using optical isolators to protect the processor.

• Firmware Matching: Before adding a new communication processor to an existing rack, verify that the controller's CPU firmware is compatible with the module to ensure all communication features are fully supported.

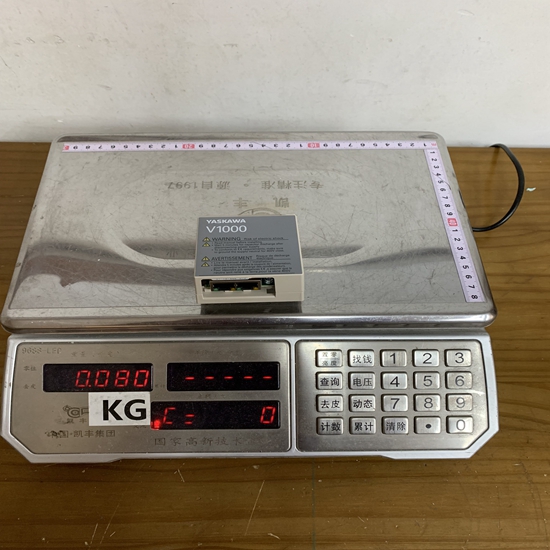

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
