M65W108TN1 1SLM006500S1211 ABB Bailey

M65W108TN1 1SLM006500S1211 ABB Bailey Analog Output Modules

Product  Description：

• • • • • • The Mistral65 series represents an evolution in distribution boards, focusing on ease of installation and aesthetic integration. The 1SLM006500S1211 model is a single-row enclosure capable of housing up to 8 modules. It is constructed from high-quality thermoplastic material that is halogen-free, making it an environmentally friendly choice for modern infrastructure. The unit is designed with a symmetrical structure, which means the front door can be easily reversed to open from either the left or the right, providing significant flexibility during on-site installation.

            Product Parameters

            • Model Series: Mistral65

            • Type of Enclosure: Consumer Unit (Empty)

            • Mounting Type: Surface mounting

            • Number of Rows: 1

            • Width in Number of Modular Spacings: 8 modules

            • Degree of Protection: IP65 (Total protection against dust and protection against low-pressure water jets)

            • Impact Resistance: IK09 (Protected against 10 joules of impact)

            • Enclosure Material: Thermoplastic (Halogen-free)

            • Door Type: Transparent (Blue tint)

            • Color: Grey (RAL 7035)

            • Rated Current ($I_n$): $63 \text{ A}$

            • Glow Wire Test: $650 \text{°C}$

            • Dimensions: Approximately $232 \text{ mm}$ (Width) x $250 \text{ mm}$ (Height) x $155 \text{ mm}$ (Depth)

            Product Advantages

            The ABB Mistral65 series offers several distinct advantages for electrical contractors and end-users. The IP65 rating ensures that the internal electrical components are shielded from harsh environmental factors, extending the lifespan of the breakers and sensitive equipment. The IK09 impact rating makes it exceptionally durable in high-traffic or industrial areas where physical contact is likely.

            Inside the enclosure, ABB has integrated clever design features such as a removable frame and generous internal space, which simplifies the wiring process and reduces installation time. The inclusion of multiple cable entry points with different sizes allows for clean and organized cable management. Furthermore, the transparent door is not just functional for monitoring but is designed to open up to 180 degrees, ensuring unobstructed access during maintenance.

            Important Considerations and Precautions

            When installing the M65W108TN1, it is crucial to ensure that the surface chosen for mounting is flat and capable of supporting the weight of the enclosure plus all internal components. While the unit is IP65 rated, the integrity of this protection depends heavily on using proper IP-rated cable glands or grommets at the entry points; failing to seal cable entries correctly will compromise the water and dust resistance.

            Installers should verify that the total heat dissipation of the components installed inside does not exceed the thermal capacity of the enclosure to prevent overheating. Additionally, during the wiring process, ensure all connections are tightened to the manufacturer's recommended torque. Because this model has a $650 \text{°C}$ glow wire rating, it is suitable for standard commercial and residential installations, but specialized high-fire-risk environments might require the version with a higher ($750 \text{°C}$) rating.

            Product Applications

            The M65W108TN1 is designed for versatility across various sectors. Its rugged nature makes it ideal for outdoor installations such as garden lighting control, swimming pool pump systems, and car wash facilities where exposure to water is a constant factor.

            In the industrial sector, it is frequently used as a local distribution board for small machinery or in warehouses where dust accumulation is a concern. In the commercial realm, its clean design allows it to be installed in car parks, commercial kitchens, and laboratories. It is also a popular choice for renewable energy applications, such as small-scale solar PV installations, where it serves as a protective housing for DC or AC string breakers and surge protection devices.

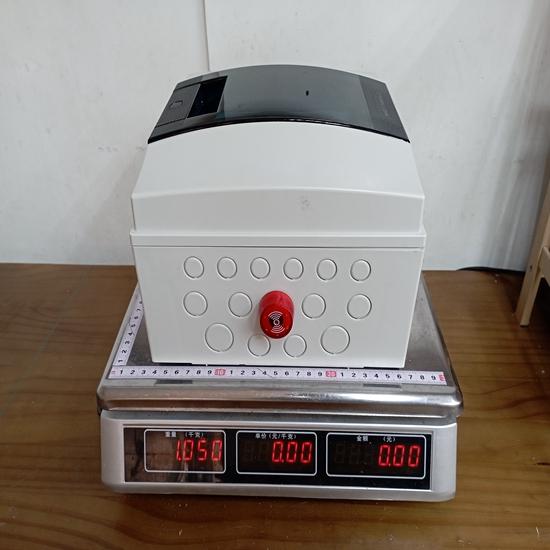

The structure and details of the product：
