LA9D115603/604 SCHNEIDER

LA9D115603/604 SCHNEIDER Output Module

Product  Description：

Schneider Electric Output Modules serve as critical interface components within industrial Programmable Logic Controller (PLC) architectures, including the Modicon M340, M580, TM221, and Quantum series. These modules bridge the gap between the CPU logic processor and physical field devices.

By translating low-voltage internal bus signals into robust electrical power outputs, Schneider output modules reliably drive actuators, solenoid valves, motor starters, indicator lamps, variable frequency drives, and heater controls. Available in both digital (discrete) and analog variants, these modules offer high density, optical isolation between field wiring and internal backplanes, and real-time diagnostic reporting to maintain optimal system uptime.

Product Parameters

• Module Categories: Digital Output Modules (Transistor, Relay, Triac) and Analog Output Modules (Current, Voltage).

• Channel Density: 4, 8, 16, 32, or 64 channels per module.

• Digital Output Voltage Options: 24V DC (Sink or Source), 115V AC, 230V AC.

• Digital Output Current Limits: Up to 0.5A per transistor channel; up to 2A to 5A per relay contact channel.

• Analog Output Ranges: 0 to 20 mA, 4 to 20 mA, 0 to 10 V, -10 V to +10 V.

• Analog Resolution: Typically 12-bit, 15-bit, or 16-bit resolution depending on model selection.

• Galvanic Isolation: 1500V AC to 2500V AC optical isolation between field outputs and internal CPU logic backplane.

• Response Time: Less than 1 ms for transistor outputs; less than 10 ms for relay contact switching.

• Operating Temperature: -25°C to +70°C for standard and severe-environment variants.

• Integrated Protection: Electronic short-circuit protection, reverse polarity protection, thermal overload detection, and surge suppression.

Product Advantages

• Industrial Reliability: Built to withstand severe industrial conditions, offering high resistance to electromagnetic interference, mechanical shock, and extreme operating temperatures.

• Comprehensive Diagnostic Capabilities: Individual channel diagnostic LEDs and advanced firmware feedback report faults such as open circuits, short circuits, or external power supply losses directly to the software environment.

• Hot-Swapping Capabilities: Many Modicon output modules support Removal and Insertion Under Power (RIUP), allowing modules to be replaced during maintenance without interrupting running processes.

• Versatile Signal Matching: Diverse channel types ensure easy integration with both high-speed semiconductor switching circuits and heavy-duty relay/AC loads.

• Streamlined Software Integration: Native plug-and-play setup within EcoStruxure Control Expert (formerly Unity Pro) simplifies variable mapping, hardware configuration, and live debugging.

Important Precautions

• De-Energize Before Wiring: Unless a module explicitly supports RIUP / hot-swapping in non-hazardous environments, always disconnect the power supply before connecting or removing field wiring terminal blocks.

• Observe Electrical Load Limits: Never exceed the specified maximum current per channel or total backplane power limits, as excessive load will lead to thermal shutdown or relay contact degradation.

• Inductive Load Protection: When controlling inductive loads such as solenoid coils or motor contactors, install flyback diodes across DC loads or RC snubbers across AC loads to suppress destructive inductive kickback voltages.

• Correct Polarity Wiring: Ensure correct polarity on DC power supply connections to the output circuits to avoid tripping internal solid-state fuses or damaging output transistors.

• Thermal Management: Ensure sufficient ventilation gap within the control cabinet to maintain airflow around high-density output modules running near continuous load capacity.

Product Applications

• Automotive and Discrete Manufacturing: Actuating pneumatic cylinders, robotic clamping tools, conveyor interlocks, and visual signal towers on assembly lines.

• Water and Wastewater Management: Regulating proportional flow valves, chemical dosing pumps, motor control centers, and intake gate actuators.

• Process Industries: Driving control valves, emergency shutdown valves, heating elements, and variable speed pump drives in chemical, oil, and gas processing plants.

• Power and Energy Sector: Operating switchgear trip mechanisms, breaker controls, and generator isolation systems.

• Building Automation and HVAC: Controlling air handling unit dampers, chiller pump starters, boiler controls, and facility alarm systems.

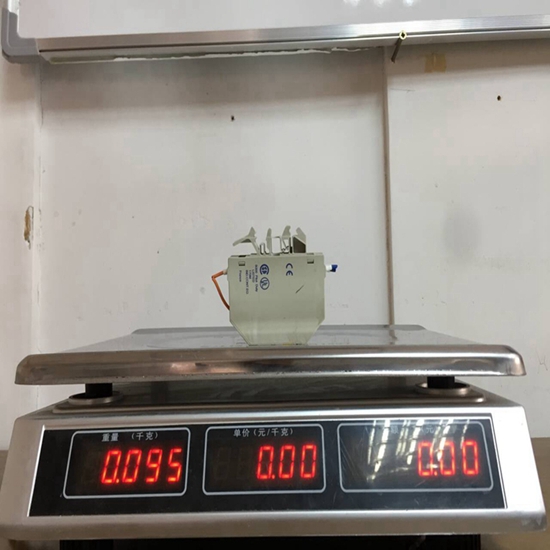

The structure and details of the product：
