KJ3001X1-BJ1 Emerson

KJ3001X1-BJ1 Emerson Filter Modules

Product  Description：

Emerson Filter Modules encompass a wide array of specialized filtration technologies across three primary divisions: Electrical Power Quality (SolaHD/Islatrol), Industrial Air Preparation (AVENTICS), and Refrigeration/Climate Technologies (Copeland). These modules are designed to protect sensitive electronic equipment from power disturbances or to ensure the purity of fluids and gases in complex mechanical systems.

Product Parameters

Due to the diversity of Emerson's portfolio, parameters are categorized by the module's specific function:

• Electrical Filters (Active Tracking Filters):

  • Voltage Ratings: Common industrial standards including 120V, 240V, and 480V AC.

  • Current Capacity: Ranges from 1A for control loops to over 100A for heavy machinery.

  • Frequency Range: Designed for 47Hz to 63Hz grid stability.

  • Attenuation: High-frequency noise suppression often reaching 40dB to 60dB.

• Pneumatic Filter Modules (FRL Series):

  • Filtration Grade: Fine particulate removal from 40 microns down to 0.01 microns (coalescing).

  • Operating Pressure: Standard ranges from 0.5 bar up to 16 bar.

  • Flow Rate: Capable of handling volumes up to 15,000 L/min depending on port size (1/8" to 1").

• Refrigeration Filter Driers:

  • Desiccant Type: Solid core or compacted bead technology for moisture and acid removal.

  • Compatibility: Rated for all major refrigerants including R-410A, R-134a, and $CO_2$.

Product Advantages

Emerson filter modules are engineered for "mission-critical" environments where system failure is not an option:

• Active Tracking Technology: Unlike standard surge protectors, Emerson's Islatrol electrical filters continuously track the AC sine wave to eliminate low-energy "ringing" transients that cause software glitches and logic errors.

• Modular Integration: The AVENTICS air preparation filters utilize a "click-and-assemble" modular design, allowing filters to be combined with regulators and lubricators without complex piping.

• High Chemical Resistance: Refrigeration modules feature epoxy powder paint finishes and corrosion-resistant cores to withstand harsh HVAC environments.

• Predictive Maintenance: Many modules include visual "Lifespan Indicators" or digital pressure switches that alert operators before a filter becomes fully clogged.

• Energy Efficiency: Low-pressure-drop designs in air filters ensure that compressors do not have to work harder to push air through the filtration media.

Product Applications

The versatility of Emerson modules allows them to be used across the global industrial landscape:

• PLC and CNC Protection: Islatrol filters are installed at the power input of control cabinets to prevent high-frequency noise from causing processor resets.

• Precision Motion Control: Used in servo drive systems (such as Control Techniques) to filter electromagnetic interference (EMI) that can interfere with encoder signals.

• Automotive Manufacturing: AVENTICS pneumatic modules ensure clean, dry air for robotic welding and painting lines.

• Commercial Cold Storage: Emerson suction line filters protect large refrigeration compressors from acid and contaminants following a motor burnout.

• Food and Beverage: Stainless steel filter modules provide the ultra-clean air required for aseptic packaging and bottling processes.

Important Precautions

To ensure maximum lifespan and safety, the following operational guidelines should be followed:

• Directional Flow: Filter modules are unidirectional. Installing a pneumatic or refrigeration filter backwards will result in zero filtration and potentially high pressure drops that damage the system.

• Grounding Requirements: For electrical tracking filters, a low-impedance earth ground is mandatory. Without proper grounding, the filter's ability to shunt noise transients is significantly neutralized.

• Condensate Management: Pneumatic filters must be mounted vertically to allow the automatic or manual drain to function. Accumulated water in the bowl can re-enter the air stream if not drained.

• Saturation Monitoring: Filter driers in HVAC systems must be replaced whenever the system is opened for service or if the moisture indicator changes color (e.g., from blue to pink).

• Chemical Compatibility: Ensure the filter's seal materials (NBR, FPM, or EPDM) are compatible with the specific oils or chemicals used in your process to prevent seal swelling or failure.

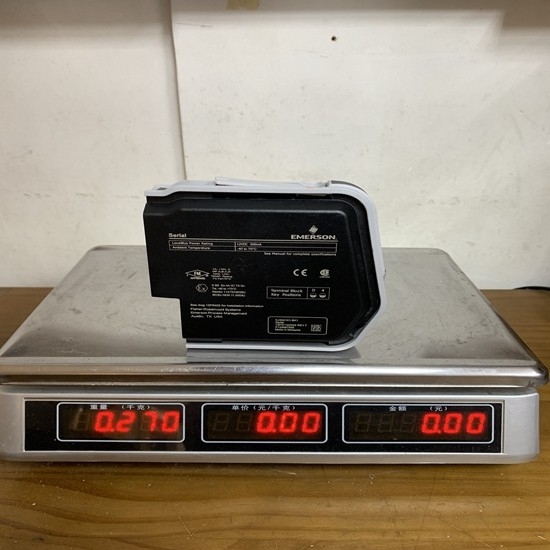

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
