KJ1501X1-BC2 Emerson Input module

Product  Description：

The Emerson KJ1501X1-BC2 (also known by part number 12P2186X042 or model VE5008) is a critical System Dual DC/DC Power Supply module specifically designed for the DeltaV M-Series Distributed Control System (DCS). Its primary role is to provide stable, regulated power to the DeltaV backplane and connected I/O modules, ensuring the continuous operation of industrial automation processes.

Product Specifications

• Input Power Rating: Dual compatibility with either $12 \text{ VDC}$ at $14.8 \text{ A}$ or $24 \text{ VDC}$ at $4.0 \text{ A}$ (nominal).

• Main Output Voltage: Regulated $12 \text{ VDC}$ for system components.

• Secondary Output Voltages: Low-voltage rails of $5.1 \text{ VDC}$ and $3.4 \text{ VDC}$ at $2.0 \text{ A}$ each for internal logic circuits.

• Total Output Power: Approximately $10 \text{ W}$ combined for the $5.1 \text{ V}$ and $3.4 \text{ V}$ rails at $70\text{°C}$.

• Operating Temperature: Extremely wide range from $-40\text{°C}$ to $+70\text{°C}$.

• Environmental Resistance: G3 Class rating for airborne contaminants (ISA-S71.04-1985), making it suitable for harsh industrial environments.

• Mechanical Protection: Includes shock resistance up to $10 \text{ g}$ (half-sine wave) and vibration resistance up to $0.7 \text{ g}$ (13.2 Hz to 150 Hz).

• Hazardous Area Certification: ATEX II 3 G (Ex nC IIC T4) and Class I, Division 2 approval for use in explosive atmospheres.

Product Advantages

• High System Availability: As a dual power supply, it supports redundant configurations, ensuring that if one power source or module fails, the DeltaV system remains operational without process interruption.

• Ruggedized for Industry: The G3-level coating and extreme temperature tolerance allow the module to be installed in environments where humidity, corrosive gases, or extreme cold/heat are present.

• Integrated Diagnostics: The module features built-in alarm relay contacts (rated at $30 \text{ VDC}, 2 \text{ A}$) to notify the control system immediately in the event of a power fault.

• Compact Integration: Its design allows it to plug directly into the DeltaV carrier, reducing wiring complexity and saving cabinet space.

Important Considerations (Precautions)

• Hot-Swapping Limitations: While DeltaV is known for online capabilities, this specific unit must not be removed or inserted while system power is energized unless the area is confirmed to be non-hazardous.

• Input Voltage Limits: When operating in $12 \text{ VDC}$ pass-through mode, the voltage source must not exceed $12.6 \text{ VDC}$ or $16 \text{ A}$ to prevent damage to internal components.

• Non-Serviceable Parts: This unit contains no user-serviceable components. Attempting to disassemble or repair the module will void certifications and may compromise safety in hazardous areas.

• Installation Environment: Ensure the unit is installed in an enclosure that meets the requirements for the specific hazardous area classification of the site.

Product Applications

The KJ1501X1-BC2 is used throughout heavy industries that rely on the DeltaV automation platform for safety and efficiency.

• Oil and Gas: Powering control systems on offshore platforms and in refineries where hazardous area ratings and resistance to salt/corrosion are mandatory.

• Chemical Processing: Providing stable power to I/O modules monitoring high-precision chemical reactions in environments with corrosive airborne particles.

• Pharmaceutical Manufacturing: Ensuring zero downtime for sensitive batch processes that require strictly controlled environmental conditions and reliable power.

• Power Generation: Used in the distributed control of turbine systems and auxiliary plant equipment where high vibration and temperature fluctuations occur.

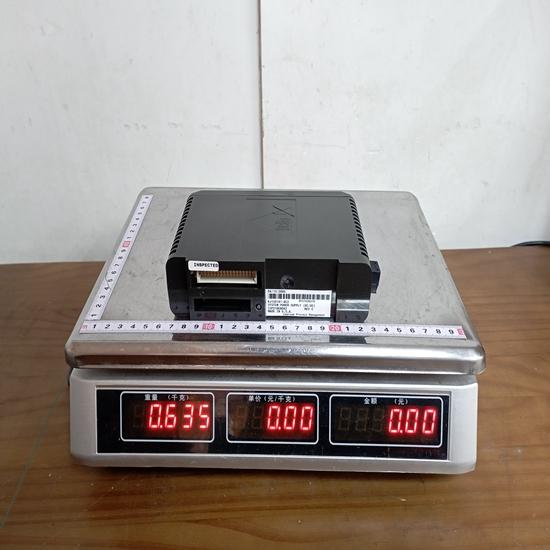

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
