JEPMC-W6003-A5 YASKAWA

JEPMC-W6003-A5 YASKAWA Processor module

Product  Description：

Yaskawa Processor Modules are the primary computational engines for the MP (Machine Controller) series, such as the MP2000 and MP3000 systems. These modules are responsible for executing high-speed logic, managing complex motion control algorithms, and coordinating the communication across the entire industrial network. As the core of the control system, the processor module integrates the CPU, system memory, and motion-link management into a single, high-performance unit designed for millisecond-level precision in automated machinery.

Product Parameters

The technical profile of a Yaskawa Processor Module is defined by its ability to handle high-density motion and logic tasks simultaneously:

• CPU Architecture: High-speed RISC processor optimized for real-time task execution and floating-point calculations.

• Control Cycle Time: Capable of maintaining deterministic motion cycles as low as 125 microseconds, ensuring extremely low jitter in motor synchronization.

• Motion Control Capacity: Supports various configurations typically ranging from 4 to 32 physical axes of motion via MECHATROLINK, with extended support for virtual axes.

• Memory Resources: Large-capacity internal Flash ROM for program storage and high-speed CMOS RAM for real-time data registers, supported by battery backup.

• Network Connectivity: Integrated high-speed motion network ports (MECHATROLINK-III or 4) and a built-in Ethernet port (100Base-TX) for global network integration.

• Programming Language Support: Fully compliant with IEC 61131-3 standards, including Ladder Logic, Structured Text, and specialized Motion Function Blocks.

Product Advantages

Yaskawa Processor Modules offer several distinct benefits that make them a standard in high-end motion applications:

• Motion-Logic Integration: Unlike standard PLCs, these processors are built with a motion-first architecture, meaning motion synchronization takes priority in the CPU scan cycle for jitter-free movement.

• High-Speed Synchronization: The module can synchronize hundreds of axes across multiple racks with microsecond precision, which is critical for complex mechanical systems like electronic line shafts.

• Advanced Programming Tools: Utilizing the MPE720 engineering environment, these processors allow for easy simulation, real-time trace monitoring, and modular programming.

• Robust Data Handling: Excellent capacity for managing large recipes and high-speed data logging, which is essential for modern Industry 4.0 and IoT requirements.

• Reliability: Engineered with industrial-grade heat dissipation and vibration resistance, ensuring a long service life in demanding factory environments.

Product Applications

These processor modules are the foundation for machines that require sophisticated, coordinated movement:

• Semiconductor Processing: Managing the high-speed, vibration-sensitive transport of wafers and high-precision inspection systems.

• Converting and Printing: Controlling tension and synchronization in high-speed rotary printing presses and film-slitting machines.

• Robotic Kinematics: Driving the calculations for delta robots, SCARA robots, and custom multi-jointed mechanical arms.

• Packaging Systems: Coordinating "flying shears," "pick and place" cycles, and high-speed wrapping sequences in food and pharmaceutical lines.

• Metalworking and CNC: Providing the processing power for multi-axis wire bending, spring forming, and complex milling operations.

Important Precautions

To ensure the safety and longevity of the Yaskawa Processor Module, the following operational guidelines must be followed:

• Electrostatic Discharge (ESD) Protection: Always use a grounded wrist strap when handling the processor module. Internal components are extremely sensitive to static electricity which can cause latent failures.

• Battery Maintenance: The internal RAM and absolute encoder data often rely on a backup battery. Monitor the battery voltage status through the controller software and replace it promptly when warned to avoid program loss.

• Heat and Ventilation: Ensure that the module is installed in the correct orientation within the rack. Do not obstruct the airflow, as overheating can lead to CPU throttling or system crashes.

• Power-Off Switching: Never insert or remove a processor module, memory card, or communication cable while the system power is on. This can lead to electrical arcing and permanent damage to the backplane.

• Firmware Consistency: When replacing a processor or adding expansion modules, verify that all components are running compatible firmware versions. Incompatible firmware can lead to initialization errors or intermittent communication failures.

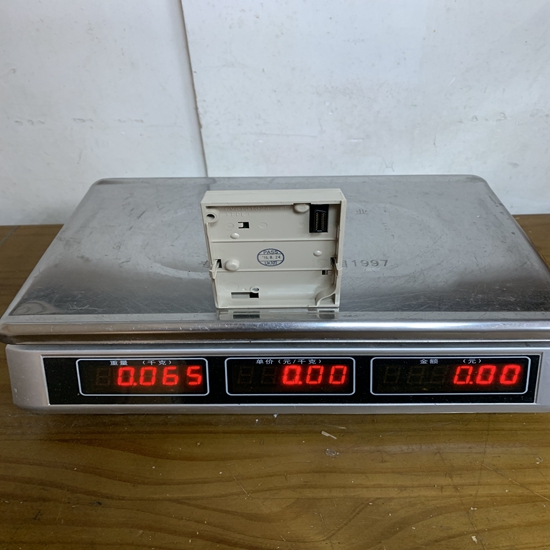

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
