JANCD-GCP03 YASKAWA

JANCD-GCP03 YASKAWA Central unit

Product  Description：

Yaskawa Central Units, notably the MP3000 and MP2000 series Machine Controllers, serve as the high-performance core of automated systems. These units are specifically designed to unify motion control, logic control, and networking into a single, cohesive platform. By integrating the CPU with high-speed motion buses like MECHATROLINK, Yaskawa Central Units eliminate the communication bottlenecks typically found between separate PLC and motion modules, enabling nanosecond-level synchronization of complex mechanical movements.

Product Parameters

The technical capability of a Yaskawa Central Unit is defined by its ability to handle high-speed data processing and multi-axis coordination:

• Control Cycles: Offers high-speed motion loops ranging from 125 microseconds to 2 milliseconds, depending on the number of controlled axes and complexity.

• Axis Capacity: Scalable architectures that can manage from 1 to 32 physical axes per unit, with the ability to expand to over 256 axes through networking.

• Communication Protocols: Features built-in MECHATROLINK-III or MECHATROLINK-4 ports for motion and Ethernet (Modbus/TCP, EtherNet/IP) for high-level factory automation.

• Program Capacity: Large-scale memory support, often reaching 10MB or more for user applications, allowing for extensive ladder logic and motion function blocks.

• Execution Speed: High-speed instruction execution for basic logic, typically measured in the range of 1 nanosecond to 5 nanoseconds per step.

• Redundancy: Certain high-end models support CPU redundancy for critical infrastructure applications where zero downtime is required.

Product Advantages

Yaskawa Central Units provide several distinct advantages for machine builders and systems integrators:

• Superior Motion Performance: Because motion is a native function of the CPU rather than an add-on, the system achieves perfect synchronization between axes for tasks like electronic camming and multi-axis interpolation.

• Simplified Engineering: Using the MPE720 software environment, users can program logic, motion, and drive parameters within a single project, reducing development time and debugging complexity.

• Reduced Hardware Footprint: The high level of integration reduces the number of components required in the control cabinet, leading to smaller enclosures and lower wiring costs.

• Robust Industrial Design: Built to withstand harsh factory environments, these units feature high vibration resistance and thermal stability for 24/7 continuous operation.

• Advanced Maintenance Tools: Integrated web servers and diagnostic functions allow for real-time monitoring and remote troubleshooting without specialized hardware.

Product Applications

These units are the preferred choice for industries requiring high-speed precision and complex mechanical coordination:

• Semiconductor and Electronics: Managing high-speed wafer handling, wire bonding, and pick-and-place machines where precision is measured in microns.

• Packaging and Converting: Synchronizing rotary knives, flying shears, and tension control systems in high-speed bottling or paper-making lines.

• Machine Tools: Providing the control logic and motion paths for multi-axis milling, grinding, and metal-forming machinery.

• Robotics Integration: Acting as the master controller for delta robots or SCARA systems integrated directly into a production line.

• Material Handling: Coordinating automated storage and retrieval systems (ASRS) and high-speed sorting conveyors.

Important Precautions

To ensure long-term reliability and safety, users should adhere to the following operational guidelines:

• Earthing and Grounding: The central unit must be grounded using a dedicated ground wire with a resistance of 100 ohms or less. Improper grounding can lead to intermittent logic errors and communication noise.

• Power Supply Quality: Use a regulated 24V DC power supply. Ensure the power source is separate from inductive loads (like motors or solenoids) to prevent voltage spikes from damaging the CPU.

• Battery Replacement: For units that utilize a battery to retain CMOS memory and absolute encoder positions, the battery must be replaced within the specified timeframe to prevent data loss.

• Slot Installation: When installing expansion modules onto the central unit backplane, always ensure the power is completely shut off to prevent electrical arcing and hardware destruction.

• Environmental Constraints: Avoid installing the unit in areas with high concentrations of conductive dust, oil mist, or corrosive gases. Use a cooling fan or heat exchanger if the cabinet temperature exceeds 55 degrees Celsius.

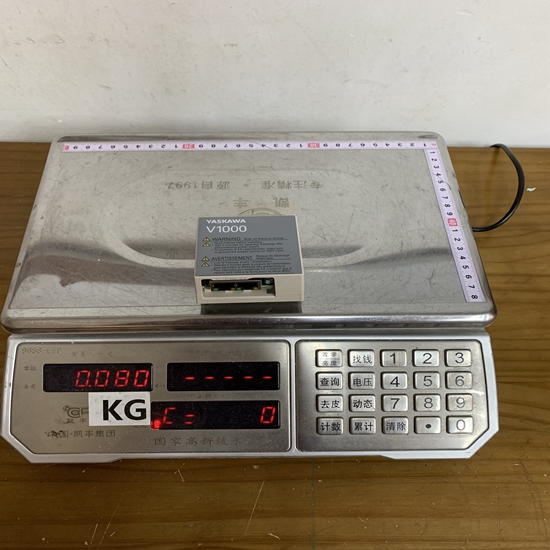

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
