JAMSC-B2603 YASKAWA

JAMSC-B2603 YASKAWA Analog Input Module

Product  Description：

Yaskawa Analog Input Modules, specifically those designed for the MP series machine controllers, are precision electronic devices that convert continuous physical signals into digital data. These modules allow the controller to interface with the "real world" by interpreting signals from sensors that measure variables like pressure, temperature, flow, and tension. By using high-speed sampling and high-resolution conversion, Yaskawa ensures that the motion controller receives accurate feedback, which is essential for high-performance closed-loop control.

Product Parameters

The technical performance of a Yaskawa Analog Input Module is defined by its sensitivity and processing speed:

• Input Signal Ranges: Flexible configuration for standard voltage inputs such as -10V to +10V DC, 0V to 10V DC, and current inputs such as 4mA to 20mA or 0mA to 20mA.

• Conversion Resolution: Typically features 16-bit high-resolution analog-to-digital conversion, providing a digital value range from -31276 to +31276 or similar high-fidelity scales.

• Number of Channels: Offered in varying densities, commonly 2-channel, 4-channel, or 8-channel versions to suit different machine complexities.

• Sampling Speed: Optimized for motion control, with conversion cycles often reaching 125 microseconds to 500 microseconds per channel.

• Input Impedance: High impedance for voltage inputs (typically 1 Megohm) and low impedance for current inputs (250 ohms) to ensure signal integrity without loading the sensor.

• Isolation Voltage: Built-in galvanic isolation, often rated at 1500V AC between the input terminals and the internal system bus.

Product Advantages

Yaskawa Analog Input Modules offer several features that prioritize signal quality and system stability:

• Motion-Synchronized Sampling: Unlike standard PLCs, Yaskawa modules can synchronize the analog sampling cycle with the motion control loop, providing perfectly timed feedback for tension or pressure control.

• Superior Noise Filtering: Integrated hardware filters combined with configurable digital software filters allow the module to ignore electrical interference common in industrial environments.

• Wire-Break Detection: Specifically for 4-20mA signals, the module can detect if a sensor cable has been disconnected and trigger an immediate safety alarm or machine stop.

• High-Density Integration: The compact design allows for multiple analog channels to be added to the machine controller without significantly increasing the control panel's physical footprint.

• Easy Calibration: Through the MPE720 engineering tool, users can perform zero and span adjustments digitally, eliminating the need for physical potentiometers on the module.

Product Applications

These modules are essential for any automated process requiring continuous feedback:

• Tension Control: Measuring feedback from load cells in printing presses, film laminators, and wire drawing machines to maintain constant material tension.

• Pressure Regulation: Monitoring hydraulic or pneumatic pressure in injection molding machines and metal stamping presses.

• Temperature Monitoring: Collecting data from thermocouples or RTDs (via transmitters) to regulate heat in sealing bars or industrial ovens.

• Flow Rate Management: Interfacing with flow meters in chemical dosing systems and liquid filling machines.

• Displacement Sensing: Using LVDTs or laser distance sensors to measure part thickness or position in precision assembly lines.

Important Precautions

To maintain the high accuracy of Yaskawa Analog Input Modules, specific installation and handling rules must be followed:

• Shielding and Grounding: Use high-quality shielded twisted-pair cables for all analog lines. The shield should be connected to the designated ground terminal on the PLC side only to avoid ground loops.

• Signal Separation: Never run analog signal cables in the same conduit or tray as high-voltage AC power lines or servo motor cables. Maintain a minimum distance of 200mm to 300mm to prevent electromagnetic induction.

• Unused Channel Handling: To prevent fluctuating digital values caused by noise, short-circuit the terminals of any unused voltage input channels or disable them in the software configuration.

• Current Mode Protection: Ensure that the input mode (Voltage vs. Current) is correctly set via internal switches or software parameters before applying power. Applying voltage to a channel set for current mode can damage the internal shunt resistor.

• Stable Power Supply: Ensure the 24V DC power supply for the sensors is well-regulated and free from switching noise, as fluctuations in the sensor's power source will directly affect the accuracy of the analog input.

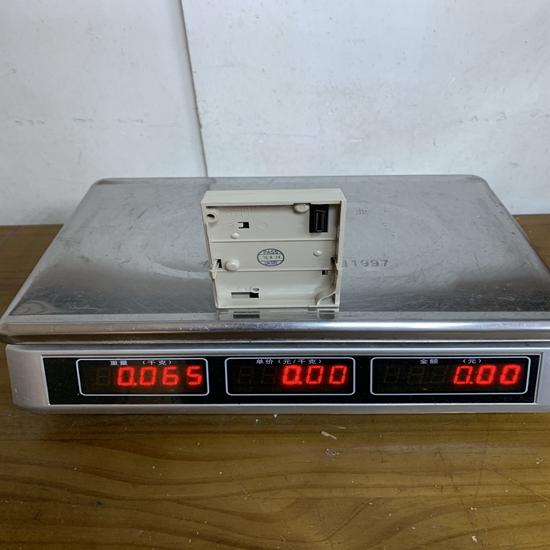

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
