IDP10-T20B11F-T Foxboro

IDP10-T20B11F-T Foxboro Memory Board, Dynamic

Product  Description：

The Foxboro Dynamic Memory Board is a specialized, high-reliability hardware component designed for integration within Foxboro Distributed Control Systems (DCS), such as the I/A Series and EcoStruxure Foxboro DCS. This board functions as the primary, volatile workspace for control processors, facilitating real-time data storage, rapid calculation execution, and high-frequency buffering of process variables. By utilizing dynamic RAM technology optimized for industrial environments, it ensures that runtime control strategies and database states are updated with minimal latency.

Product Parameters

The technical configuration of the Foxboro Dynamic Memory Board is optimized for continuous uptime and deterministic processing cycles:

• Memory Architecture: Utilizes high-speed Dynamic Random-Access Memory (DRAM) with integrated Error-Correcting Code (ECC) to detect and correct single-bit memory faults automatically.

• Storage Capacity: Available in various legacy and modern industrial capacities, typically ranging from 16 Megabytes to 512 Megabytes, specifically scaled to store complex continuous and batch control databases.

• Bus Compatibility: Designed to interface directly with proprietary Foxboro processor backplanes, ensuring synchronous high-bandwidth data transfers.

• Access Cycle Time: Engineered for low-latency memory reads and writes, matching the microsecond execution loops of the host processor CPU.

• Power Consumption: Low-power CMOS technology designed to draw minimal current from the system backplane, minimizing heat generation within the card cage.

• Environmental Resilience: Specially coated to withstand standard industrial operating temperatures ranging from 0°C to 60°C and relative humidity levels up to 95 percent non-condensing.

Product Advantages

Foxboro Dynamic Memory Boards provide distinct operational benefits designed for mission-critical industrial infrastructures:

• High Fault Tolerance: The integrated ECC functionality continuously checks memory data integrity, preventing system crashes or unexpected control loop shutdowns caused by soft memory errors or radiation-induced bit flips.

• Deterministic Performance: Optimized for real-time task scheduling, ensuring that data retrieval for critical process alarms and logic calculations is never delayed by background memory management tasks.

• Seamless System Integration: Fully compatible with Foxboro control processor firmware, allowing the system to recognize, allocate, and utilize the expanded memory space immediately upon installation without custom software mapping.

• Ruggedized Longevity: Built with industrial-grade components and optional G3 conformal coating to resist the effects of atmospheric contaminants, moisture, and vibration typically found in harsh plant control rooms.

• Efficient Process Synchronization: Enables the host processor to maintain massive real-time data tables, fast historical data buffering, and complex peer-to-peer communication matrices smoothly.

Product Applications

This memory board is a critical component deployed in various heavy industrial sectors requiring continuous, uninterrupted process automation:

• Chemical and Petrochemical Refining: Hosting the active, real-time database structures required for managing complex distillation columns, reactor safety profiles, and blending systems.

• Oil and Gas Processing: Providing the rapid memory workspace needed to calculate flow algorithms and manage safety interlocks across offshore platforms and cross-country pipelines.

• Thermal Power Generation: Supporting the high-speed data acquisition and synchronized loop control necessary for regulating boiler temperatures, steam pressures, and turbine speeds.

• Pulp and Paper Mills: Managing the extensive array of variable registers required for cross-direction control, moisture monitoring, and high-speed paper machine logic.

• Water and Utility Management: Buffering telemetry and continuous monitoring data across widespread municipal distribution systems and wastewater treatment networks.

Important Precautions

To preserve memory integrity and prevent permanent damage to the board, the following precautions are essential:

• Electrostatic Discharge Safety: Dynamic memory chips are highly sensitive to static electricity. Always handle the board by its edges or faceplate while wearing a properly grounded anti-static wrist strap, and store it in an ESD-shielded bag when not installed.

• Power-Off Installation: Never insert or remove the dynamic memory board from the processor rack while the system power is active. Hot-swapping a non-hot-swappable memory card can cause voltage spikes that destroy the memory registers and corrupt the host CPU.

• Battery Backup Maintenance: Because dynamic memory is volatile, all stored control data will be lost during a complete system power failure if the processor's backup battery is dead. Regularly inspect and replace the system's lithium backup batteries according to the maintenance schedule.

• Backplane Slot Verification: Ensure that the module alignment guides are perfectly straight and that the backplane connectors are free of dust before insertion. Forcing the board into an incorrect or misaligned slot can bend pins and cause permanent electrical shorts.

• Firmware Verification: Before installing an upgraded or replacement memory board, verify that the host Foxboro control processor's firmware version supports the specific memory capacity and revision level to avoid initialization failures or system halts during boot-up.

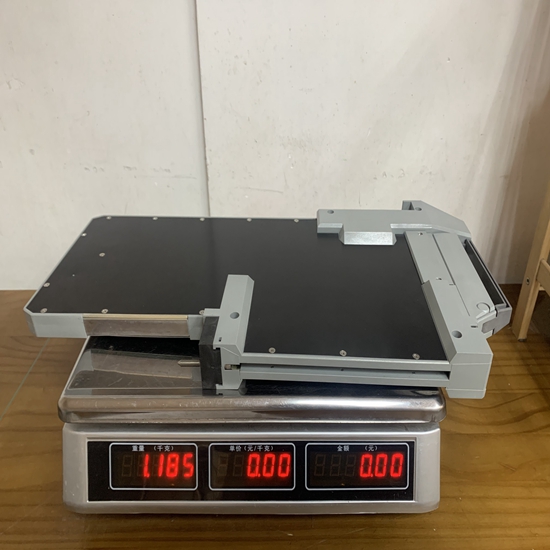

The structure and details of the product：
