IC755CSW07CDA GE FANUK

IC755CSW07CDA GE Fanuc Power Board

Product  Description：

• The IC755CSW07CDA is a 7-inch widescreen QuickPanel+ Operator Interface. It features a projected capacitive (PCAP) touchscreen that supports multi-touch gestures like swiping and pinching, similar to modern smartphones but built for industrial durability. The unit runs on the Windows Embedded Compact 7 operating system, providing a stable and flexible platform for running HMI, logic control, and data logging software simultaneously. The "CSW" in the part number indicates a color widescreen display, and the "CDA" suffix typically denotes the specific revision and DC power input.

  Product Parameters

  • Display Type: 7-inch TFT Color LCD Widescreen

  • Resolution: 800 x 480 pixels (WVGA)

  • Touchscreen: Projected Capacitive (Multi-touch)

  • Processor: 1.0 GHz Freescale i.MX535 ARM Cortex-A8

  • Memory (RAM): 512 MB DDR2

  • Storage (Flash): 256 MB or 512 MB internal storage, often expandable via SD card slot

  • Communication Ports: Two 10/100 Ethernet ports, one RS-232 serial port, one RS-485 serial port, and USB ports (Type A and Type B)

  • Input Voltage: 24 VDC (nominal range 18 to 30 VDC)

  • Environmental Rating: NEMA 4X / IP66 front panel protection when mounted correctly

  • Operating Temperature: 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit)

  Product Advantages

  • Integrated Control and Visualization: The QuickPanel+ acts as an all-in-one device that can handle HMI visualization, PLC-like logic control, and data historians, reducing the need for separate hardware.

  • Modern User Experience: The multi-touch screen allows for more intuitive operation, such as zooming into complex graphs or swiping through diagnostic pages, which improves operator efficiency and reduces training time.

  • Enhanced Connectivity: With dual Ethernet ports and multiple serial options, it easily connects to various industrial networks and peripheral devices like barcode scanners or printers.

  • Robust Hardware: Despite its sleek design, the unit is built to withstand harsh industrial environments, offering high resistance to vibrations, shocks, and chemical exposure on the front face.

  • Fast Processing: The ARM-based processor ensures quick screen transitions and rapid data processing, which is critical for real-time monitoring and control.

  Important Considerations and Precautions

  • Proper Grounding: To prevent electromagnetic interference (EMI) and ensure user safety, the device must be properly grounded to the industrial cabinet according to the installation manual.

  • Chemical Resistance: While the IP66 front panel is resistant to many chemicals, avoid using harsh abrasive cleaners or high-pressure steam on the touchscreen, as it may damage the capacitive layer.

  • Power Supply Stability: Always use a regulated 24 VDC power source. Voltage spikes or drops outside the 18 to 30 VDC range can cause system instability or permanent hardware failure.

  • Backlight Life: To extend the lifespan of the LCD backlight, it is recommended to configure the "Screen Saver" or "Backlight Off" settings within the operating system when the unit is not in active use.

  • Battery Replacement: If the internal clock or CMOS settings are lost after power cycles, the internal lithium battery may need replacement. This should only be done by qualified personnel.

  Product Applications

  The IC755CSW07CDA is widely utilized in sectors requiring compact yet powerful control interfaces.

  • Water and Wastewater: Monitoring pump stations, flow rates, and chemical treatment levels in remote or compact control panels.

  • Food and Beverage: Controlling packaging lines, ovens, or mixing stations where wash-down protection (IP66/NEMA 4X) is required.

  • Oil and Gas: Providing local visualization for wellhead control or compression stations where space is limited but high functionality is needed.

  • Material Handling: Serving as the primary interface for automated conveyor systems, sorting machines, and small robotic cells.

  • Machine Tooling: Integrating directly into custom machinery to provide operators with real-time feedback and diagnostic capabilities.

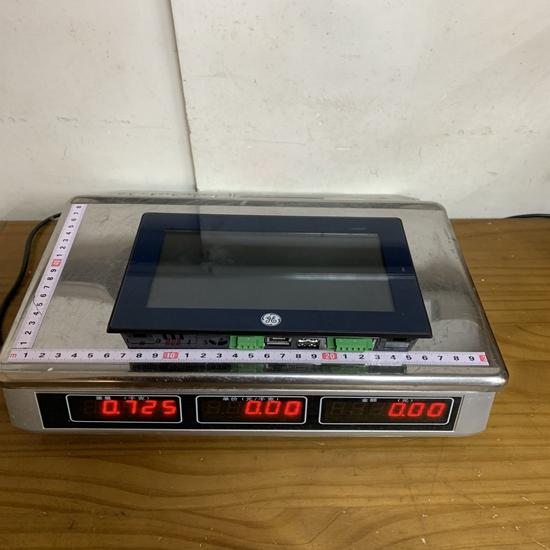

The structure and details of the product：
