IC695PSD140B GE FANUK

IC695PSD140B GE Fanuc Power Board

Product  Description：

The IC695PSD140B is a 40-Watt multipurpose power supply that operates on a 24 VDC input. It is specifically engineered for the RX3i Universal Backplane (IC695CHSxxx) and occupies two slots due to its physical size and heat dissipation requirements. This module provides three different output voltages to the backplane: +5 VDC, +3.3 VDC, and +24 VDC relay power. One of its standout features is its support for redundancy; when installed in a universal backplane, multiple PSD140 units can be combined to provide redundant power, ensuring the system remains operational even if one power supply fails.

Product Parameters

The technical specifications of the IC695PSD140B define its operational limits and capabilities:

• Input Voltage Range: 18 to 30 VDC (24 VDC nominal).

• Input Power: 60 Watts maximum at full load.

• Output Power: 40 Watts total maximum output.

• Output Voltage/Current 1: +5.1 VDC at up to 8 Amps.

• Output Voltage/Current 2: +3.3 VDC at up to 9 Amps.

• Output Voltage/Current 3: +24 VDC relay power at up to 1.6 Amps.

• Slot Width: Occupies 2 slots on the RX3i Universal Backplane.

• Isolation: 500V channel-to-backplane and 500V input-to-ground.

• Protection: Includes overvoltage and overcurrent protection features to safeguard the backplane.

• Indicators: Front-panel LEDs indicating Power (OK) and Fault status.

Product Advantages

The IC695PSD140B offers several benefits for industrial control applications. Its most significant advantage is Power Redundancy Capability. In critical processes where downtime is not an option, two or more of these modules can be used together to share the load; if one fails, the others instantaneously take over the full load without interrupting the CPU.

Additionally, the module features Hot-Swappable Functionality, allowing it to be removed or replaced while the backplane is powered (provided a redundant supply is present), which significantly reduces Mean Time to Repair (MTTR). The High Current Output on both the 5V and 3.3V rails ensures that even dense racks filled with sophisticated communications or motion control modules have sufficient power to operate reliably.

Important Considerations and Precautions

When installing and maintaining the IC695PSD140B, several critical precautions should be followed to ensure safety and equipment longevity. First, users must ensure the Total Power Calculation for all modules in the rack does not exceed the 40-Watt limit of the supply. Overloading the supply can lead to unexpected system shutdowns or hardware damage.

Second, because this module occupies two slots, users must ensure the Physical Space is available on the universal backplane. It cannot be installed on an expansion backplane. Third, when using Redundant Configurations, it is recommended to use identical power supply models and wire them to independent power sources for maximum reliability.

Fourth, ensure proper Grounding by connecting the frame ground terminal to a low-impedance earth ground to minimize electrical noise and protect against surges. Lastly, always check the Firmware Compatibility with the RX3i CPU to ensure that diagnostics and fault reporting are correctly recognized by the system.

Product Applications

The GE IC695PSD140B is a staple in high-reliability industrial environments where the RX3i platform is deployed.

• Critical Infrastructure: Used in water treatment facilities and power distribution centers where redundant power ensures continuous monitoring and control.

• Oil and Gas: Ideal for remote terminal units (RTUs) and offshore platforms where 24 VDC battery or solar systems are the primary power source.

• Automotive Manufacturing: Providing stable power to high-speed motion control modules and complex I/O configurations on assembly lines.

• Process Industries: Utilized in chemical and pharmaceutical plants where the hot-swap capability allows for maintenance without stopping the production cycle.

• Material Handling: Powering large-scale sorting and conveyor systems that require robust protection against the electrical noise typical of motor-heavy environments.

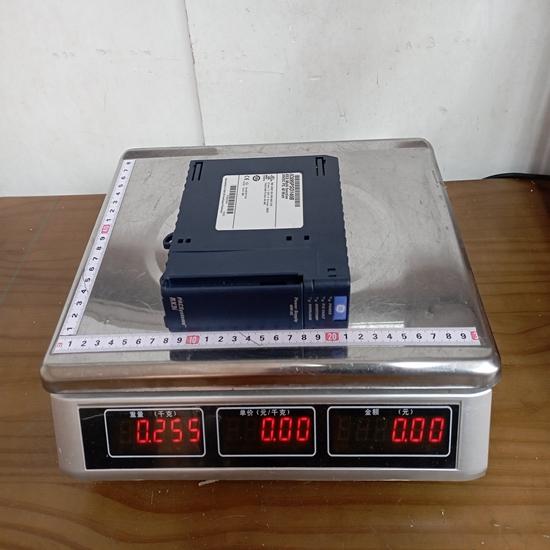

The structure and details of the product：
