IC200MDD845 Emerson

IC200MDD845 Emerson  Operator unit

Product  Description：

Emerson Operator Units, commonly referred to as Human Machine Interfaces (HMIs) or Operator Interface Terminals (OITs), are industrial display and control devices designed to provide a high-resolution window into automated processes. In the context of Emerson’s DeltaV and Ovation control systems, these units serve as the primary interaction point for plant personnel. They visualize real-time data from the field, allow for manual control of machinery, and manage alarm notifications, ensuring that operators can make informed decisions to maintain safety and efficiency.

Product Parameters

The technical specifications of Emerson Operator Units are optimized for high-performance visualization and industrial durability:

• Display Characteristics: Features high-brightness LED-backlit LCD screens, typically ranging from 7 inches to 22 inches, with resolutions up to Full HD (1920 x 1080).

• Input Methods: Available as high-sensitivity resistive or capacitive touchscreens, as well as models with dedicated tactile function keys for use with industrial gloves.

• Processor and Memory: Equipped with high-speed industrial-grade processors and significant onboard RAM to ensure rapid screen transitions and smooth trend rendering.

• Communication Ports: Integrated dual Ethernet ports for network redundancy, alongside USB and serial ports for connecting peripheral devices like barcode scanners or printers.

• Environmental Protection: Front panels are generally rated NEMA 4X or IP66, providing a seal against water, dust, and corrosive cleaning agents.

• Operating System: Typically runs a hardened version of Windows IoT or a proprietary real-time operating system (RTOS) to ensure cyber security and stability.

Product Advantages

Emerson’s operator interface technology offers several key benefits for industrial environments:

• Seamless Integration: Designed to work natively with Emerson’s control software, allowing for "drag-and-drop" tag integration and automatic alarm synchronization.

• High Reliability: Built without moving parts (fanless design) to eliminate the risk of mechanical failure and to resist the effects of constant industrial vibration.

• Enhanced Ergonomics: The interface supports high-contrast graphics and customizable dashboards, reducing operator fatigue and improving response times during critical events.

• Advanced Security Features: Includes multi-level user authentication and role-based access control, ensuring that only authorized personnel can change setpoints or system configurations.

• Global Scalability: Supports multi-language displays and international units of measurement, making it suitable for global deployment across diverse regions.

Product Applications

These units are the command centers for various complex industrial operations:

• Control Room Operations: Serving as the main monitoring station for chemical plants and oil refineries to visualize piping and instrumentation diagrams (P&ID).

• Skid-Mounted Machinery: Providing a local control point for standalone units such as air compressors, water filtration systems, and fuel skids.

• Safety System Monitoring: Acting as a dedicated display for Emergency Shutdown (ESD) systems to show the status of fire and gas detectors.

• Batch Processing: Guiding operators through complex multi-step recipes in pharmaceutical or food and beverage production.

• Marine and Offshore: Monitoring engine performance, power distribution, and ballast levels on ships and offshore platforms.

Important Precautions

To ensure the safety of the operator and the longevity of the hardware, the following precautions must be observed:

• Screen Care: Clean the display only with recommended non-abrasive cloths and mild cleaning solutions. Using sharp objects or harsh chemicals can permanently damage the touch surface.

• Installation Environment: Avoid installing the unit in direct sunlight, which can lead to heat buildup and reduced display visibility. Use a sunshade or high-brightness model if outdoor use is required.

• Power Quality: Use a surge protector or a dedicated Uninterruptible Power Supply (UPS). Sudden power drops or surges can corrupt the internal operating system or damage the backlight inverter.

• Grounding and Shielding: Ensure the unit is properly grounded to the control panel to prevent "ghost touches" or communication errors caused by electromagnetic interference (EMI).

• Secure Mounting: Use all provided mounting clips to ensure an even seal against the panel. An uneven seal may allow moisture or dust to enter the internal circuitry, leading to short circuits.

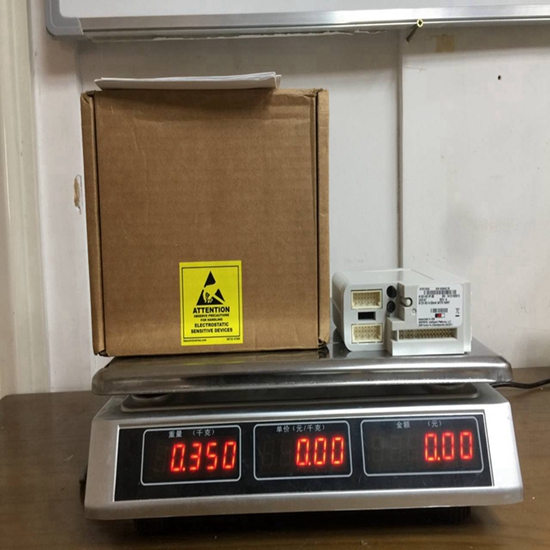

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
