HF-MP053 MITSUBISHI

HF-MP053 MITSUBISHI Processor module

Product  Description：

The Mitsubishi Electric Processor Module, primarily part of the MELSEC series (such as the iQ-R, iQ-F, or Q Series), serves as the central nervous system of a Programmable Logic Controller (PLC) system. It is designed to execute complex control programs, manage high-speed data processing, and coordinate communication between various I/O modules and intelligent function units.

Product Specifications

These specifications represent the typical high-performance standards found in the flagship MELSEC iQ-R series.

• Execution Speed: Basic instruction execution speeds often reach as low as 0.14 nanoseconds, allowing for near-instantaneous logic processing.

• Program Capacity: Memory options typically range from 10K to 1200K steps, accommodating everything from simple machine control to massive factory automation projects.

• Built-in Connectivity: Most modern units feature integrated Ethernet and USB ports for direct PC connection, debugging, and network integration.

• Memory Storage: Includes built-in Flash ROM for program storage and supports SD memory cards for data logging and firmware updates.

• Multi-CPU Support: Capability to mount multiple CPUs on a single base unit to distribute control tasks, such as separating motion control from sequence control.

Product Advantages

Mitsubishi processor modules are recognized in the industry for their reliability and sophisticated architecture.

• High-Speed Processing: The dedicated industry-leading sequence execution engine minimizes scan times, which is critical for high-precision manufacturing.

• Scalability: The modular design allows users to upgrade the processor without replacing the entire I/O infrastructure, providing a cost-effective path for future expansion.

• Robust Data Security: Advanced security features, such as IP address filters and security keys, prevent unauthorized access to the control logic and protect intellectual property.

• Seamless Integration: These modules integrate perfectly with Mitsubishi’s servo drives, inverters, and HMIs via high-speed buses like CC-Link IE, creating a unified ecosystem.

Safety and Operational Precautions

To ensure longevity and prevent hardware failure, several operational guidelines must be followed.

• Environmental Limits: Always operate the module within the specified temperature range, typically 0 to 55 degrees Celsius. Excessive heat can degrade the internal semiconductors.

• Power Sequencing: Ensure the power supply module is compatible with the processor’s current consumption to prevent erratic behavior or unexpected shutdowns.

• Noise Mitigation: Install the processor in a grounded metal cabinet and separate high-voltage cabling from communication lines to avoid electromagnetic interference.

• Battery Maintenance: For modules using battery-backed RAM, monitor the "BAT" LED indicator and replace the battery within the designated timeframe to prevent program loss.

Typical Applications

The versatility of Mitsubishi Processor Modules makes them a staple in various industrial sectors.

• Automotive Assembly: Managing complex robotics, welding stations, and conveyor synchronization on high-volume production lines.

• Semiconductor Manufacturing: Handling ultra-precise motion control and cleanroom environmental monitoring where zero downtime is tolerated.

• Food and Beverage: Controlling automated packaging, bottling, and temperature-sensitive processing systems.

• Water Treatment: Supervising distributed pump stations and chemical dosing systems across large geographical areas using remote telemetry.

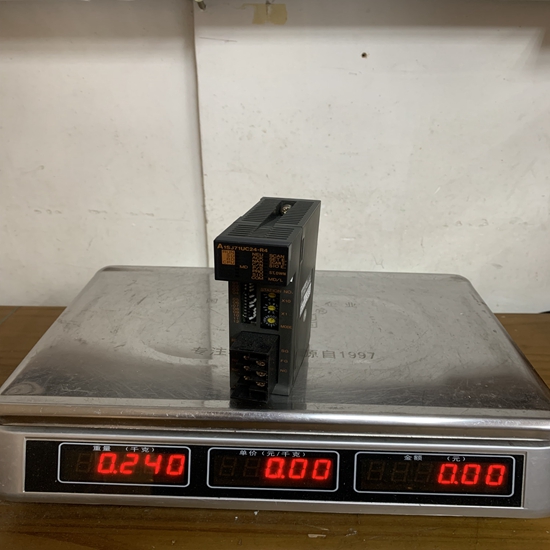

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
