FX2NC 32MT-DSS MITSUBISHI

FX2NC 32MT-DSS MITSUBISHI Termination Unit

Product  Description：

The Mitsubishi Termination Unit is a specialized interface component designed for use with Mitsubishi Electric's industrial automation systems, particularly within the MELSEC series. These units serve as the physical connection point between field wiring and the PLC (Programmable Logic Controller) I/O modules. They are engineered to simplify wiring, reduce cabinet space, and ensure signal integrity in complex industrial environments.

Product Specifications

Mitsubishi offers several models of termination units, such as the A6TE2-16N or those within the iQ-R and iQ-F series. While specific numbers vary by model, the general technical parameters include:

• Rated Voltage: Typically 24V DC for digital signals, or up to 240V AC for specific relay output units.

• Current Capacity: Generally ranges from 0.5A to 2A per point, depending on the terminal block design.

• Connection Type: Screw-terminal, spring-clamp, or high-density ribbon cable connectors.

• Number of Points: Commonly available in 16-point, 32-point, or 64-point configurations.

• Insulation Resistance: Usually 10M Ohm or higher, measured by a 500V DC insulation resistance tester.

• Operating Temperature: 0 to 55 degrees Celsius.

• Mounting: Standard DIN rail mounting or direct screw mounting.

Product Advantages

The use of a dedicated Mitsubishi Termination Unit provides several operational benefits:

1. Enhanced Wiring Efficiency: By using pre-fabricated cables to connect the PLC to the termination unit, users can significantly reduce manual wiring time and minimize human error.

2. Space Optimization: These units allow for high-density wiring in a compact form factor, helping to shrink the overall footprint of the control cabinet.

3. Simplified Maintenance: If an I/O module needs to be replaced, the field wiring remains undisturbed on the termination unit, allowing for faster swaps and reduced downtime.

4. Signal Reliability: Built-in protection features and high-quality contact points ensure that signals are transmitted with minimal interference or voltage drop.

Usage Precautions

To ensure the longevity and safety of the equipment, please observe the following:

• Voltage Matching: Always verify that the input/output voltage of the field device matches the rating of the termination unit to prevent hardware damage.

• Tightening Torque: For screw-terminal models, ensure screws are tightened to the specific torque mentioned in the manual to prevent loose connections or stripped threads.

• Power Down: Never wire the unit or connect/disconnect cables while the power supply is turned on.

• Environmental Factors: Avoid installing the unit in areas with high moisture, corrosive gases, or excessive vibration without proper protective housing.

• Wire Stripping: Ensure wires are stripped to the correct length; exposed copper can cause short circuits, while under-stripped wires lead to poor conductivity.

Product Applications

Mitsubishi Termination Units are widely utilized across various sectors of factory automation:

• Automotive Assembly: Connecting sensors and actuators on robotic assembly lines to the central iQ-R system.

• Water Treatment: Managing remote I/O signals for pumps, valves, and flow meters over long distances within a facility.

• Packaging Machinery: Handling high-speed digital inputs and outputs for precision wrapping and labeling equipment.

• Semiconductor Manufacturing: Providing clean, organized wiring interfaces for cleanroom control systems where space and reliability are paramount.

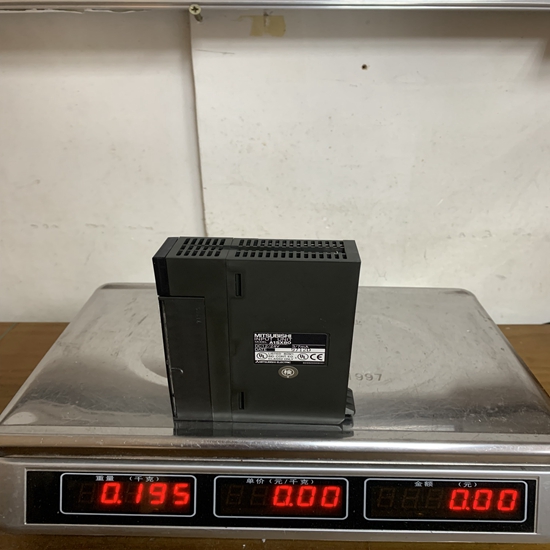

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
