FX1N-24MR-ES/UL MITSUBISHI

FX1N-24MR-ES/UL MITSUBISHI analog module

Product  Description：

Mitsubishi Electric Analog Modules are high-performance interface units designed for the MELSEC PLC series. These modules facilitate the conversion between continuous physical signals—such as voltage and current—and the digital data processed by the PLC's central processing unit. They serve as the critical link for systems that require more than simple "on/off" control, enabling the monitoring and regulation of variable physical quantities with high precision and high-speed sampling.

Product Parameters

The technical profile of Mitsubishi analog modules is characterized by high resolution and versatile signal compatibility:

• Signal Types: Supports standard voltage inputs and outputs ranging from -10V to +10V DC, and current signals typically ranging from 0 to 20mA or 4 to 20mA DC.

• Resolution: High-definition digital conversion often reaching 16-bit (signed), providing a digital value range from -32,000 to +32,000 or 0 to 64,000 for extreme accuracy.

• Conversion Speed: Processing times are optimized for high-speed manufacturing, with sampling rates as fast as 80 microseconds per channel.

• Number of Channels: Available in various configurations, commonly offering 4, 8, or 16 channels per module to accommodate complex sensor networks.

• Accuracy: Features minimal total accuracy error, usually within ±0.1 percent to ±0.3 percent of the maximum value at room temperature.

• Isolation: Equipped with optical and galvanic isolation between the external terminals and the PLC internal circuitry to ensure system stability.

Product Advantages

Mitsubishi analog modules provide several strategic benefits for industrial automation:

• Advanced Data Processing: Many modules include built-in intelligence for digital filtering, scaling (converting signals directly into engineering units like Liters/Hour), and peak/bottom value holding.

• Noise Immunity: Sophisticated hardware design and software-based averaging functions effectively eliminate electrical noise often found in industrial environments.

• Easy Diagnostics: Integrated features such as disconnection detection (wire-break sensing) and out-of-range alarms allow for rapid troubleshooting of field sensors.

• Flexibility: The modules are highly configurable through software like GX Works3, allowing users to switch between voltage and current modes without changing hardware jumpers.

• Space Efficiency: High-density modules provide many channels in a compact footprint, reducing the overall size and cost of the control cabinet.

Product Applications

These modules are essential for any application that involves measurement and feedback control:

• Process Industry: Regulating temperature, pressure, and flow rates in chemical, food, and beverage production lines.

• Motion and Tension Control: Interfacing with load cells and ultrasonic sensors to maintain constant material tension in printing and textile machinery.

• Environmental Control: Monitoring humidity and CO2 levels in large-scale climate control systems and cleanrooms.

• Energy Management: Collecting data from power transducers to analyze voltage stability and energy consumption across a factory.

• Water Treatment: Managing pump speeds and valve positions based on real-time water level and pressure feedback.

Important Precautions

To ensure long-term reliability and measurement accuracy, the following guidelines should be strictly followed:

• Shielded Cabling: Always use shielded twisted-pair cables for analog signal lines. The shield should be grounded at a single point, typically on the PLC side, to prevent ground loops.

• Physical Separation: Maintain a distance of at least 100mm between analog signal cables and high-voltage or high-frequency power cables to avoid electromagnetic interference.

• Unused Terminals: To prevent digital values from fluctuating due to induced noise, short-circuit the terminals of any unused input channels or disable them in the software settings.

• External Power Supply: For modules requiring an external 24V DC power source, ensure the supply is stable and free from significant ripple or electrical surges.

• Warm-up Period: For high-precision tasks, allow the system to remain powered on for 20 to 30 minutes to reach thermal equilibrium before performing critical calibrations.

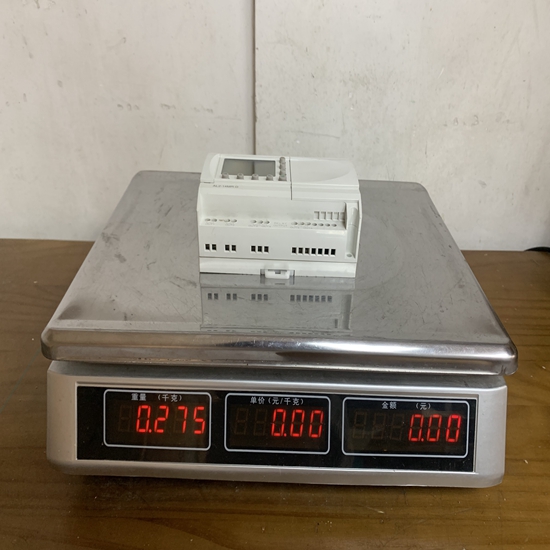

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
