FS212 BACHMANN

FS212 BACHMANN Control Unit

Product  Description：

Bachmann electronic specializes in high-end automation systems, particularly known for their M1 controller system. These control units are designed as "all-in-one" high-performance platforms that combine the capabilities of a PLC, a motion controller, and a communication gateway. They are engineered to perform in the most extreme environments, ranging from maritime applications to wind turbines, where mechanical vibration and temperature fluctuations are constant challenges.

Product Parameters

The technical foundation of a Bachmann Control Unit is built upon industrial-grade computing power and real-time operating systems:

• Processor Architecture: Utilizing high-performance Intel or ARM-based processors tailored for low power consumption and high heat dissipation efficiency.

• Real-Time Operating System: Typically runs on VxWorks or similar deterministic operating systems, ensuring microsecond-level precision for control tasks.

• Memory Capacity: Equipped with high-speed internal RAM (up to several GB) and non-volatile flash memory for program storage and extensive data logging.

• Communication Ports: Standard integration of multiple Ethernet interfaces (supporting PROFINET, EtherCAT, and Modbus TCP), serial ports (RS-232/485), and CAN bus interfaces.

• Environmental Resilience: Designed to operate in extreme temperature ranges from -30°C to 70°C without the need for active cooling fans.

• Diagnostic Interface: Features localized status displays and integrated web servers for remote system monitoring and software updates.

Product Advantages

Bachmann control units offer distinct benefits for industries requiring high availability and precision:

• Robust Mechanical Design: The modules feature a unique locking mechanism and vibration-resistant backplanes, making them suitable for offshore and heavy-machinery environments.

• Integrated Security: Features hardware-based encryption and secure boot capabilities to protect industrial intellectual property and prevent unauthorized access to the control logic.

• Open Software Architecture: Supports standard PLC languages (IEC 61131-3) alongside high-level programming in C and C++, allowing developers to implement complex mathematical algorithms easily.

• Long-Term Availability: Bachmann provides extended product lifecycles, ensuring that spare parts and compatible upgrades are available for decades, which is critical for infrastructure projects.

• Seamless Condition Monitoring: Many control units have built-in capabilities to integrate vibration and structural health monitoring directly into the main control loop.

Product Applications

Due to their ruggedized nature, Bachmann units are the primary choice for several specialized sectors:

• Wind Energy: Acting as the main turbine controller, managing pitch control, yaw systems, and grid synchronization while withstanding the vibrations of the nacelle.

• Maritime and Offshore: Controlling engine room automation, dynamic positioning systems, and winch controls on large vessels and oil platforms.

• Renewable Energy Grids: Managing the complex power electronics and battery storage synchronization for microgrids and solar farms.

• Heavy Industry: Governing large-scale metal processing plants and mining equipment where dust, heat, and electrical noise are prevalent.

• Industrial Test Benches: Providing the high-speed data acquisition and deterministic control required for automotive and aerospace component testing.

Important Precautions

To maintain the performance and safety of the Bachmann system, the following operational rules must be observed:

• Module Seating: Ensure that all modules are firmly clicked into the backplane and the locking levers are engaged. Loose modules can cause intermittent bus errors that are difficult to diagnose.

• Thermal Management: While the units are fanless, they must be mounted in the correct orientation (usually vertical) to allow for natural heat convection through the cooling fins.

• Power Quality: Use a regulated 24V DC power supply. Although the units have built-in protection, significant voltage ripples can affect the accuracy of sensitive analog measurement modules connected to the unit.

• Firmware Consistency: When replacing a module or upgrading the CPU, verify that the firmware versions across the entire rack are compatible to prevent communication mismatches.

• Grounding and Shielding: The M1 system relies on a solid ground connection through the DIN rail or mounting plate. Ensure these surfaces are conductive (unpainted) to provide an effective path for electrical noise.

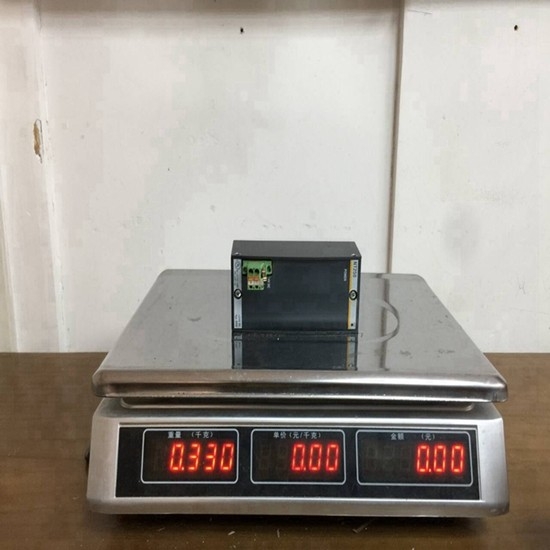

The structure and details of the product：
