FS-67CFR-226 Emerson

FS-67CFR-226 Emerson Gate Module

Product  Description：

Emerson Gate Modules, often integrated within the Ovation or DeltaV distributed control systems, are specialized high-performance components designed to drive power semiconductors or manage signal gating in critical industrial applications. These modules act as the essential bridge between the low-voltage control logic of the processor and the high-power switching requirements of industrial electrical loads. They are engineered to provide precise timing, isolation, and protection for advanced power electronic circuits.

Product Parameters

The technical profile of an Emerson Gate Module is built to meet the rigorous demands of power generation and heavy industry:

• Peak Output Current: High-current driving capability, often ranging from 5A to 20A, allowing for the rapid charging of gate capacitance in large IGBT or MOSFET modules.

• Isolation Rating: Features high-grade galvanic isolation, typically rated up to 4000V AC, to prevent high-voltage transients from damaging the control backplane.

• Switching Frequency: Optimized for high-frequency operation, generally supporting ranges from 10kHz to 100kHz depending on the specific power application.

• Supply Voltage: Typically operates on a 24V DC input for logic, while generating the necessary bipolar or unipolar gate drive voltages (e.g., +15V/-8V).

• Propagation Delay: Low latency design with signal delays usually kept under 300 nanoseconds to ensure tight synchronization across multi-phase systems.

• Fiber Optic Interface: Many Emerson gate modules utilize fiber optic inputs for gate signals to provide total electrical immunity to electromagnetic interference.

Product Advantages

Emerson Gate Modules offer distinct advantages in reliability and system intelligence:

• Advanced Fault Diagnostics: These modules are equipped with real-time monitoring to detect desaturation, under-voltage lockout (UVLO), and short-circuit conditions, immediately reporting faults to the controller.

• Deterministic Timing: Precision clocking ensures that switching events occur exactly when commanded, which is critical for reducing harmonic distortion in power conversion.

• Ruggedized Construction: Designed for the "harsh environment" standards of the power industry, featuring high vibration resistance and wide operating temperature ranges.

• Soft Turn-Off Logic: In the event of a fault, the module can execute a gradual shutdown of the power device to prevent destructive voltage spikes caused by high $di/dt$.

• Simplified Maintenance: The modular "plug-and-play" design allows for rapid replacement without rewiring, minimizing downtime in critical infrastructure.

Product Applications

These modules are primarily found in sectors where power reliability is non-negotiable:

• Power Plant Control: Managing the excitation systems for large generators and controlling high-power inverters in renewable energy plants.

• Static Var Compensators (SVC): Used in grid stability systems to gate the thyristors or IGBTs that provide reactive power compensation.

• Large-Scale Motor Drives: Driving the power stages for medium-voltage variable frequency drives (VFDs) in mining, oil, and gas operations.

• Induction Heating: Controlling the high-frequency switching required for industrial smelting and metal heat-treatment processes.

• Battery Energy Storage Systems (BESS): Managing the bidirectional power flow between the DC battery stacks and the AC grid.

Important Precautions

To ensure safety and optimal performance, the following guidelines must be strictly followed:

• Gate Resistor Matching: Ensure that the external gate resistors are sized correctly according to the power semiconductor's datasheet to avoid oscillation or excessive switching losses.

• Fiber Optic Handling: For modules using optical links, maintain the minimum bend radius of the fiber cables to prevent signal attenuation or breakage.

• Power Sequencing: Always verify that the gate driver's auxiliary power is stable before applying high voltage to the collector/drain of the power device.

• ESD Protection: These modules contain highly sensitive CMOS components; always use an anti-static wrist strap when handling or installing the module.

• Cooling Path Clearance: Do not obstruct the airflow around the module heatsinks, as overheating can lead to a reduction in driving power or premature component failure.

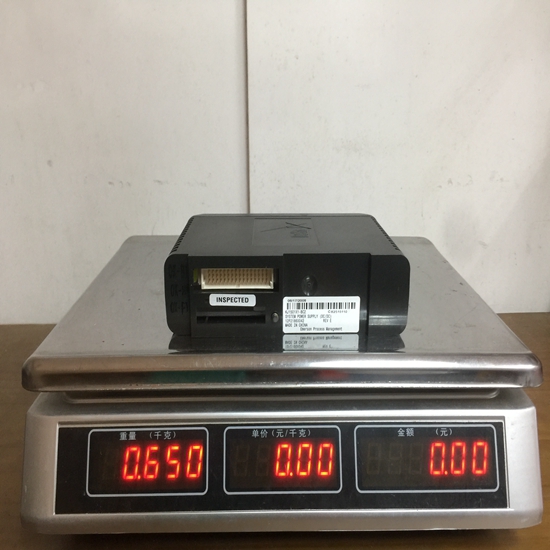

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
