FBM15 DM400YR Foxboro

FBM15 DM400YR Foxboro Output Module

Product  Description：

Foxboro Output Modules, integral components of the Foxboro Evo and I/A Series Distributed Control Systems (DCS), are high-reliability industrial hardware components. They convert digital control commands from the system's control processors into continuous analog or discrete digital signals. These outgoing signals directly drive field-side regulatory elements, such as control valves, actuators, motor starters, and indicators, completing the closed-loop automation process.

Product Parameters

The technical composition of a Foxboro Output Module is defined by its precise signal generation capabilities and industrial electrical ratings:

• Channel Configuration: Available in various densities, typically offering 4, 8, or 16 independent channels per module to match field equipment layouts.

• Signal Types: Supports standard analog outputs, including 4-20mA DC current loops and 0-10V DC voltage signals, alongside discrete digital outputs like 24V DC transistor or relay contact signals.

• Digital-to-Analog Resolution: High-precision analog conversion typically utilizing 12-bit to 16-bit resolution to ensure smooth and accurate valve positioning.

• Output Load Impedance: Analog current outputs generally support a maximum loop resistance of 600 to 750 Ohms at 24V DC.

• Galvanic Isolation: Provides robust channel-to-bus and channel-to-channel isolation, often rated up to 1500V AC, protecting the internal DCS backplane from field faults.

• Temperature and Environment: Rated for extended operating ranges from -20°C to 70°C, with compatibility for Class 1, Division 2 hazardous locations.

Product Advantages

Foxboro Output Modules are engineered for high-availability process plants where unexpected downtime is costly:

• Advanced Redundancy Options: Supports fully redundant, 1-to-1 hot-standby configurations, ensuring that a backup module seamlessly assumes control if the primary module encounters a fault.

• Integrated HART Communication: Many analog models pass Highway Addressable Remote Transducer (HART) digital signals directly through the analog current loop, allowing for remote smart valve calibration and diagnostics.

• Comprehensive Fault Diagnostics: Features continuous self-testing, including open-circuit (wire-break) detection and short-circuit protection, immediately reporting the exact fault location to the central control room.

• Fail-Safe State Configuration: Allows engineers to program predefined fallback states (such as Hold Last Value, Fail to Minimum, or Fail to Maximum) for each channel in the event of a communication loss with the processor.

• High Component Density and Compact Design: Fits efficiently into standard Foxboro modular baseplates, reducing the overall footprint required inside terminal cabinets.

Product Applications

These modules are widely used across global continuous processing and heavy industrial sectors:

• Chemical and Petrochemical Refining: Regulating the precise position of feed valves, steam control actuators, and chemical dosing pumps.

• Oil and Gas Production: Controlling emergency shutdown valves, choke valves, and water injection pumps on offshore platforms and transmission pipelines.

• Power Generation: Governing turbine speed controllers, boiler feedwater control valves, and cooling tower fan contactors.

• Pulp and Paper Mills: Managing slurry flow valves, chemical bleaching feed rates, and paper machine speed regulators.

• Water and Wastewater Management: Operating large effluent discharge gates, chemical treatment dosing systems, and variable speed pump drives.

Important Precautions

To preserve hardware integrity and guarantee dependable process operations, users must adhere to these guidelines:

• External Power Constraints: Ensure that the external loop power supply matches the module specifications. Applying excessive external voltage to a current-output channel can cause overheating and permanent hardware failure.

• Inductive Load Protection: When using digital output modules to drive inductive loads like external mechanical relays or solenoids, always install external flyback diodes or surge suppressors to eliminate high-voltage back-EMF spikes.

• Single-Point Shield Grounding: Signal cables should be shielded twisted pairs, with the shield grounded at only one point—typically the marshalling cabinet side—to avoid creating ground loops that distort output accuracy.

• Backplate Insertion: Never force a module into its baseplate slot. Ensure the guide pins align correctly to avoid bending the high-density backplane connectors, which can cause intermittent communication issues.

• Unused Channel Treatment: Configure unused output channels as "disabled" within the Foxboro configuration software to prevent the system from generating false open-circuit diagnostic alarms.

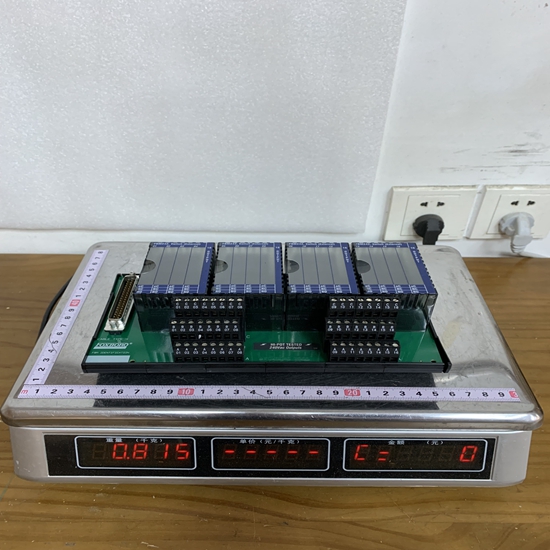

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
