ECPT81-0 B&R

ECPT81-0 B&R I / O module

Product  Description：

B&R Industrial Automation, a member of the ABB Group, provides a highly modular and high-performance I/O system known primarily through the X20, X67, and XV series. These modules are designed to bridge the gap between field-level sensors or actuators and the central control system. B&R I/O modules are famous for their "three-part" design—consisting of a terminal block, an electronic module, and a bus module—which allows for extreme flexibility and ease of maintenance in complex automation architectures.

Product Parameters

B&R I/O modules are characterized by their high density and precision timing capabilities:

• Module Density: Compact designs offering up to 16 digital or 8 analog channels within a slice width of only 12.5mm.

• Bus System Compatibility: Natively supports POWERLINK, EtherCAT, CANopen, and Modbus TCP through the use of various bus controllers.

• Digital Input/Output Voltage: Standard 24V DC for industrial logic, with specialized modules for 120V/230V AC applications.

• Analog Resolution: High-resolution conversion ranging from 12-bit to 16-bit for temperature (PT100/PT1000), voltage, and current signals.

• Sampling and Cycle Times: Supports X20 re-production technology with jitter-free response times as low as 1 microsecond in high-speed configurations.

• Environmental Protection: Standard modules are rated IP20 for cabinet installation, while X67 series modules are rated IP67 for machine-mount applications without an enclosure.

Product Advantages

The B&R I/O system offers unique engineering benefits centered around efficiency and lifecycle management:

• Unique Three-Part Design: The separation of the terminal block from the electronic component allows for pre-wiring of the cabinet. This means electronic modules can be added or swapped later without touching the wiring.

• Hot-Pluggable Capability: Modules can be replaced during operation without shutting down the entire system, which significantly reduces downtime during maintenance.

• Integrated Functional Safety: B&R’s "SafeIO" modules allow standard and safety-related signals (up to SIL3/PLe) to be mixed within the same I/O station, simplifying the safety architecture.

• Precision Real-Time Technology: Utilizing NetTime technology, these modules can synchronize I/O transitions with a precision of 1 microsecond, regardless of the network cycle time.

• Advanced Diagnostics: Every channel is equipped with status monitoring that can detect short circuits, wire breaks, and overloads, reporting these faults directly to the Automation Studio software.

Product Applications

B&R I/O modules are a staple in high-end machinery and distributed control environments:

• Adaptive Manufacturing: Used in high-speed packaging and printing lines where sub-millisecond synchronization between sensors and actuators is required.

• Mobile Automation: Deployed in construction and agricultural machinery due to the ruggedness of the X90 and X20 systems which handle high vibration and extreme temperatures.

• Energy Management: Monitoring power quality and managing load distribution in wind turbines and solar power plants.

• Plastics Processing: Precise temperature control and pressure monitoring in injection molding machines via specialized analog and temperature modules.

• Robot Cell Integration: Interfacing various end-of-arm tools and safety sensors with the main machine controller.

Important Precautions

To ensure the longevity and reliability of a B&R I/O system, the following practices are recommended:

• Bus Module Alignment: When assembling X20 slices, ensure that the bus modules on the DIN rail are perfectly aligned. Misalignment can lead to intermittent backplane communication errors.

• Shielding Concept: For analog and communication modules, use the integrated shield connection terminals provided by B&R. Proper 360-degree shielding is necessary to maintain high signal-to-noise ratios.

• Current Supply Calculation: Always calculate the total current consumption on the X2X Link (the internal backplane bus). If the power limit is exceeded, an additional power supply module must be inserted.

• Terminal Block Seating: Ensure that the electronic module is fully clicked into the bus module before attaching the terminal block. A partial connection can lead to overheating at the contact points.

• Firmware Synchronization: Ensure that the hardware revision of the physical module matches the configuration in the Automation Studio project to avoid "Identity Conflict" errors during system startup.

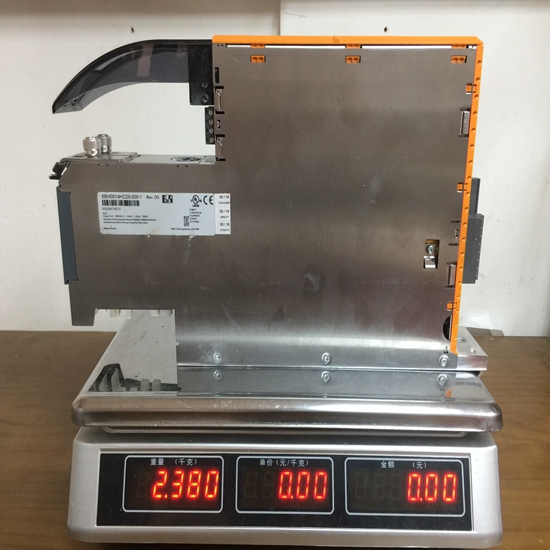

The structure and details of the product：
