E1041 Beijer

E1041 Beijer HMI

Product  Description：

The E1041 features a 3.5-inch TFT-LCD color display, providing a clear and sharp interface for monitoring industrial machinery. Unlike basic text displays, the E1041 supports complex graphics, trend curves, and alarm handling. It is built with a rugged plastic housing and a resistive touchscreen that can be operated with gloves, making it ideal for factory floor environments. The unit acts as a communication hub, supporting a vast library of drivers to connect with PLCs from major manufacturers like Siemens, Rockwell Automation, Mitsubishi, and Schneider Electric.

Product Parameters

• Display Type: 3.5-inch TFT-LCD with 64k colors

• Resolution: $320 \times 240$ pixels (QVGA)

• Processor: 32-bit RISC processor for fast screen updates and logic execution

• External Memory: Includes a slot for a CompactFlash card to be used for logging data or transferring projects

• Communication Ports: One RS-232 port, one RS-422/485 port, and one 10/100 Base-T Ethernet port

• Input Power: $24 \text{ VDC}$ (typical consumption is $0.2 \text{ A}$)

• Enclosure Rating: IP66 when panel-mounted, ensuring protection against dust and high-pressure water jets

• Operating Temperature: $0\text{°C}$ to $50\text{°C}$ ($32\text{°F}$ to $122\text{°F}$)

• Flash Memory: $8 \text{ MB}$ for project application storage

Product Advantages

A major advantage of the E1041 is its Excellent Connectivity. With the integrated Ethernet port, it can easily be integrated into a local area network for remote access, FTP transfers, and email notifications. The E-Designer Software provides a user-friendly configuration environment that supports recipe management, multi-language support, and advanced password security levels.

The Compact and Durable Design allows it to be installed in small control panels where space is a premium, without sacrificing the durability required for heavy industrial use. Furthermore, the E1041 offers Backward Compatibility, allowing users of older Beijer models to migrate their projects with minimal re-engineering, which significantly protects the customer's long-term investment in software development.

Important Considerations and Precautions

When installing the Beijer E1041, users should pay close attention to the Mounting Gasket. To maintain the IP66 integrity, the gasket must be seated correctly against a flat, clean surface on the control cabinet door. Power Quality is another critical factor; while the unit operates on 24 VDC, voltage fluctuations outside the specified range can cause the unit to reboot or lose unsaved log data.

Regarding the CompactFlash Card, never remove the card while the "busy" LED is active, as this can result in file system corruption. Additionally, because the screen uses a Resistive Touchscreen, users should avoid using sharp objects like screwdrivers or pens to touch the display, as this can puncture the outer polyester film and render the touch functionality useless. For cleaning, use only a soft cloth and mild detergents; avoid harsh chemicals that can degrade the plastic overlay.

Product Applications

The Beijer E1041 is a versatile HMI used across a variety of light and heavy industries.

• Food and Beverage: Used in small-scale bottling or packaging lines where wash-down protection (IP66) is necessary.

• HVAC Systems: Controlling and monitoring industrial chillers, boilers, and air handling units in large commercial buildings.

• Water Treatment: Monitoring flow rates, chemical levels, and pump status in small municipal or industrial water treatment skids.

• Material Handling: Acting as the operator interface for small conveyors, palletizers, and sorting machines.

• Textile Industry: Controlling weaving or dyeing machines where multi-language support is often required for global deployments.

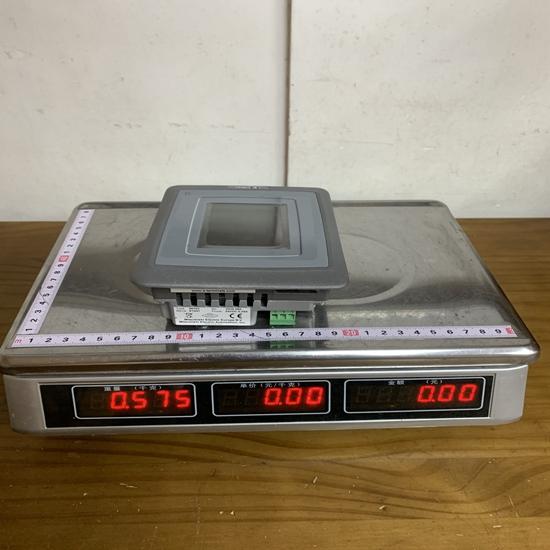

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：

BEIJER QTERM-K65

BEIJER E300-04380A

BEIJER ELECTRONICS E300 04380A

BEIJER E300 04380A

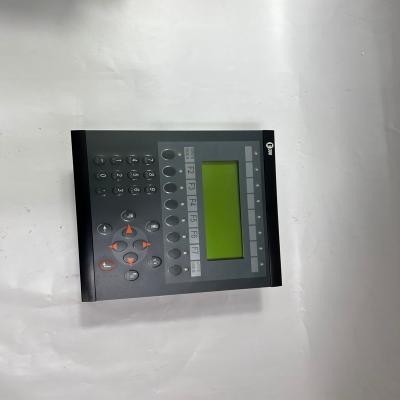

BEIJER E1101
