DSTD110A 57160001-TZ/1 ABB Bailey

DSTD110A 57160001-TZ/1 ABB Bailey Relay Input Module

Product  Description：

• • A Relay Input Module serves as a crucial interface between the industrial process and the digital control system. It detects the open or closed state of external relay contacts, pushbuttons, limit switches, or other discrete devices. The "relay" aspect in the input module typically refers to the nature of the field device providing the input, which often uses dry contacts, rather than the module itself containing relays for input. These modules condition these incoming electrical signals into a format understandable by the controller, often providing isolation to protect the sensitive electronics of the control system from field wiring noise or voltage surges.



    Key Functions



    • Signal Detection: Detects the presence or absence of a voltage or the open/closed state of a dry contact.

    • Electrical Isolation: Provides galvanic isolation between the field devices and the control system, protecting the control system from ground loops, voltage spikes, and electrical noise from the industrial environment.

    • Noise Filtering: Includes internal circuitry to filter out electrical noise, ensuring reliable and accurate signal recognition.

    • Status Indication: Often features LEDs to visually indicate the status of each input channel (on/off).

    • Signal Conversion: Converts field-level signals into logic levels compatible with the PLC/DCS backplane.



    Product Parameters (Typical)



    Specific parameters vary by module type (e.g., IMDSIxx series for INFI 90).

    • Number of Channels: Typically 8, 16, or 32 independent input channels per module.

    • Input Voltage Range: Common ranges include 24 VDC, 48 VDC, 125 VDC, or 120 VAC.

    • Input Current: The current required to energize the input (e.g., a few milliamps).

    • Isolation Voltage: The dielectric strength between field inputs and internal logic (e.g., 500 V AC/DC).

    • Response Time: The time taken for the module to recognize an input change, typically in milliseconds.

    • Power Consumption: The power required for the module's operation (e.g., 370mA at +5V DC).

    • Operating Temperature: A wide industrial operating range (e.g., -20°C to +70°C).

    • Humidity: Relative humidity range (e.g., 5% to 95% RH, non-condensing).

    • Physical Form Factor: Designed to fit into standard ABB Bailey racks/chassis (e.g., INFI 90 racks).



    Product Advantages



    • Robust Isolation: Excellent electrical isolation protects the control system from harsh field conditions, improving system reliability and uptime.

    • High Reliability: Designed for continuous operation in demanding industrial environments, reducing the likelihood of unexpected failures.

    • Versatility: Supports various input voltage levels (AC and DC), allowing integration with a wide array of field devices.

    • Noise Immunity: Built-in filtering capabilities ensure accurate detection of input signals, even in electrically noisy environments.

    • Simplified Troubleshooting: Channel-specific LED indicators aid in quick diagnosis of field device status and wiring issues.

    • System Integration: Seamlessly integrates with the existing ABB Bailey control architecture, leveraging the capabilities of the INFI 90 or NET 90 system.



    Precautions



    • Compatibility: Always verify that the specific relay input module is compatible with your ABB Bailey controller, rack, and system configuration.

    • Wiring Standards: Adhere strictly to ABB Bailey's wiring guidelines and local electrical codes. Incorrect wiring can lead to module damage, inaccurate readings, or safety hazards.

    • Input Voltage Matching: Ensure the field device's output voltage and type (AC/DC) precisely match the specifications of the input module to prevent damage.

    • ESD Protection: Always follow electrostatic discharge (ESD) precautions when handling these modules to protect sensitive internal components.

    • Environmental Conditions: Operate within the specified temperature, humidity, and vibration limits to ensure long-term reliability.

    • Proper Termination: Use the correct termination units and wiring practices as per ABB Bailey documentation for optimal signal integrity.



    Product Applications



    ABB Bailey Relay Input Modules are widely applied in various industrial sectors where reliable monitoring of discrete field signals is essential for process control and automation.

    • Process Control: Monitoring the status of pumps, valves, motor starters, and emergency stop buttons in chemical plants, oil and gas refineries, and pharmaceutical facilities.

    • Power Generation: Detecting the open/closed status of breakers, switches, and interlocks within power plants.

    • Manufacturing and Discrete Automation: Sensing the position of parts on assembly lines, the state of safety gates, or the presence of products using limit switches and proximity sensors.

    • Water and Wastewater Treatment: Monitoring pump operational status, tank levels (via float switches), and valve positions.

    • Building Automation: Receiving signals from fire alarms, security sensors, or HVAC system mode switches.



    Typical Applications



    • Monitoring pump run status: A relay contact on a pump's motor starter could be wired to a relay input module, indicating if the pump is running or stopped.

    • Detecting valve position: Limit switches on an automated valve can provide feedback to the input module, confirming if the valve is fully open or closed.

    • Emergency stop circuits: Hardwired emergency stop buttons often use relay contacts to signal an immediate shutdown, which is monitored by the input module for safety interlocks.

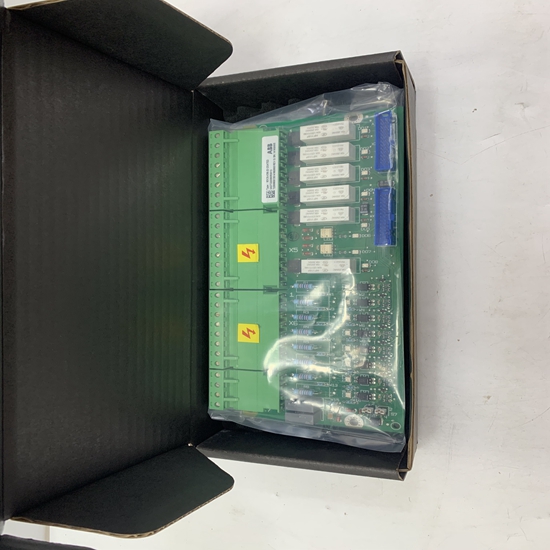

The structure and details of the product：
