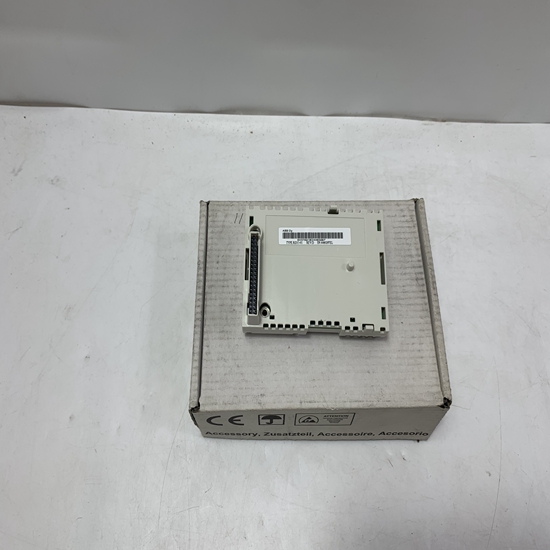

DATX100 3ASC25H208 ABB Bailey

DATX100 3ASC25H208 ABB Bailey analog module

Product  Description：

• • ABB Bailey analog modules are highly accurate and reliable electronic circuit boards designed to convert continuous analog signals (like voltage, current, or resistance) from field instruments into digital data that the control system can understand and process. Conversely, analog output modules take digital commands from the control system and convert them back into continuous analog signals to drive actuators suchors, valves, and motor speed controllers. They are typically installed in module mounting units (MMUs) or termination units (TUs) within the DCS rack.



    Key Functions



    • Analog Input Modules (e.g., IMASI02, IMASI23, IMFEC12):

      • Signal Conditioning: Filter, amplify, and linearize raw analog signals from sensors (e.g., thermocouples, RTDs, pressure transmitters, flow meters).

      • Analog-to-Digital Conversion (ADC): Convert conditioned analog signals into digital values for use by the controller.

      • Isolation: Provide electrical isolation to protect the control system from noise and ground loops in the field.

      • Cold Junction Compensation (for thermocouples): Automatically adjust readings for ambient temperature variations at the module's terminals.

    • Analog Output Modules (e.g., IMASO11):

      • Digital-to-Analog Conversion (DAC): Convert digital control commands from the controller into precise analog signals.

      • Signal Driving: Output standard industrial signals (e.g., 4-20 mA, 1-5 VDC) to drive actuators.

      • Open Circuit/Short Circuit Detection: Some modules may include diagnostic features for output wiring integrity.



    Product Parameters (Typical, varies significantly by module type and specific model)



    • Input/Output Channels: Commonly 8 or 16 channels per module.

    • Input Signal Types (for Input Modules): 4-20 mA, 1-5 VDC, 0-10 VDC, 0-1 VDC, 0-5 VDC, -10 VDC to +10 VDC, thermocouples (Type J, K, T, E, R, S, B, N), RTDs (Pt100, Ni100), mV signals.

    • Output Signal Types (for Output Modules): 4-20 mA, 1-5 VDC.

    • Resolution: Typically 12-bit to 24-bit for high accuracy.

    • Accuracy: Often 0.1% of full scale or better.

    • Isolation: Channel-to-channel and channel-to-earth isolation.

    • Update Rate: Speed at which analog values are sampled or outputs are updated (e.g., 10 times per second).

    • Power Consumption: Varies, typically a few Watts per module.

    • Operating Temperature: Standard industrial range (e.g., -25°C to +70°C or -40°C to +70°C).

    • Mounting: Designed to fit specific ABB Bailey MMUs or TUs.

    • Compatibility: Specific to INFI 90, Symphony Harmony/Melody, or Symphony Plus platforms.



    Product Advantages



    • High Accuracy and Resolution: Provides precise measurement and control of process variables, crucial for critical applications.

    • Robustness and Reliability: Built for continuous operation in demanding industrial environments, ensuring system stability.

    • Versatility: Supports a wide array of analog signal types, allowing connection to diverse field instruments.

    • System Integration: Designed for seamless integration within ABB Bailey DCS architectures, simplifying system design and maintenance.

    • Diagnostics: Many modules include built-in diagnostics (e.g., open circuit detection, module health) to aid in troubleshooting.

    • Hot Swappability: Many modules can be replaced without powering down the entire system, minimizing downtime.



    Precautions



    • ESD (Electrostatic Discharge) Sensitivity: Analog modules contain sensitive electronic components. Always use proper ESD precautions when handling to prevent damage.

    • Compatibility: Verify the specific module's compatibility with your existing ABB Bailey DCS hardware (MMU, controller type) and software version.

    • Wiring Integrity: Ensure correct and secure wiring of field signals to the termination unit. Improper wiring can lead to inaccurate readings, noise, or module damage.

    • Grounding: Proper grounding practices are essential to minimize electrical noise and ensure signal integrity.

    • Environmental Conditions: Operate and store modules within their specified temperature and humidity ranges to prevent degradation or failure.

    • Power Supply: Confirm that the power supply to the module mounting unit meets the power requirements of all installed modules.

    • Firmware/Configuration: Ensure the module's firmware and configuration settings match the system requirements and application logic. Incorrect configuration can lead to erroneous readings or control.

    • Qualified Personnel: Installation, maintenance, and troubleshooting should only be performed by qualified personnel familiar with industrial control systems and ABB Bailey specific equipment.



    Product Applications



    ABB Bailey analog modules are extensively used in process industries where precise measurement and control of continuous variables are critical. Their applications include:

    • Power Generation: Control of boiler combustion, turbine speed, generator excitation, and water treatment in power plants.

    • Oil and Gas: Monitoring and control of flow, pressure, and temperature in refineries, pipelines, and offshore platforms.

    • Chemical Processing: Regulation of reactor temperatures, levels, and flow rates in chemical plants.

    • Pulp and Paper: Control of drying processes, chemical recovery, and stock preparation.

    • Water and Wastewater Treatment: Monitoring and control of levels, flows, and chemical dosages.

    • Metals Industry: Temperature control in furnaces, flow control in cooling systems.



    Typical Applications



    • Monitoring Tank Levels: An analog input module reading a 4-20 mA signal from a level transmitter in a chemical storage tank.

    • Controlling Valve Positions: An analog output module sending a 4-20 mA signal to a proportional control valve to regulate flow rate.

    • Temperature Control: Analog input modules reading thermocouple signals from a furnace, and analog output modules adjusting fuel flow to maintain a set temperature.

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
