D100532 02 METSO

D100532 02  METSO Communication Processor

Product  Description：

Metso Communication Processor modules (often utilized within legacy Metso DNA systems, now supported under Valmet automation architecture) are highly specialized industrial networking units. These modules function as dedicated data highways and protocol translators within a Distributed Control System (DCS) framework. By managing the complex routing of real-time control traffic, external diagnostics, and fieldbus communication, they ensure that primary control nodes can exchange critical process variables without processing latency.

Product Parameters

The operational and interface capacities of Metso Communication Processors are built to manage dense data environments across industrial networks:

• Processor Interface Type: Often integrated as an Advanced Control Network (ACN) Real-Time Node component or specialized interface board.

• Supported Protocols: Native support for standard industrial fieldbuses including Profibus DP, Profinet, Modbus TCP/RTU, and Ethernet/IP, alongside proprietary Metso system buses.

• Data Capacity Limits: Capable of handling broad tag databases, with specialized variants managing hundreds of active communication tags simultaneously for seamless DCS mirroring.

• Isolation Rating: Built-in galvanic and optical isolation typically rated up to 1500V AC to protect core backplane processors from field-side electrical interference.

• Data Transfer Speed: Supports standard Ethernet speeds up to 100 Mbps or 1 Gbps for modern node architectures, alongside adjustable baud rates for legacy serial loops.

• Environmental Limits: Rated for challenging industrial conditions, typically maintaining stable performance across an ambient operating temperature range of -10°C to 60°C.

Product Advantages

Metso Communication Processors offer robust architectural benefits designed for heavy industrial processing plants:

• Offloaded Network Handling: By isolating network stack execution and protocol translation onto a dedicated communication board, the primary process controller maintains an uninterrupted, deterministic control cycle.

• Sub-system Interoperability: Acts as a flexible gateway that enables legacy equipment, third-party PLCs, and newer smart instrumentation to seamlessly report to the overarching Metso DNA platform.

• High Availability and Redundancy: Supports redundant network loop configurations, ensuring that if a primary network path or switch suffers a fault, data rerouting occurs automatically with zero loss of control visibility.

• Advanced System Diagnostics: Features deeply embedded diagnostic layers that monitor network traffic health, packet loss, and port integrity, allowing operations teams to identify communication bottlenecks instantly.

• Industrial Grade Longevity: Designed with high-end component selections that resist thermal cycling and vibration, ensuring a prolonged lifecycle in continuous 24/7 operating environments.

Product Applications

These modules serve as critical data nodes in industries where process downtime leads to extreme capital losses:

• Pulp and Paper Processing: Managing data loops between headboxes, coating machines, and chemical preparation areas where multi-variable synchronization is required.

• Mining and Mineral Refining: Interfacing local crusher controls, milling circuits, and flotation monitoring devices with the plant-wide DCS.

• Power and Biomass Generation: Handling the rapid data transmission needed to monitor boiler efficiency, turbine parameters, and auxiliary emission controls.

• Chemical Processing Plants: Linking localized safety instrumented systems and remote I/O stations to the main control room console for real-time risk assessment.

• Water and Waste Management: Supporting distributed communication layouts across widespread filtration, pumping, and treatment facilities.

Important Precautions

To preserve hardware integrity and avoid intermittent network dropped frames, the following constraints must be respected:

• Power Disconnection Rules: Always switch off the system rack power before inserting, removing, or swapping a communication processor card. Hot-plugging a module not explicitly designated for live swap can warp contact pins or cause backplane memory corruption.

• Enclosure Environmental Control: Keep the modules housed in an enclosure rated IP54 or higher. Conductive dust, chemical fumes, or moisture settling on high-density communication circuits will induce trace tracking and premature module failure.

• Network Loop Configuration: When deploying a redundant network architecture, verify that network switches and processor ports are configured correctly to support loop protocols. Improper loops without loop-prevention logic can cause a broadcast storm that disables all node communications.

• Cable Shielding Practices: Use only high-quality, double-shielded twisted pair cables for fieldbus connections. The cable shield must be grounded at a single, designated earth point inside the cabinet to prevent ground loops from injecting noise into the data frames.

• Firmware Synchronization: Ensure that the module's internal configuration parameters and firmware revisions perfectly align with the current engineering software version running on the master DCS node to avoid configuration rejection errors during system boot.

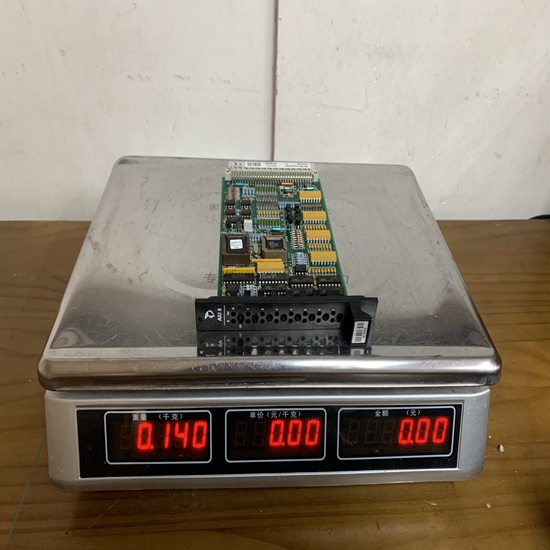

The structure and details of the product：
