D0-06DR AutomationDirect

D0-06DR AutomationDirect Controller module

Product  Description：

The D0-06DR is powered by an AC source, typically ranging from 100 to 240 VAC. It features a fixed I/O configuration consisting of 20 discrete inputs and 16 discrete outputs. The inputs are 12-24 VDC sinking or sourcing, allowing for flexibility when connecting different types of sensors. The outputs are relay-based, which provides the ability to switch both AC and DC loads up to 2 Amps per point. For communication, the unit is equipped with two built-in RS-232C serial ports that support industry-standard protocols such as Modbus RTU (master/slave) and DirectNET. Additionally, it contains four option module slots that allow for the addition of analog I/O, high-speed counters, or extra discrete points. The memory capacity includes 7.6k words of ladder memory and 7.4k words of V-memory (data registers).

Product Advantages

One of the primary advantages of the D0-06DR is its exceptional I/O density; providing 36 total I/O points in a micro brick design is a significant space-saver for control panels. The inclusion of relay outputs is a major benefit as it allows the PLC to interface directly with high-voltage or high-current devices without the need for interposing relays. Its expandability is another highlight, as the four option slots provide a migration path if the application's requirements grow. Furthermore, the dual communication ports allow for simultaneous connection to an HMI (Human Machine Interface) and a programming device or a secondary network, which is rare for PLCs in this size and price range.

Important Considerations and Precautions

Users must ensure that the power supply wiring adheres to the specified voltage range to avoid permanent damage to the internal circuitry. Because the D0-06DR uses relay outputs, it is important to consider the mechanical life of the relays, especially in high-frequency switching applications where solid-state outputs might be more appropriate. Proper ventilation is required during installation to prevent overheating, as the compact design generates heat when all I/O points are active. Additionally, when using the 24 VDC auxiliary power output provided by the PLC for field devices, users must be careful not to exceed the rated current capacity (typically 300 mA), as overloading this output can cause the PLC to shut down or fail. Finally, ensure that the PLC is mounted in an enclosure that protects it from conductive dust and corrosive gases.

Product Applications

The D0-06DR is widely used across various industries for localized control tasks. In the packaging industry, it is frequently employed to control small conveyor systems, labeling machines, and wrapping equipment. In building automation, it handles HVAC control, lighting sequences, and pump management. It is also a popular choice for material handling applications, such as small palletizers or sorting stations, where space is at a premium but high I/O counts are necessary. Due to its robust relay outputs and ease of programming via the DirectSOFT software, it is also commonly found in custom machine tools, water treatment skids, and agricultural automation systems like automated feeding or greenhouse climate control.

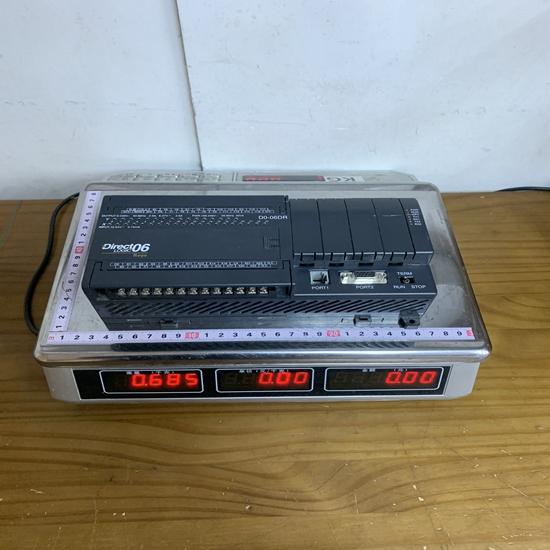

The structure and details of the product：
