CL9-CNR-23 MITSUBISHI

CL9-CNR-23 MITSUBISHI Interface Module

Product  Description：

The Mitsubishi Interface Module serves as a critical bridge between Mitsubishi Electric's Programmable Logic Controllers (PLCs), such as the MELSEC iQ-R or Q Series, and various external networks, peripheral devices, or computer systems. These modules facilitate high-speed data exchange, allowing for seamless integration of industrial automation components into a unified communication architecture.

Product Parameters

While specific technical specifications vary depending on the model (such as the RJ71GP21-SX for CC-Link IE Control or the QJ71C24N for Serial communication), the following parameters are standard across the product line:

• Communication Speed: Supports high-speed data transmission ranging from 10 Mbps for standard Ethernet/Serial up to 1 Gbps for CC-Link IE Field networks.

• Maximum Connectable Stations: Depending on the network type, these modules can manage from 32 to 120 stations per network segment.

• Transmission Distance: Supports distances from 15 meters for RS-232 connections to several kilometers when utilizing fiber optic repeaters.

• Current Consumption: Typically ranges between 0.20A and 0.60A at 5V DC, drawing power directly from the PLC backplane.

• Mounting Position: Designed for standard I/O slots on the MELSEC main or extension base units.

• Interface Ports: Features various physical connectors including RJ45 for Ethernet, 9-pin D-sub for Serial, or specialized screw terminals for Fieldbus.

Product Advantages

Mitsubishi Interface Modules are engineered to provide high reliability and ease of use in demanding industrial environments.

• Seamless Integration: These modules are designed to work natively with GX Works3 or GX Works2 software, allowing for simple parameter-based configuration without the need for complex communication programming.

• High-Speed Synchronization: They offer deterministic communication, ensuring that time-critical data is delivered with minimal jitter, which is essential for motion control and high-speed processing.

• Robust Diagnostics: Built-in LED indicators and software-based diagnostic tools allow for real-time monitoring of link status and rapid troubleshooting of network errors.

• Scalability: The modular design allows users to add multiple interface types to a single PLC rack, enabling a single controller to communicate across different protocols simultaneously.

Important Considerations

To ensure optimal performance and longevity of the hardware, users should adhere to the following precautions:

• Noise Interference: Always use shielded twisted pair (STP) cables for Ethernet-based communication and ensure proper grounding to prevent data loss or hardware damage caused by electromagnetic interference.

• Power Cycling: Never install or remove the interface module while the PLC base unit power is turned on, as this can lead to internal circuit failure.

• Network Loading: Avoid exceeding the recommended maximum number of stations or data volume per link scan, as this can increase communication latency and impact system stability.

• Firmware Compatibility: Ensure that the module's firmware version is compatible with the CPU module and the engineering software version being used.

Product Applications

Mitsubishi Interface Modules are utilized across a wide array of sectors to modernize manufacturing processes.

• Automotive Assembly: Used to coordinate complex robotic cells and transfer lines by linking various controllers and sensors via CC-Link IE.

• Data Logging and IIoT: Connecting factory floor PLCs to high-level PC systems or cloud gateways for real-time production monitoring and predictive maintenance.

• Packaging and Material Handling: Facilitating communication between the main PLC and remote I/O stations or frequency inverters to manage high-speed sorting systems.

• Semiconductor Manufacturing: Providing ultra-precise timing and data synchronization for cleanroom equipment and chemical processing units.

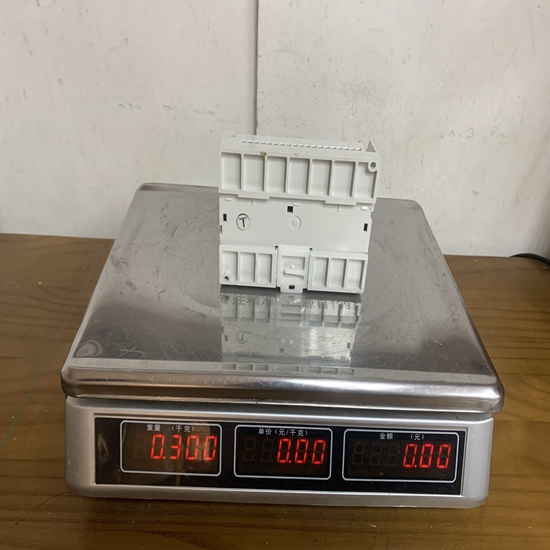

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
