CIMR-G7A22P2 YASKAWA

CIMR-G7A22P2 YASKAWA Analog Output Modules

Product  Description：

Yaskawa Analog Output Modules are high-performance interface units designed for the MP series machine controllers and Sigma servo systems. These modules convert digital values processed by the controller's CPU into continuous analog voltage or current signals. They serve as the critical control link to external devices that require infinitely variable regulation rather than simple on/off states, such as variable frequency drives (VFDs), proportional hydraulic valves, pneumatic regulators, and analog chart recorders.

Product Parameters

The technical capabilities of Yaskawa Analog Output Modules focus on precision, response speed, and signal fidelity:

• Output Signal Ranges: Configurable for standard voltage ranges including -10V to +10V DC, 0V to 10V DC, and standard current loops like 4mA to 20mA DC.

• Digital-to-Analog Resolution: High-resolution conversion, typically featuring 16-bit precision, which translates to an internal digital scale of -31250 to +31250 or 0 to 60000 for smooth signal gradation.

• Channel Density: Available in multi-channel configurations, commonly providing 2, 4, or 8 independent output channels per module.

• Conversion Cycle Time: Fast update rates, with modern modules achieving conversion speeds as fast as 100 microseconds to 1 millisecond across all channels.

• Maximum Output Load: Voltage outputs support a minimum load resistance of 1 kiloohm, while current outputs can drive maximum loop resistances up to 500 ohms.

• Galvanic Isolation: Robust electrical isolation using photocouplers between the internal controller bus and the external analog output terminals to prevent ground loops.

Product Advantages

Yaskawa Analog Output Modules deliver significant operational benefits designed for demanding industrial automation environments:

• High Accuracy and Low Drift: Engineered with temperature-compensated circuits that keep gain and offset errors remarkably low, ensuring high linearity across the entire operating temperature range.

• Synchronized Motion Integration: Designed to work in perfect tandem with Yaskawa's motion engine, allowing the analog output signal to adjust dynamically based on real-time speed, torque, or position data.

• Advanced Parameter Configuration: Through the MPE720 software, users can easily apply digital scaling, output limits, and bias adjustments directly to the module without modifying complex ladder code.

• Onboard Diagnostics: Features advanced system monitoring capabilities, including open-circuit detection for 4-20mA loops and internal hardware fault logging for rapid troubleshooting.

• Rugged Industrial Design: Built to withstand high-vibration environments and compliant with strict global electromagnetic compatibility (EMC) standards to resist factory-floor electrical noise.

Product Applications

These modules are widely utilized across industries that demand precise, variable control over mechanical and thermal processes:

• Inverter and VFD Speed Control: Sending reference velocity commands to non-networked variable frequency drives or older generation spindle motors.

• Fluid and Pneumatic Regulation: Driving proportional valves to manage hydraulic pressure in metal stamping presses or regulating pneumatic actuators in packaging machinery.

• Web Tension Systems: Adjusting the torque commands sent to magnetic particle brakes or clutches in paper and film winding applications to keep material tension consistent.

• Heating Control Integration: Interfacing with power controllers or SCRs (Silicon Controlled Rectifiers) to regulate heating elements in industrial ovens and plastic extrusion barrels.

• External Metering: Outputting real-time machine speed, current load, or system errors to physical analog meters mounted on the external control cabinet door.

Important Precautions

To preserve signal integrity and avoid damage to the module or connected devices, the following guidelines must be followed:

• Strict Shielding Protocols: Always use shielded twisted-pair (STP) cables for all analog signal lines. Connect the cable shield to the designated ground terminal only on the controller side to prevent ground loops.

• Physical Separation: Route all analog output cables away from high-voltage AC lines, motor cables, and VFD power wires by a distance of at least 100 millimeters to avoid inductive noise coupling.

• Unused Channel Treatment: For any output channels that are not actively wired to an external device, configure them as "disabled" or "unused" within the software settings to prevent unnecessary processing and wandering voltages.

• Correct Load Matching: Never connect an external device that exceeds the module’s rated output impedance or drive current. Overloading a voltage channel or short-circuiting a current loop will cause improper regulation or cause thermal damage to the module.

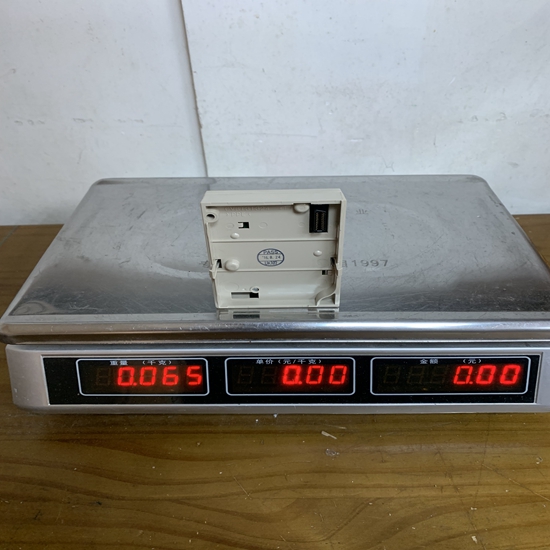

The structure and details of the product：
