CC-TCF901 HONEYWELL

HONEYWELL CC-TCF901 Control Firewall

Product  Description：

The nine-port, Control Firewall (CF9) serves as the Fault Tolerant Ethernet (FTE) communications

center for a given Series C control network. It consists of a Control Firewall module that plugs into

its associated CF9 input/output termination assembly (IOTA) as shown in the following figure.

The CF9 provides eight ports for FTE connections to C300s and Series C FIMs within a Series C

cabinet as well as FTE Bridge modules (FTEB) in a Series A Chassis I/O chassis. It has a ninth port

for an uplink connection to the supervisory FTE network and level 2 control area. It provides

network security by

l Rejecting all Ethernet messages not needed for control,

l Giving priority to traffic on downlink ports over ingress traffic on the uplink port, if the fabric

becomes saturated, and

l Allowing only valid C300-compliant messages to pass on to the C300 domain.

Please refer to the following documents for planning and design details for the Experion system

in general and the Fault Tolerant Ethernet supervisory network. For the sake of brevity, this Guide

does not repeat the applicable general guidelines, considerations, cautions, and so on that are

covered in these other Guides.

l Control Hardware Planning Guide

l Server and Client Planning Guide

l Fault Tolerant Ethernet Overview and Implementation Guide

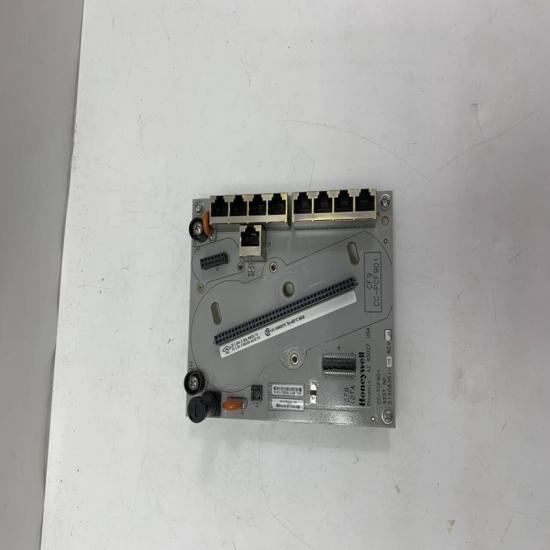

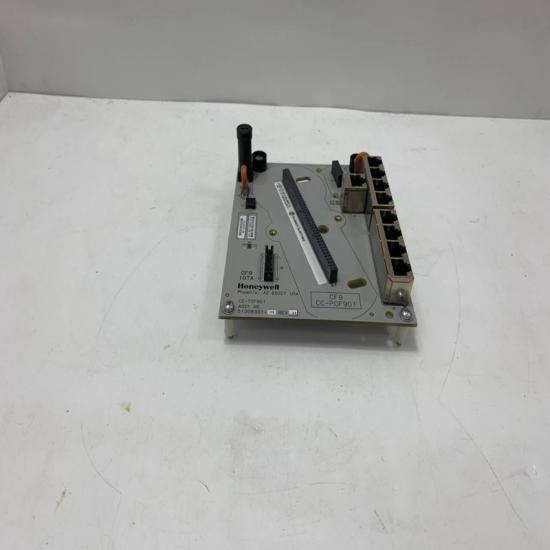

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
