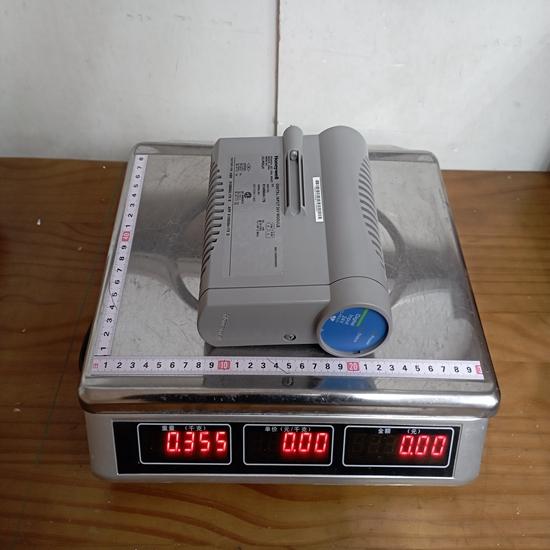

CC-PDIL01 51405040-175 HONEYWELL

The CC-PDIL01 is a 24 VDC Digital Input module that belongs to the Series C I/O family. It is designed to be mounted onto an I/O Termination Assembly (IOTA). Unlike traditional rack-based I/O, the Series C hardware features a vertical orientation that optimizes cabinet space and improves thermal management. The module "plugs" into the IOTA, which handles the physical field wiring, allowing for easy replacement of the electronic component without disturbing the wire connections. It supports up to 32 channels, providing high-density monitoring in a compact form factor.

Product Parameters

• Model Number: CC-PDIL01

• Part Number: 51405040-175

• Input Type: 24 VDC Discrete (Digital) Input

• Number of Channels: 32 Channels

• Input Voltage Range: 18 to 30 VDC

• Isolation: Galvanic isolation between field side and system side to protect the controller from surges

• Current Consumption: Low power consumption design, typically drawing power from the IOTA backplane

• On/Off Threshold: Logic "0" (Off) typically below 5 VDC; Logic "1" (On) typically above 13 VDC

• Response Time: Fast scanning capability, typically 1 ms to 5 ms depending on controller configuration

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Coating: Often comes with Conformal Coating (indicated by the CC prefix) to resist humidity and chemical contaminants

Product Advantages

A major advantage of the CC-PDIL01 is its High Channel Density, allowing for 32 inputs per module, which significantly reduces the number of I/O carriers and cabinet space required for large-scale operations. The Hot-Swappable Design allows maintenance teams to replace a faulty module while the system remains powered, ensuring continuous process uptime.

The module also features Advanced Self-Diagnostics, which can detect internal electronic failures and report them immediately to the Experion operator station. Furthermore, its integration with the Series C IOTA simplifies wiring and reduces installation labor costs. The use of Conformal Coating provides superior protection in harsh industrial environments like refineries or chemical plants, where corrosive gases might otherwise damage sensitive circuitry.

Important Considerations and Precautions

When installing the CC-PDIL01, it is essential to ensure that the Field Power Supply is a regulated 24 VDC source. Unregulated power can cause "flickering" logic states or damage the input opto-couplers. Static Electricity Protection is vital; always wear a grounded wrist strap when handling the module to prevent ESD damage to the surface-mount components.

Users must also verify the Compatibility of the IOTA; the CC-PDIL01 must be paired with the correct 32-channel Digital Input IOTA to function correctly. Ensure that the Maximum Current Rating for the common return is not exceeded if multiple field devices are sharing a single return wire. Finally, when configuring the module in the Experion software, ensure the Filter Time (debounce time) is set correctly to prevent mechanical contact bounce from being interpreted as multiple false signals.

Product Applications

The Honeywell CC-PDIL01 is extensively used across various process industries where reliable discrete monitoring is required.

• Oil and Gas Production: Monitoring the status of emergency shutdown (ESD) pushbuttons and flame detectors.

• Chemical Plants: Tracking the position of manual valves (Open/Closed) and the status of motor starters in a manufacturing cell.

• Power Generation: Monitoring auxiliary contacts on circuit breakers and high-limit pressure switches in steam systems.

• Pharmaceutical Manufacturing: Interfacing with proximity sensors on high-speed bottling lines and cleanroom door interlocks.

• Water Treatment: Receiving signals from float switches in tanks and flow switches in piping networks to manage pump sequencing.
