C6930-0050 BECKHOFF

C6930-0050 BECKHOFF Controller module

Product  Description：

The Beckhoff C6930-0050 is a compact, control cabinet-ready Industrial PC (IPC) designed for space-saving installation. It belongs to the C69xx series, featuring a robust aluminum housing and a flexible mounting design that allows it to be fastened to the rear or side panels of a cabinet. This specific model provides high-performance computing power suitable for demanding automation and visualization tasks.

Product Specifications

• Processor: Intel Core i7-4700EQ, 2.4 GHz, 4 cores (4th generation).

• Memory: 4 GB DDR3L RAM (configured as 2 x 2048 MB SO-DIMM).

• Storage: 240 GB 3D-flash SSD (2.5-inch) installed in one of the two available drive slots.

• Interfaces: 2 x 100/1000BASE-T Gigabit Ethernet ports, 4 x USB 3.0 ports, 1 x RS232 serial port, and 1 x DVI-D connector.

• Expansion: 2 x PCIe module slots for Beckhoff PCIe modules or for leading out motherboard interfaces.

• Power Supply: 24 V DC with an integrated SATA RAID 1 controller for disk mirroring.

• Cooling: Equipped with a speed-controlled fan cartridge with double ball bearing fans, accessible from the front.

• Dimensions: 90 mm x 235 mm x 121 mm (W x H x D) without the mounting plate.

• Protection Class: IP20.

• Operating Temperature: 0°C to 55°C.

Product Advantages

• Scalable High Performance: Utilizing multi-core Intel Core i7 technology, the C6930 handles complex axis control, high-volume data processing, and short cycle times with ease.

• Compact and Flexible Design: The small footprint and the ability to mount the PC on different sides of the housing make it ideal for crowded control cabinets. All connectors are conveniently located on the front side.

• Data Security and Availability: The integrated RAID controller allows for disk mirroring across two SSD/HDD slots, ensuring system operation even if one drive fails. It also supports an optional integrated Uninterruptible Power Supply (UPS).

• Industrial Durability: The aluminum housing provides excellent heat dissipation and physical protection, while the use of 3D-flash SSDs eliminates moving parts in the storage system, increasing vibration resistance.

• Standard-Based Connectivity: With dual Gigabit Ethernet and multiple USB 3.0 ports, it integrates seamlessly into EtherCAT networks and connects easily to modern peripherals.

Important Considerations

• Environmental Clearances: To ensure proper air circulation and cooling, a minimum of 5 cm (approximately 2 inches) of free space is required above and below the unit.

• Power Requirements: The unit requires a stable 24 V DC power source. Ensure the power supply is sized correctly to handle the maximum power consumption of approximately 60W.

• Battery Maintenance: The lithium battery for the real-time clock is accessible behind a front flap. It should be checked periodically to prevent data loss of BIOS settings.

• Software Compatibility: This hardware is optimized for use with TwinCAT automation software and Windows IoT Enterprise. Ensure your specific software versions are compatible with the 4th generation Intel architecture.

• Safety Protocols: Installation and commissioning should only be performed by trained specialists familiar with national safety standards and electrical regulations.

Product Applications

• Machine Engineering: Acts as a central processing unit for complex machinery requiring high-speed synchronization via EtherCAT.

• Advanced HMI and Visualization: Suitable for running complicated Human-Machine Interface applications that require high-resolution graphics and responsive touch inputs.

• Data Preprocessing and IoT: Serves as an edge gateway for collecting, filtering, and preprocessing large amounts of sensor data before sending it to higher-level cloud systems.

• Motion Control: Used in extensive axis control applications where precise timing and high computational overhead for kinematics are necessary.

• Process Automation: Ideal for control tasks in manufacturing and logistics where reliability and space efficiency are paramount.

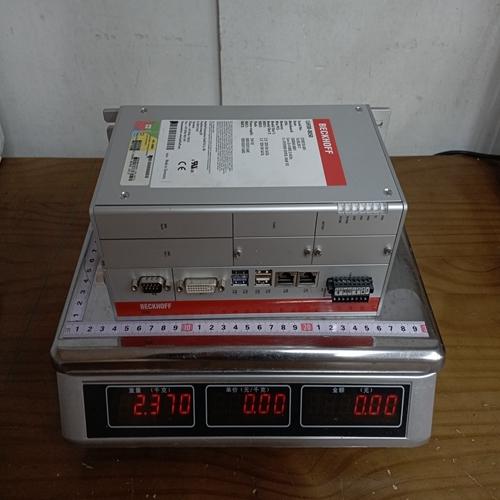

The structure and details of the product：
