BMXDDI3202K SIEMENS

BMXDDI3202K SIEMENS Relay Input Module

Product  Description：

A SIEMENS Relay Input Module is an essential interface component designed for industrial automation systems, particularly within the SIMATIC controller family and distributed I/O platforms. This module acts as an electrical bridge between high-voltage, noisy, or isolated field devices and low-voltage controller backplanes. By utilizing electromechanical relays or solid-state switching circuits, it converts high-voltage digital input signals—such as AC main supplies or floating DC contacts—into clean, galvanically isolated digital logic signals that a central processing unit (CPU) can safely interpret.

Product Specifications

• Input Channels: Typically available in configurations of 4, 8, 16, or 32 channels per module.

• Nominal Input Voltage: Operates across versatile ranges including 24 V DC, 48 V DC, 115 V AC, and 230 V AC depending on the module variation.

• Galvanic Isolation: High dielectric isolation rated up to 500 V DC or 1500 V AC between channels, as well as between field circuits and the backplane bus.

• Input Signal Logic: Compatible with potential-free dry contacts or potential-bound active switching circuits.

• Response Delay Time: Turn-on and turn-off times generally range between 5 ms and 15 ms for mechanical relay inputs, with microsecond-level switching for solid-state options.

• Power Supply: Receives internal logic power via the SIMATIC backplane bus (24 V DC supply) while isolating the field-side loop power.

• Status Indication: Integrated channel status LEDs indicating signal states (ON/OFF) and group error/diagnostics for channel faults.

• Operating Temperature Range: Standard operational limits span from -20°C to +60°C, with specialized versions supporting extended temperature ranges.

• Enclosure Protection: Standard IP20 ingress protection intended for installation in industrial control cabinets.

Key Product Advantages

• Robust Electrical Isolation: Provides exceptional galvanic protection that isolates fragile CPU electronics from severe field voltage surges, ground loops, and transient spikes.

• High Voltage Versatility: Allows low-voltage controllers to read signals directly from higher-voltage AC or DC field equipment without requiring external interposing relays.

• Exceptional Noise Immunity: Mechanical and relay-based inputs inherently filter out high-frequency electromagnetic interference, stray coupling, and line noise.

• Simplified Panel Design: Reduces panel complexity, wiring volume, and installation footprint by eliminating the need for standalone terminal-mounted relays.

• Diagnostics and Hot-Swapping: Supports real-time diagnostic reporting for open circuits or module failures, and allows seamless live replacement in modular systems.

Important Operational Considerations

• Contact Wear and Lifespan: Electromechanical relay contacts experience mechanical and electrical wear over time, so switching frequency must be evaluated during design.

• Inductive Load Suppression: When reading signals from inductive devices like large contactors or solenoid coils, snubber circuits or flywheel diodes should be installed across the source to prevent contact arc degradation.

• Minimum Switching Current: Ensure the field signal delivers the minimum wet voltage and current required by the module to break contact oxidation layers reliably.

• Derating at High Ambient Temperatures: Operating the module near its upper temperature limits with all channels simultaneously energized may require current derating or forced cabinet ventilation.

• Safe Installation Protocols: Field wiring often carries hazardous mains voltages (such as 120/230 V AC), so field power must be de-energized before terminal block servicing.

Industrial Applications

• Process Industry Instrumentation: Reading status signals from field switches, limit sensors, and alarm contacts across chemical processing and oil refineries.

• Power and Energy Utilities: Monitoring high-voltage circuit breakers, switchgear positions, and substation auxiliary devices in energy distribution networks.

• Factory and Machinery Automation: Interfacing with motor starters, mechanical limit switches, safety interlocks, and control pushbuttons in automotive or packaging lines.

• Building and Infrastructure Systems: Monitoring HVAC equipment states, water treatment pump alarms, and main distribution panel fault contacts.

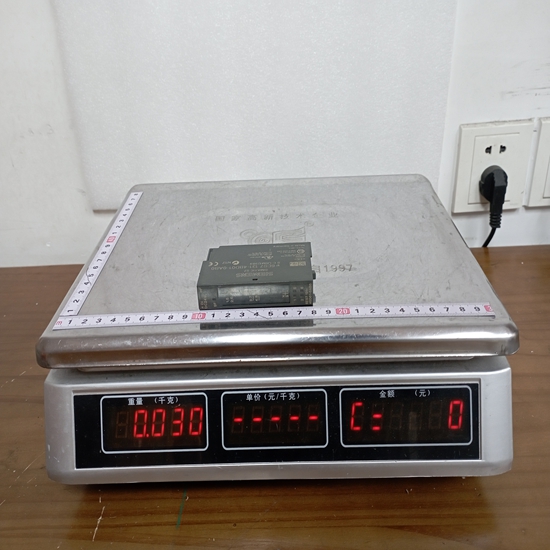

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
