ATS22C11S6 SCHNEIDER

ATS22C11S6 SCHNEIDER analog module

Product  Description：

Schneider Electric Analog Modules, predominantly featured in the Modicon X80, TM3, and TM5 expansion series, are high-precision interface components designed to process continuous signals in industrial control environments. These modules bridge the gap between physical process variables—such as temperature, pressure, flow, and level—and the digital processing environment of Schneider Electric programmable automation controllers (ePACs and PLCs). By converting real-world analog voltage or current signals into high-resolution digital values (and vice versa for output modules), they allow for precise measurement, closed-loop PID control, and automated regulation of dynamic industrial processes.

Product Parameters

The technical specification profile of Schneider Electric Analog Modules highlights high measurement resolution, fast conversion, and strong channel isolation:

• Channel Configuration: Available in various channel densities, typically ranging from 2, 4, 8, to 16 channels per module for inputs or outputs, as well as mixed input/output configurations.

• Signal Types and Ranges: Supports standardized industrial range signals, including 0-10V, -10V to +10V, 0-20mA, and 4-20mA, as well as direct temperature sensor connections including Resistance Temperature Detectors (RTD Pt100/Pt1000) and Thermocouples (Types J, K, T, E, N, R, S, B).

• Analog Resolution: High-precision Analog-to-Digital (ADC) and Digital-to-Analog (DAC) converters providing 12-bit, 15-bit, or 16-bit resolution for fine-grained process control.

• Channel Isolation: High galvanic isolation ratings, typically specified at 1500V AC or higher between channels, field-side power, and the central system backplane bus to eliminate ground loop interference.

• Conversion Speed: Rapid cycle times, ranging from sub-millisecond conversion rates per channel for high-speed dynamic applications to configurable digital filtering times for noisy environments.

• Accuracy and Temperature Drift: High base measurement accuracy (often within 0.1 percent of full scale at ambient temperature) with minimal thermal drift across the operational temperature range.

Product Advantages

Schneider Electric Analog Modules deliver significant engineering and operational advantages across process and discrete automation networks:

• Flexible Channel Software Configuration: Individual channels can be software-configured for different signal ranges (e.g., 4-20mA on channel 0 and 0-10V on channel 1) within the EcoStruxure engineering software, eliminating the need for physical hardware jumpers.

• Advanced Diagnostic Capabilities: Onboard diagnostics continuously monitor channel health, automatically identifying wire breaks, out-of-range values, short circuits, and power supply failures, which accelerates troubleshooting.

• Enhanced Noise Immunity: Built with sophisticated active filtering and hardware shielding, these modules maintain signal integrity and measurement stability even in severe electromagnetic environments near high-voltage motor drives.

• Hot-Swapping and Continuity: Select advanced module lines support live swapping (removal and insertion under power) without stopping the controller or interrupting communication on neighboring I/O modules.

• Seamless Software Integration: Fully integrated into the EcoStruxure Control Expert and EcoStruxure Machine Expert environments, offering pre-configured scaling function blocks, auto-calibration routines, and standardized unit conversions.

Product Applications

These analog modules are critical elements in systems requiring precise measurement and closed-loop control:

• Chemical and Process Industries: Monitoring reactor temperatures, inline pressure transmitters, flow rates, and pH sensors in continuous fluid processing.

• Water and Wastewater Management: Regulating variable frequency drives for pump speeds based on continuous tank level readings and pipeline pressure feedback.

• HVAC and Environmental Control: Processing ambient temperature, relative humidity, and air pressure differential readings to control modulating dampers and chilled water valves.

• Packaging and Web Tension Control: Interfacing with load cells and ultrasonic distance sensors to manage material unwind tension and web positioning on high-speed packaging machinery.

• Thermal Processing and Furnaces: Managing multi-zone heating elements through high-density thermocouple input cards connected directly to industrial burner controls.

Important Precautions

To maintain precise measurement accuracy and protect the hardware from damage, the following installation guidelines must be followed:

• Cable Shielding and Grounding: Always use high-quality twisted-pair shielded cables for analog signal wiring. Ensure the cable shield is grounded at a single point (typically at the control cabinet entry) to prevent circulating ground currents from corrupting measurements.

• Physical Wire Routing: Keep low-level analog wiring strictly separated from high-voltage AC power lines, motor leads, and switching relay outputs. Never run analog cables through the same wire duct as variable frequency drive power outputs.

• Voltage and Current Mode Verification: Double-check the module software channel settings before applying field power. Wiring a current loop source into a channel configured for voltage mode can over-current and damage internal sensing circuitry.

• Power Supply Quality: Use clean, regulated 24V DC loop power supplies with low ripple voltage. Power supply electrical noise directly impacts the measurement accuracy of 4-20mA loops.

• Cold Junction Compensation: When using thermocouple input modules, ensure that external cold-junction compensation sensors or designated terminal blocks are installed correctly according to manual instructions to avoid significant thermal measurement offsets.

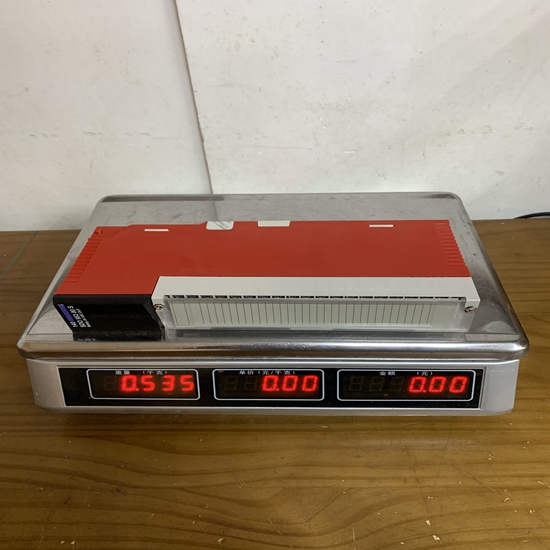

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
