AI0288 BACHMANN

AI0288 BACHMANN I / O module

Product  Description：

Bachmann electronic GmbH provides highly specialized I/O modules designed for the M1 automation system. These modules are engineered for extreme environmental conditions, particularly in wind energy, maritime, and heavy industrial sectors. They serve as the interface between the real-time processor and the field level, offering high-speed data acquisition and precise control in a modular, DIN-rail mounted format.

Product Parameters

The technical characteristics of Bachmann I/O modules are centered on high density and rugged performance:

• Input and Output Density: Configurations typically range from 8 to 32 channels per module, allowing for high-density I/O in a small footprint.

• Signal Types: Broad support for Digital (24V DC), Analog (voltage, current, resistance, and PT100/PT1000), and specialized counter or encoder signals.

• Resolution: High-resolution analog modules often feature 16-bit or 24-bit A/D conversion for ultra-precise measurement.

• Sampling Rate: Capable of synchronized sampling with bus cycle times as low as 100 microseconds, suitable for fast control loops.

• Operating Temperature: Rated for extreme ranges, typically from -30°C to +60°C, with specialized "Cold Climate" versions available.

• Protection and Isolation: Built-in galvanic isolation (up to 500V or higher) between channels and the backplane bus to ensure signal integrity.

Product Advantages

Bachmann I/O modules are distinguished by their "best-in-class" reliability and integration features:

• Extreme Ruggedness: Designed to withstand high vibration, mechanical shock, and salt-mist environments, making them the standard for offshore wind turbines and marine vessels.

• Integrated Diagnostics: Comprehensive self-monitoring capabilities, including wire-break detection, short-circuit protection, and module-level health status reported directly to the CPU.

• Real-Time Performance: Full integration into the M1 backplane bus ensures deterministic data transfer, which is critical for motion control and grid synchronization.

• Ease of Maintenance: Modules feature a unique "cold-plugging" capability and clear status LEDs for each channel, allowing for rapid field service and troubleshooting.

• Long-Term Availability: Bachmann provides extended product lifecycles, ensuring that identical replacement modules are available for decades to support long-term infrastructure.

Product Applications

These modules are primarily found in mission-critical infrastructure where downtime is not an option:

• Wind Energy: Controlling blade pitch, yaw systems, and monitoring vibration and strain across the turbine structure.

• Maritime and Offshore: Managing engine control, ballast systems, and bridge automation on ships and offshore platforms.

• Grid Protection and Control: Synchronizing renewable energy sources to the power grid and monitoring power quality in substations.

• Industrial Machinery: Providing high-speed control for heavy-duty presses, metalworking machines, and automated assembly lines.

• Transport and Infrastructure: Controlling railway signaling, tunnel ventilation, and large-scale movable bridge systems.

Important Precautions

To ensure the longevity and safety of the Bachmann M1 system, the following precautions are required:

• Backplane Connection: Ensure the module is firmly seated and locked onto the M1 backplane. A loose connection can cause intermittent bus errors or system resets.

• Shielding and Grounding: Use shielded cables for all analog and high-speed digital signals. The shield should be connected to the Bachmann shield busbar to minimize electromagnetic interference.

• Supply Voltage Monitoring: Ensure the external 24V DC field power supply is stable and within the specified tolerance. Voltage drops can lead to incorrect signal readings or output failures.

• Correct Wiring Terminals: Bachmann uses high-quality spring-loaded or screw terminals. Ensure that wire ferrules are used and that no loose strands are present, which could cause short circuits.

• Configuration Consistency: Before replacing a module, verify that the new hardware revision is compatible with the existing software configuration in the SolutionCenter engineering tool.

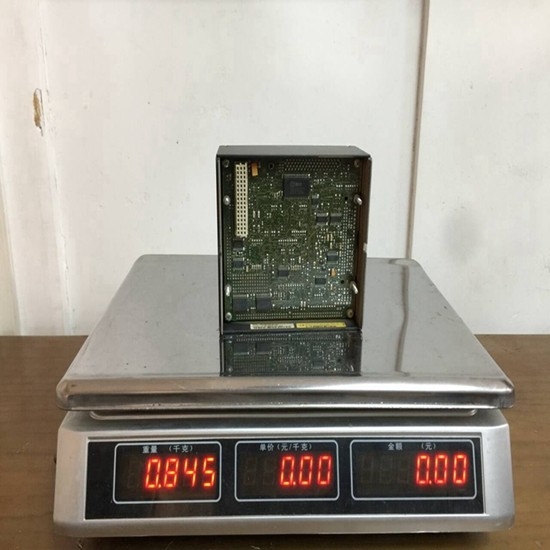

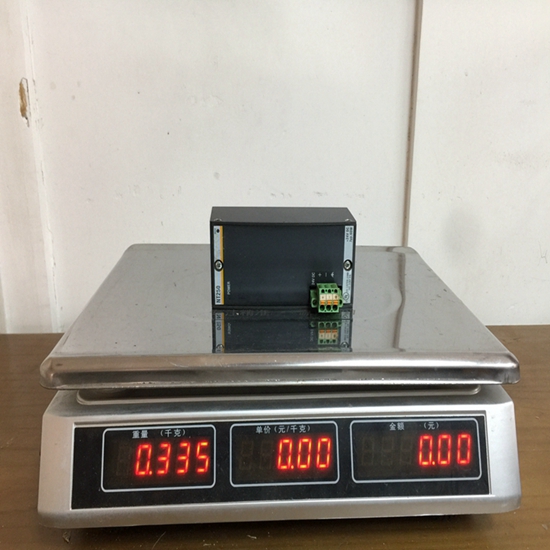

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
