ADC5483-D200136L METSO

ADC5483-D200136L METSO Interface Module

Product  Description：

Metso Interface Modules, widely utilized within legacy MAX Control Systems and modern DNA distributed control system platforms, function as highly efficient communication and signal translation links. These modules are specifically engineered to interface peripheral field devices, subsystems, and specialized digital networks with the central controller processing unit. By providing clean signal isolation, precise protocol translation, and high-speed data buffering, they ensure that diverse automated subsystems interact smoothly within a unified plant architecture.

Product Parameters

The technical composition of a Metso Interface Module centers on data integrity, high-speed conversion, and industrial-grade electrical characteristics:

• Communication Protocols: Fully supports standard industrial open protocols such as Profibus DP, Modbus RTU/TCP, Foundation Fieldbus, and Ethernet/IP.

• Interface Ports: Configuration variations include high-speed RJ45 Ethernet ports, standard D-Sub connectors for serial configurations, and fiber-optic terminals for long-distance connectivity.

• Galvanic Isolation: High-grade internal optocouplers provide electrical isolation typically rated between 1500V AC and 2500V AC to shield core electronics from field-side voltage spikes.

• Data Processing Cycle: Internal processing and data refreshing rates operating on low millisecond cycles to guarantee real-time data synchronization.

• Power Consumption: Low power distribution footprint, designed to operate efficiently off standard 24V DC cabinet power rails with minimal thermal emission.

• Mounting and Form Factor: Engineered as a compact, high-density plug-in card for chassis installation or standard DIN rail mounting inside industrial enclosures.

Product Advantages

Metso Interface Modules offer distinctive performance benefits tailored for long-term continuous processing environments:

• Seamless Third-Party Integration: Simplifies the process of connecting specialized external machinery, such as motor control centers, weigh scales, or analysis instruments, directly into the primary control network.

• Advanced Subsystem Diagnostics: Features sophisticated internal firmware that monitors link quality, tracks packet errors, and provides explicit hardware health data directly to the operator workstation.

• Network Offloading capability: Operates using an independent internal processor to manage complex data packaging and protocol handshakes, keeping the main controller CPU free for critical logic routines.

• Industrial Hardening: Constructed with high-grade components and optional conformal coatings to withstand corrosive gases, humidity, and wide ambient temperature shifts.

• Hot-Swap Support: Engineered to allow module removal and replacement while the system bus is energized, avoiding costly process shutdowns during maintenance operations.

Product Applications

These interface modules are applied in massive, data-heavy process automation loops globally:

• Pulp and Paper Processing: Interfacing multi-variable paper machine scanners, moisture sensors, and specialized refining controllers with the master automation network.

• Mining and Mineral Extraction: Coordinating long-distance field networks for conveyor systems, crushers, and chemical flotation tanks.

• Power and Steam Generation: Connecting continuous emissions monitoring systems (CEMS) and boiler auxiliary controllers to the central operations center.

• Chemical Production Plants: Managing communication lines with distant valve manifolds, tank level radars, and hazardous area enclosures.

• Waste-to-Energy Infrastructure: Linking autonomous turbine, flue gas treatment, and sorting subsystems into a centralized supervisory system.

Important Precautions

To avoid data interruption and hardware deterioration, the following installation and operational instructions must be observed:

• Addressing Configuration Accuracy: Ensure that all hardware node switches or software address registers are uniquely assigned before adding the module to a live network, as address duplication can cause widespread communication drops.

• Shielding and Noise Suppression: Network data cables must feature high-quality industrial shielding. The shield must be properly grounded at the designated single termination point to prevent electromagnetic noise from causing cyclic redundancy check (CRC) errors.

• Bus Termination Compliance: For serial network lines like RS-485 or Profibus DP, ensure that appropriate termination resistors are activated or physically wired at both end nodes of the segment to avoid signal reflection.

• Power Sequence Alignment: Always power up external communication networks in accordance with system design documents. Abrupt voltage variations on external lines prior to module initialization may trigger network fault alerts on the host controller.

• Card Handling and ESD Safety: The internal logic circuits of the interface module are vulnerable to electrostatic discharge. Always utilize a grounded anti-static wrist strap and handle the module strictly by its plastic frame or faceplate during installation.

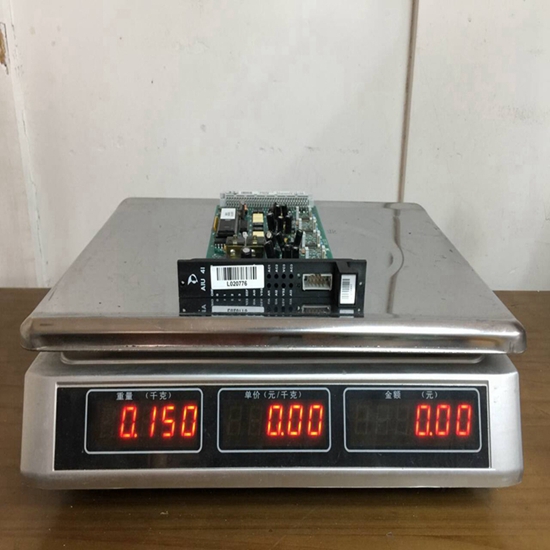

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
