ADC5483-D200136L-5 METSO

ADC5483-D200136L-5 METSO Relay Input Module

Product  Description：

Metso Relay Input Modules, heavily utilized within the MaxDNA and DNA distributed control systems (DCS), are specialized industrial components designed to interface high-power or electrically isolated discrete signals with a central process controller. These modules are specifically engineered to accept voltage signals from field-side relay contacts, dry contacts, or digital switches, converting these physical states into isolated digital data. By leveraging robust physical separation, these modules protect the sensitive internal processor electronics from the high-voltage transients and electrical surges commonly found in heavy industrial plants.

Product Parameters

The technical architecture of a Metso Relay Input Module is defined by high insulation ratings and reliable signal processing capabilities:

• Channel Density: Typically available in configurations of 8 channels or 16 channels per module to balance space efficiency with wire management.

• Input Voltage Range: Designed to accept a wide range of wetting voltages, commonly supporting 24V DC, 48V DC, 110V AC/DC, and 220V AC/DC inputs.

• Isolation Voltage: Features high-grade galvanic isolation, often rated up to 2500V AC between the field circuits and the internal system logic bus.

• Input Current: Low power consumption per point, with input loop currents typically maintained between 2mA and 10mA to minimize heat generation.

• Filter and Debounce Time: Integrated hardware filtering with software-adjustable debounce settings, generally ranging from 1ms to 20ms to prevent false triggering from mechanical contact bounce.

• Power Consumption: Optimized for low power draw from the system backplane, ensuring stable rack temperatures during full channel activation.

Product Advantages

Metso Relay Input Modules are highly regarded in continuous process industries due to their durability and advanced diagnostic integration:

• Excellent Noise Immunity: The inherent isolation provided by the internal circuitry makes these modules exceptionally resistant to electromagnetic interference (EMI) and radio frequency interference (RFI).

• High System Availability: Built to support hot-swapping functionality, allowing maintenance personnel to replace a faulty module while the rack is powered on without disrupting the rest of the control segment.

• Comprehensive Diagnostics: Equipped with onboard intelligence that monitors the health of the module, indicating line faults, internal communication errors, or channel failures directly to the DCS operator interface.

• Rugged Environmental Protection: Often features high-quality conformal coating as a standard specification to safeguard the components against moisture, dust, and corrosive chemical vapors.

• Simplified Field Wiring: Designed with removable terminal blocks that allow for quick disconnection, reducing wiring errors and minimizing mean time to repair (MTRI) during plant turnarounds.

Product Applications

These input modules are widely deployed across infrastructure projects and heavy industrial facilities:

• Pulp and Paper Mills: Monitoring safety interlocks, limit switches on heavy rollers, and valve position feedback in harsh, humid processing areas.

• Power Plant Automation: Interfacing with circuit breaker auxiliary contacts, emergency stop buttons, and generator trip signals where signal reliability is critical.

• Mining and Metal Processing: Tracking conveyor belt alignment switches, safety pull-cords, and hopper level switches in highly vibrant and dusty environments.

• Chemical and Refining Facilities: Collecting discrete data from flame detectors, pressure switches, and gas hazard sirens across distributed processing blocks.

• Steam and Gas Turbine Control: Managing high-speed discrete inputs associated with turbine trip valves and auxiliary lubrication pump statuses.

Important Precautions

To maintain safe operation and prolong the service life of the module, the following guidelines must be strictly observed:

• Voltage Verification: Ensure that the external wetting voltage applied to the field contacts matches the exact rating of the specific Metso module model. Applying excess voltage will cause irreversible damage to the input circuits.

• Grounding Consistency: The module chassis and the system enclosure must be connected to a clean, low-impedance instrument earth ground to ensure that the isolation barriers function correctly.

• Inductive Load Isolation: When the field contacts are shared with inductive loads such as heavy solenoids or magnetic starters, install external surge suppressors across the inductive load to prevent massive back-EMF spikes from reaching the input terminal.

• Correct Slot Insertion: Before sliding the module into the base unit or carrier rack, check for bent pins on the backplane connector. Forcefully inserting a module with misaligned pins can ruin the backplane receiver socket.

• Terminal Torquing: When tightening field wires into the terminal blocks, use the manufacturer-specified torque limits. Overtightening can crack the internal PCB solder joints, while undertightening leads to high-resistance connections and intermittent signal losses.

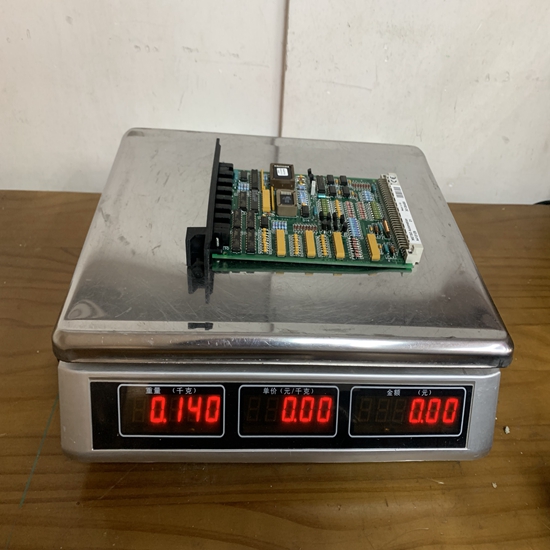

The structure and details of the product：
