A9F04104 SCHNEIDER

A9F04104 SCHNEIDER Power module

Product  Description：

The A9F04104 is a single-pole (1P) protective device that combines thermal and magnetic tripping mechanisms. As part of the Acti9 system, it represents a high standard of safety and continuity of service. It features the VisiSafe and VisiTrip innovations, which provide visual indicators for the status of the circuit and the cause of tripping, making it one of the most user-friendly and safe circuit breakers on the market. The unit is designed for easy mounting on a standard symmetrical DIN rail and is fully compatible with Schneider Electric’s wide range of distribution systems and accessories.

Product Parameters

• Range: Acti9

• Product Name: Acti9 iC60

• Product Type: Miniature circuit breaker (MCB)

• Device Short Name: iC60N

• Poles Description: 1P

• Number of Protected Poles: 1

• Rated Current (In): $4 \text{ A}$

• Network Type: AC/DC

• Trip Unit Technology: Thermal-magnetic

• Curve Code: C (Designed for protecting circuits with moderate inrush currents)

• Breaking Capacity: $50 \text{ kA}$ Icu at $220-240 \text{ V}$ AC $50/60 \text{ Hz}$ conforming to EN/IEC 60947-2, and $6000 \text{ A}$ Icn at $230 \text{ V}$ AC $50/60 \text{ Hz}$ conforming to EN/IEC 60898-1.

• Utilisation Category: Category A conforming to EN 60947-2

• Control Type: Toggle

• Mounting Mode: Fixed, DIN rail mounted

• Electrical Durability: 10,000 cycles

• Mechanical Durability: 20,000 cycles

Product Advantages

One of the primary advantages of the A9F04104 is its VisiSafe feature, which guarantees a safe downstream maintenance environment by ensuring the green indicator is visible only when the contacts are physically open. The VisiTrip indicator significantly reduces downtime by providing a clear red flag on the face of the device when a fault has occurred, allowing for rapid troubleshooting.

The Class-2 Insulation ensures the safety of the operator during the entire life of the installation, as it maintains a safe distance between the device front face and internal live parts. Additionally, its High Breaking Capacity within a compact $18 \text{ mm}$ width allows it to be used in demanding industrial environments where space is limited but protection requirements are high.

Important Considerations and Precautions

When installing the A9F04104, ensure that the Terminal Tightening Torque is set to $2 \text{ N·m}$ to prevent loose connections that can lead to overheating. This device is a Type C Curve breaker, meaning it trips at 5 to 10 times the rated current; therefore, it should not be used for loads with extremely high starting surges that require a Type D curve, nor for sensitive electronic loads that might require a Type B curve.

Always verify that the Upstream Protection is coordinated with this breaker to ensure selectivity in the event of a fault. Because the device is rated IP20, it must be installed within a suitable distribution board or enclosure to prevent contact with moisture or conductive dust. Lastly, do not attempt to open the casing of the MCB, as it is a sealed unit and tampering will void the safety certifications and warranty.

Product Applications

The A9F04104 is widely used for the protection of low-power electrical circuits across various sectors.

• Commercial Buildings: Protecting lighting circuits and small power outlets in offices, shopping malls, and hospitals.

• Industrial Automation: Serving as a protective device for control circuits, PLCs, and small solenoid valves within control panels.

• Infrastructure: Used in public lighting systems and transport infrastructure for reliable circuit isolation.

• HVAC Systems: Protecting small fan motors and control electronics within heating and air conditioning units.

• DC Circuits: Suitable for use in some DC applications such as telecommunications and solar PV control systems (up to $72 \text{ V}$ DC per pole).

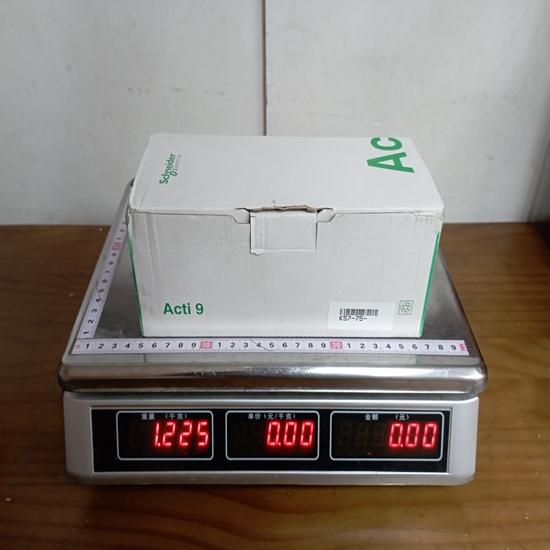

The structure and details of the product：
