A2USHCPU-S1 MITSUBISHI

A2USHCPU-S1 MITSUBISHI Operator unit

Product  Description：

Mitsubishi Electric Operator Units, commonly known as Human Machine Interfaces (HMIs) or Graphic Operation Terminals (GOT), are the primary interaction points between human operators and automated machinery. These units translate complex machine data into intuitive visual graphics, allowing users to monitor system status, adjust setpoints, and troubleshoot alarms in real time. The flagship GOT2000 and GOT SIMPLE series represent the pinnacle of this technology, offering high-resolution touchscreens and seamless integration with the broader Mitsubishi automation ecosystem.

Product Parameters

The technical profile of a Mitsubishi Operator Unit is defined by its display quality, processing power, and connectivity:

• Display Sizes: A wide variety of screen dimensions ranging from compact 3.7-inch monochrome units to large 15-inch high-definition TFT color displays.

• Resolution and Color: High-resolution screens (up to XGA 1024x768 pixels) supporting up to 65,536 colors for realistic and clear graphic representation.

• Touch Panel Technology: Utilizes high-durability analog resistive or capacitive touch screens designed to withstand over one million presses.

• Internal Memory: Integrated flash memory (ranging from 9MB to 128MB) for storing screen projects, fonts, and logging data, with expandable SD card support.

• Communication Ports: Equipped with versatile interfaces including Ethernet, RS-232, RS-422/485, and USB ports for programming and peripheral connection.

• Input Voltage: Standard industrial power requirements, typically 24V DC for most models, with some larger units supporting 100-240V AC.

Product Advantages

Mitsubishi Operator Units provide significant operational benefits that go beyond simple screen display:

• Seamless PLC Integration: Features "FA Transparent" functions that allow users to debug a connected PLC directly through the HMI, saving significant setup time.

• Multi-Touch and Gesture Support: Advanced models support two-point touch for safety-critical operations (like simultaneous pressing) and gestures like swiping and pinching to zoom.

• Robust Data Logging: Capable of collecting data from PLCs and other devices, storing it in CSV format for analysis, and displaying it in real-time trend graphs.

• Environmental Durability: Most front panels are IP67F rated, making them resistant to water jets, oil mist, and dust commonly found in factory environments.

• Enhanced Security: Supports password protection and operator authentication levels, ensuring that only authorized personnel can change critical machine parameters.

Product Applications

These units serve as the visual "face" of automation across many different industries:

• Manufacturing Production Lines: Displaying real-time OEE (Overall Equipment Effectiveness) data, production counts, and cycle times for factory managers.

• Food and Beverage Processing: Managing recipes and ingredient mixing ratios through easy-to-use graphical sliders and numerical inputs.

• Automotive Assembly: Providing step-by-step visual assembly instructions for operators and highlighting fault locations on robotic arms.

• Material Handling and Logistics: Controlling automated sorting systems and providing an interface for manual override in warehouse environments.

• Cleanroom and Laboratory Equipment: Providing a sterile, easy-to-clean interface for controlling sensitive chemical or pharmaceutical processes.

Important Precautions

To ensure the longevity of the screen and the safety of the system, the following precautions are required:

• Screen Care: Never use sharp objects such as screwdrivers or pens to touch the screen, as this can puncture the protective film and damage the touch sensors.

• Cleaning Method: Use a soft, dry cloth or a cloth dampened with a neutral detergent. Avoid using organic solvents like thinners or benzene, which can discolor or warp the plastic casing.

• Mounting Orientation: Install the unit within the specified angle (usually 0 to 30 degrees from vertical) to ensure proper heat dissipation and prevent the internal temperature from rising.

• Backlight Replacement: While modern LED backlights have a long life (often 50,000 hours), brightness may fade over time. Check the manual for specific replacement procedures if the screen becomes difficult to read.

• Safe Operation: Important control functions (like Emergency Stops) should always be implemented with physical hard-wired buttons rather than relying solely on a touchscreen software button.

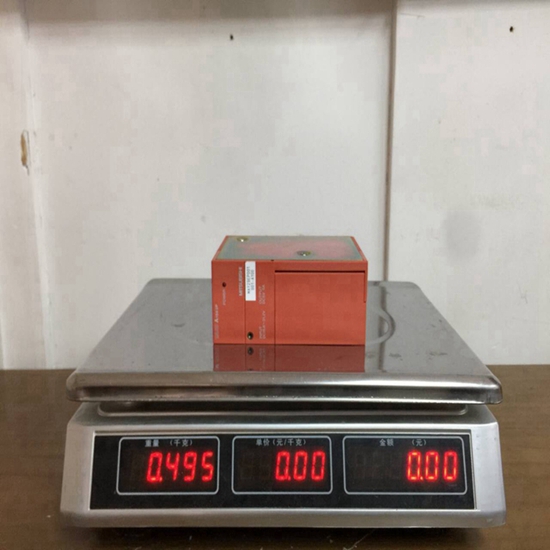

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
