960440-03 Emerson Output Module

Product  Description：

Emerson Output Modules, a cornerstone of the DeltaV and Ovation Distributed Control Systems (DCS), are designed to convert digital commands from the control processor into electrical signals that drive field equipment. These modules act as the "muscles" of the automation system, enabling the controller to manipulate physical processes by operating valves, motors, relays, and indicators with high reliability and precision.

Product Parameters

The technical specifications for Emerson output modules vary depending on whether the signal is discrete (on/off) or analog (continuous):

• Channel Density: Typically offered in 8-channel or 16-channel versions for high-power outputs, and up to 32 channels for low-power signaling.

• Output Signal Types: Includes 24V DC discrete outputs, 120/230V AC discrete outputs, and 4-20 mA analog outputs (often with HART communication).

• Load Capacity: Discrete modules are usually rated for 0.5A to 2.0A per channel, while relay modules can handle higher current switching for motor starters.

• Update Rate: High-speed processing allows for output refresh rates in the millisecond range, ensuring rapid response to process changes.

• Isolation: Built-in galvanic isolation (typically 1500V AC) protects the system backplane from field-side electrical surges and noise.

• HART Support: Analog output modules often include an integrated HART modem for bidirectional communication with smart field instruments.

Product Advantages

Emerson output modules are engineered for "mission-critical" environments where downtime is not an option:

• Predictive Diagnostics: Modern Emerson modules can detect field-side issues such as open circuits, short circuits, and stuck-on conditions before they cause a process trip.

• Hot-Swappable Capability: Like most Emerson I/O, these modules can be removed and replaced while the controller is running, facilitating maintenance without shutting down the plant.

• Redundancy Support: Modules can be installed in redundant pairs. If the primary module fails, the standby unit takes over control seamlessly without affecting the output state.

• Advanced Safety Integration: Specialized "S-series" or SIS (Safety Instrumented System) modules are available for use in SIL 3 safety loops, providing certified protection for emergency shutdowns.

• Electronic Marshalling (CHARMs): Emerson’s unique CHARM technology allows any signal type to be landed on any terminal, greatly simplifying wiring and reducing the footprint of the control room.

Product Applications

These modules provide the necessary interface for controlling a wide variety of industrial equipment:

• Valve Actuation: Driving I/P (current-to-pressure) transducers or solenoids to position control valves in oil and gas pipelines or chemical plants.

• Motor Control: Sending start/stop commands to Variable Frequency Drives (VFDs) and Motor Control Centers (MCCs) in water treatment or power facilities.

• Alarm Signaling: Activating sirens, strobe lights, and annunciator panels to alert operators of abnormal process conditions.

• Heater Regulation: Providing the control signal for Solid State Relays (SSRs) to manage temperature in industrial furnaces and reactors.

• Power Distribution: Operating circuit breakers and switchgear in electrical substations managed by the Ovation system.

Important Precautions

To ensure safe operation and prevent equipment damage, the following precautions should be strictly observed:

• Load Matching: Ensure the total current draw of the connected field devices does not exceed the module's per-channel or per-module rating to prevent overheating.

• Inductive Load Suppression: When driving inductive loads like large solenoid valves or relays, use external flyback diodes (for DC) or varistors (for AC) to prevent voltage spikes from damaging the output transistors.

• External Power Monitoring: Many output modules require an external 24V DC field power supply. Ensure this power is clean, regulated, and fused correctly to prevent catastrophic module failure.

• Interlock Verification: Before forcing an output manually through the software during commissioning, always verify that it is safe for the physical equipment to move or activate.

• Conformal Coating Integrity: In corrosive environments, ensure the module is a "G3" rated version. Avoid scratching the PCB surface, as damage to the protective coating can lead to premature failure due to chemical corrosion.

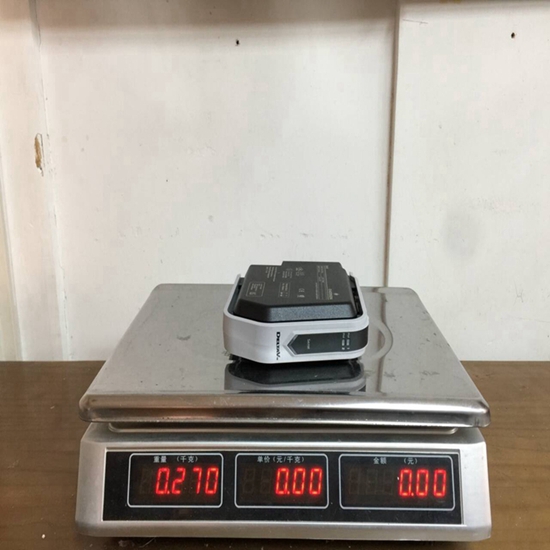

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：

Emerson 1X00416H01

Emerson VE4033S2B1

Emerson IC660TSS100L

Emerson IC31203G01

Emerson 1B30035H01

Emerson 1C31238H01

Emerson SE5009

Emerson SE4026

Emerson KJ3004X1-BA1

Emerson FX-316

Emerson 5X00481G01

Emerson 5X00226G03

Emerson 1C31122G01

Emerson 1C31179G01

Emerson 1C31219G01

Emerson 5X00419G02

Emerson 1C31203G01

Emerson 5X00106G01

Emerson 5X00062G01

Emerson 5X00501G01

Emerson 5X00357G04

Emerson 1C31147G01

Emerson 1C31169G02

Emerson 1C31125G02

Emerson 1C31223G01

Emerson 1C31232G01

Emerson IC31238H01

Emerson SE4003S2B2

Emerson ic695cmm002

Emerson ic694mdl660

Emerson ic694mdl758

Emerson ic694alg233

Emerson ic695alg608

Emerson ic694alg392

Emerson 5X00300G02

Emerson 020-0162S

Emerson 2700-R11DEFEZZZPK

Emerson KJ3223X1-BA1

Emerson 5X00502G01

Emerson 1C31206G01

Emerson DVC-6200

Emerson 1C31150G01
