8MSA3L.E2-73 B&R

8MSA3L.E2-73 B&R Input module

Product  Description：

The 8MSA3L.E2-73 is part of a family of motors known for their excellent power-to-weight ratio and low moment of inertia. The "8MSA" designation indicates its series, while "3L" refers to the specific frame size and length. It features high-quality neodymium magnets and a specialized winding design to ensure smooth rotation and high torque density. This specific model is typically equipped with high-resolution feedback systems to integrate seamlessly with the B&R ACOPOS drive family.

Product Parameters

• Motor Type: 8MSA Synchronous Servo Motor

• Frame Size: 3 (Physical dimensions approximately $70 \text{ mm}$ flange size)

• Stack Length: L (Long version for increased torque capacity)

• Rated Speed: Generally rated up to $6000 \text{ RPM}$ depending on drive voltage

• Rated Voltage: Optimized for $400-480 \text{ VAC}$ operation

• Stall Torque: Typically around $1.9 \text{ Nm}$ to $2.2 \text{ Nm}$ (refer to specific winding data for precise nominal values)

• Feedback System: EnDat 2.2 inductive encoder or similar (specified by the .E2 suffix)

• Shaft Type: Plain shaft or shaft with keyway depending on specific sub-configuration

• Cooling: Natural convection (self-cooling)

• Protection Class: IP64 as standard, with options for IP65 (excluding shaft exit)

• Brake Option: This variant may come with or without an integrated permanent magnet holding brake

Product Advantages

• High Dynamics: The low rotor moment of inertia allows for extremely high acceleration and deceleration rates, making it ideal for fast-cycling machines.

• Precision Control: Integrated high-resolution encoders provide exceptional positioning accuracy and velocity ripple reduction.

• Compact Footprint: The high torque density allows for a smaller motor footprint compared to standard induction or lower-tier servo motors, saving valuable machine space.

• Reliability: Built with high-grade components, including robust bearings and thermal sensors (KTY or PT1000), to ensure a long service life even in demanding industrial cycles.

• Seamless Integration: Designed specifically to work with B&R ACOPOS drives, allowing for automatic motor identification and simplified commissioning via the "Embedded Parameter Chip."

Important Considerations and Precautions

• Thermal Management: While the motor includes internal temperature sensors, ensure adequate airflow around the motor housing to prevent overheating during high-duty cycles.

• Shaft Loading: Do not exceed the maximum radial and axial forces specified in the technical manual, as excessive force can lead to premature bearing failure.

• Cabling: Use original B&R pre-assembled cables to ensure electromagnetic compatibility (EMC) and to prevent signal interference with the encoder.

• Installation: Ensure the mounting surface is flat and vibration-free. Avoid hitting the shaft during installation (e.g., with a hammer), as this can damage the internal high-precision encoder.

• Brake Usage: If equipped with a holding brake, remember that it is designed only to hold the motor in a stationary position and should not be used for dynamic braking except in emergency situations.

Product Applications

The 8MSA3L.E2-73 is versatile and finds its place in various high-tech sectors:

• Packaging Machinery: High-speed labeling, filling, and pick-and-place operations where rapid start-stop cycles are required.

• Printing Industry: Precise tension control and synchronization of print rollers.

• Plastic Processing: Accurate positioning for injection molding auxiliary axes and blow molding systems.

• Textile Machines: Coordination of complex movements in weaving or knitting equipment.

• General Motion Control: CNC machines, laboratory automation, and robotic arms requiring compact, high-torque actuators.

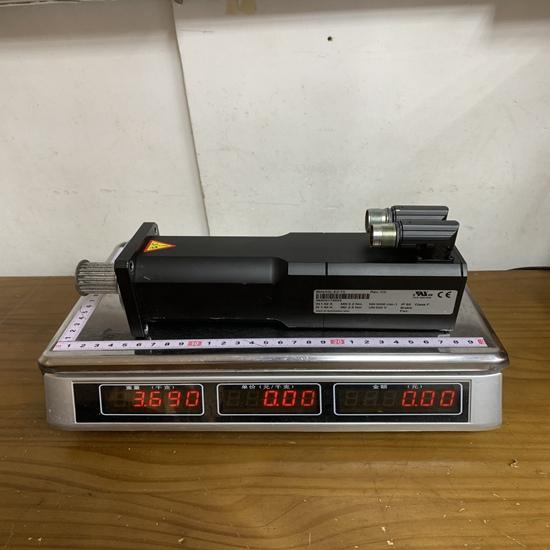

The structure and details of the product：
