87TS01I-E GJR2368900R2200 ABB Bailey

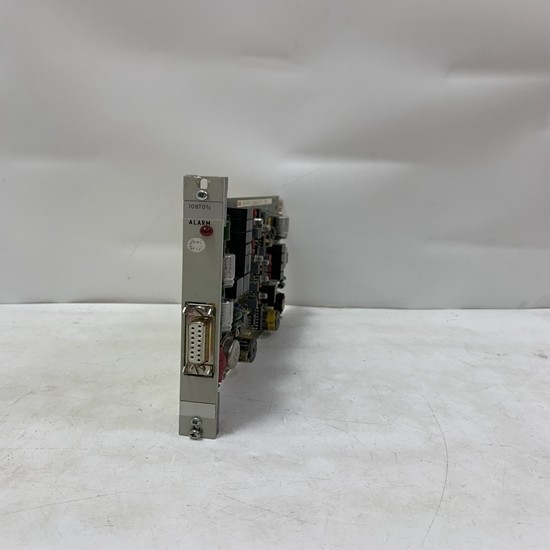

87TS01I-E GJR2368900R2200 ABB Bailey central processing unit

Product  Description：

• • The ABB Bailey Central Processing Unit (CPU) is the brain of the ABB Bailey Infi-90 and Symphony Plus distributed control systems (DCS). It's a high-performance, microprocessor-based module that executes control strategies, manages system communications, and processes I/O data. The CPU handles all the complex logic, calculations, and sequencing required to control industrial processes, ensuring reliable and efficient plant operations.



    Key Functions



    • Logic Execution: Runs the user-defined control programs, including PID loops, ladder logic, and function block diagrams.

    • Communication Management: Manages data flow between the CPU, I/O modules, operator workstations, and other system components.

    • Data Processing: Collects data from various I/O modules, performs calculations, and updates outputs based on the control strategy.

    • System Diagnostics: Monitors the health of the system and its modules, providing diagnostic information and error logs.

    • Time Synchronization: Ensures all system components are synchronized to a common time base.



    Product Parameters (Typical)



    Parameters vary significantly depending on the specific model (e.g., IMASI23, IMASI33, HPC800).

    • Processor Type: High-speed, industrial-grade microprocessor.

    • Memory:

      • Program Memory: Varies by model, typically ranging from 256KB to several MB.

      • Data Memory: Dedicated memory for process data, variables, and history.

    • Communication Ports:

      • Infi-Net/P-Net: Ports for proprietary control network communication.

      • Ethernet/Serial: Ports for connecting to external systems or programming terminals.

    • Scan Time: The time it takes to execute the control program once. Typically in the range of milliseconds, crucial for real-time control.

    • Power Consumption: Varies by model, but generally low to moderate.

    • Operating Temperature: Wide industrial range, typically from 0°C to 60°C.

    • Redundancy: Many CPU models support hot-swappable redundancy for high availability, allowing a backup CPU to take over instantly if the primary unit fails.

    • Physical Form Factor: A robust module designed to fit into a standard ABB Bailey mounting rack.



    Product Advantages



    • High Performance: Designed for demanding industrial applications, offering fast scan times and robust processing power.

    • Reliability and Redundancy: Built for continuous operation with support for redundant configurations, minimizing downtime and ensuring process safety.

    • Seamless Integration: Integrates perfectly within the ABB Bailey DCS architecture, simplifying configuration and maintenance.

    • Scalability: The system can be easily expanded by adding more CPUs or I/O modules to handle growing process demands.

    • Longevity: Designed to be rugged and durable, with a long service life in harsh industrial environments.

    • Comprehensive Diagnostics: Provides detailed diagnostic information to help operators and maintenance personnel quickly identify and resolve issues.



    Precautions



    • Compatibility: Always ensure the CPU model is compatible with your specific ABB Bailey system, including the rack, power supplies, and I/O modules.

    • ESD Handling: Handle the module with care, using proper electrostatic discharge (ESD) precautions to prevent damage to sensitive electronic components.

    • Power Supply: Make sure the power supply in the rack is stable and provides the correct voltage and current.

    • Configuration: Proper configuration via the system's engineering software is essential for correct operation. Incorrect settings can lead to system instability or incorrect control actions.

    • Environmental Conditions: Operate the module within the specified temperature and humidity ranges to prevent overheating or component damage.

    • Firmware Updates: When updating the firmware, follow the manufacturer's instructions precisely to avoid corrupting the CPU.



    Product Applications



    ABB Bailey CPUs are used in a wide range of mission-critical industrial applications where reliable process control is essential.

    • Power Generation: Used in thermal, hydro, and nuclear power plants to control boilers, turbines, generators, and auxiliary systems.

    • Oil & Gas: Deployed in refineries, pipelines, and offshore platforms for process control of distillation, cracking, and pumping operations.

    • Chemicals: Controls complex chemical processes, batch reactors, and mixing operations.

    • Pulp & Paper: Manages the entire papermaking process, from pulp preparation to drying and finishing.

    • Metals & Mining: Used to automate and control operations in steel mills, aluminum smelters, and mining facilities.

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
