700-F400A1 Allen-Bradley

700-F400A1 Allen-Bradley I / O module

Product  Description：

The 700-F400A1 is part of the Allen-Bradley Bulletin 700-F series. It features a 4-pole configuration where all four poles are Normally Open (4 NO). This relay is engineered for long mechanical and electrical life, providing a dependable interface between low-power control circuits and higher-power loads. The "A1" suffix in the part number indicates the specific coil voltage rating required to energize the relay.

Product Parameters

• Contact Configuration: 4 NO (Normally Open)

• Coil Voltage: $120 \text{ VAC}$ at $50/60 \text{ Hz}$ (standard North American control voltage)

• Contact Rating: $10 \text{ A}$ (Thermal current $I_{th}$)

• Standard Compliance: IEC/EN 60947-1, 60947-5-1, and UL 508

• Mounting Style: Designed for $35 \text{ mm}$ DIN rail mounting or traditional screw mounting

• Terminal Type: Conventional screw terminals for secure wire termination

• Operating Temperature: Typically rated for $-20^\circ\text{C}$ to $+60^\circ\text{C}$

• Degree of Protection: IP20 finger-safe terminals to prevent accidental contact

Product Advantages

• Space Efficiency: The miniature design allows for high-density mounting on DIN rails, which is critical for modern, compact control panels where space is at a premium.

• Versatility: With its $10 \text{ A}$ rating, it can handle a wide variety of loads, from small solenoids and pilot lights to larger contactor coils.

• Reliability: Gold-plated bifurcated contact options are available in this series for low-energy applications, though this standard model is built for robust general-purpose switching.

• Modular Accessories: The 700-F series supports a range of snap-on accessories, including auxiliary contact blocks, timing modules, and surge suppressors, allowing for easy customization.

• High-Speed Operation: Fast response times for both pick-up and drop-out make it suitable for applications requiring precise timing and sequencing.

Important Considerations and Precautions

• Coil Voltage Matching: Ensure the supply voltage matches the $120 \text{ VAC}$ rating exactly. Applying $24 \text{ VDC}$ or $240 \text{ VAC}$ will lead to failure to operate or permanent coil burnout.

• Load Limits: Do not exceed the $10 \text{ A}$ continuous current rating. For highly inductive loads (like large motors), consider the AC-15 or DC-13 utilization categories to ensure the contacts do not weld or pit prematurely.

• Surge Protection: When switching inductive loads, it is highly recommended to install a surge suppressor (RC link or varistor) across the coil to protect sensitive PLC outputs from voltage spikes.

• Mounting Orientation: While it can be mounted in multiple positions, ensure there is adequate ventilation around the relay to prevent heat buildup during continuous duty.

• Wiring Integrity: Periodically check screw terminal tightness, especially in environments subject to high vibration, to prevent arcing and localized heating.

Product Applications

The 700-F400A1 is a "workhorse" relay used across various industrial sectors for logic control and load isolation.

• PLC Interface: Acting as an interposing relay to allow low-power PLC outputs to control larger contactors or field devices that require more current than the PLC card can provide.

• Safety Logic: Used in non-safety-critical interlocking circuits to ensure specific machine conditions are met before allowing further operations.

• Lighting and Heating Control: Managing small lighting banks or resistive heating elements in industrial climate control systems.

• Motor Control Centers (MCC): Providing auxiliary logic signals for motor starters and sequence control in automated assembly lines.

• Pump and Valve Sequencing: Managing the timing and operational order of fluid control systems in water treatment or manufacturing processes.

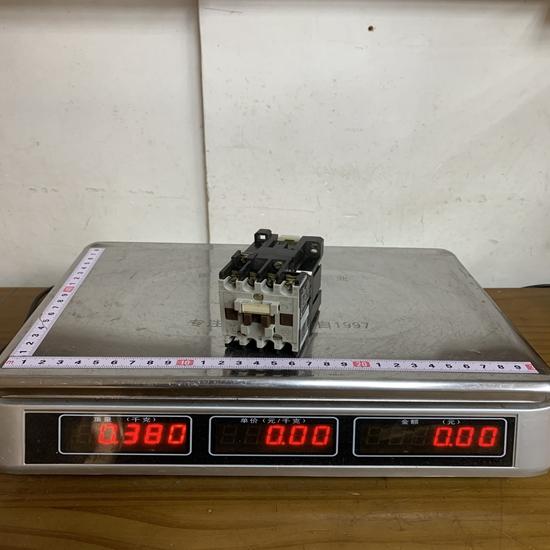

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year
