6GK5213-3BB00-2AB2 SIEMENS

6GK5213-3BB00-2AB2 SIEMENS Basis unit

Product  Description：

The Siemens 6GK5213-3BB00-2AB2 is part of the SCALANCE XC-200 series, specifically the SCALANCE XC213-3 model. It is a high-performance, industrial Managed Layer 2 Ethernet Switch designed for demanding network environments. This device is optimized for building Industrial Ethernet networks in line topologies, star topologies, or redundant ring structures, offering robust connectivity for both copper and fiber optic cables.

Product Specifications

• Product Type: SCALANCE XC213-3 Managed Layer 2 IE Switch.

• Interfaces: Features a total of 13 ports. This includes 10 RJ45 ports (10/100 Mbps) for copper connections and 3 ST/BFOC ports (100 Mbps) for multimode fiber optic cables.

• Transmission Rate: Supports 10 Mbps and 100 Mbps.

• Power Supply: Redundant 24 V DC power supply inputs (ranging from 9.6 V to 31.2 V DC).

• Diagnostic Port: Includes one RJ45 console port for local management and configuration.

• Storage Medium: Features a C-PLUG slot for optional configuration storage and easy device replacement.

• Mounting: Supports standard DIN rail mounting, SIMATIC S7-300 rail mounting, or wall mounting.

• Temperature Range: Operates effectively in extreme conditions from -40°C to +70°C.

• Protection Class: IP20 rated.

• Dimensions: Approximately 120 mm width, 147 mm height, and 125 mm depth.

Product Advantages

• High Port Density and Versatility: With 10 copper ports and 3 fiber ports, this switch provides significant flexibility for connecting localized devices while allowing for long-distance fiber uplinks.

• Redundancy and Reliability: Supports high-speed redundancy protocols like MRP (Media Redundancy Protocol) and HRP (High Speed Redundancy Protocol), ensuring minimal downtime in the event of a cable break.

• Profinet Optimization: It is PROFINET IO integrated, meaning it supports PROFINET diagnostics and can be seamlessly incorporated into the TIA (Totally Integrated Automation) Portal for streamlined engineering.

• Industrial Hardening: Designed for harsh environments, it features a rugged metal housing and a wide operating temperature range, making it suitable for outdoor cabinets or hot factory floors.

• Comprehensive Security: Includes integrated security features such as ACLs (Access Control Lists), IEEE 802.1X, and port security to protect the industrial network from unauthorized access.

Important Considerations and Precautions

• Fiber Optic Handling: When using the ST/BFOC ports, ensure the fiber ends are clean. Contamination can lead to significant signal loss. Never look directly into an active fiber optic port to avoid eye injury from laser radiation.

• Redundant Power Connection: For maximum availability, always connect both redundant power supply inputs to independent power sources.

• Grounding: Proper functional grounding of the switch and the DIN rail is mandatory to ensure electromagnetic compatibility (EMC) and protect against electrical surges.

• C-PLUG Usage: While optional, using a C-PLUG is highly recommended. In the event of a hardware failure, you can simply swap the C-PLUG into a new unit to restore all configurations without needing a PC.

• Firmware Updates: Regularly check for Siemens security advisories and firmware updates to ensure the device is protected against the latest cybersecurity vulnerabilities.

Product Applications

The SCALANCE XC213-3 is primarily used in industrial automation where high reliability and fiber connectivity are required.

• Manufacturing Automation: Connecting PLC systems (like SIMATIC S7-1500) to HMI panels and distributed I/O across large factory floors.

• Infrastructure Projects: Suitable for tunnel automation or traffic control systems where long distances between nodes require fiber optic transmission.

• Energy and Water Management: Used in substations or treatment plants where electrical interference is high and fiber optics provide the necessary isolation.

• Process Industry: Often found in chemical or oil and gas applications within control rooms to manage high volumes of data traffic from field devices.

• Maritime and Transportation: Due to its various certifications, it can be used in shipbuilding and rail applications where vibration and temperature fluctuations are common.

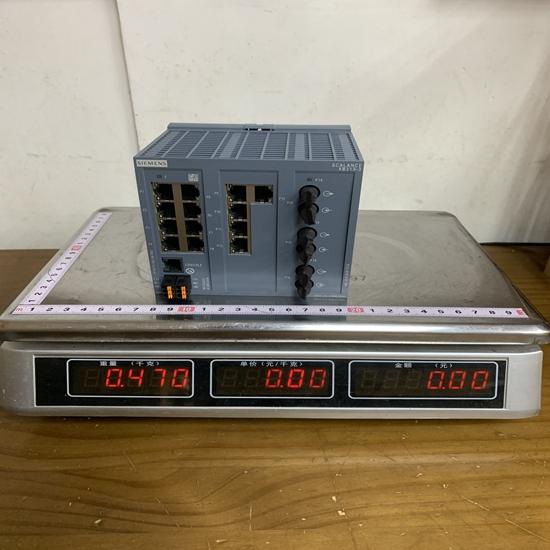

The structure and details of the product：
